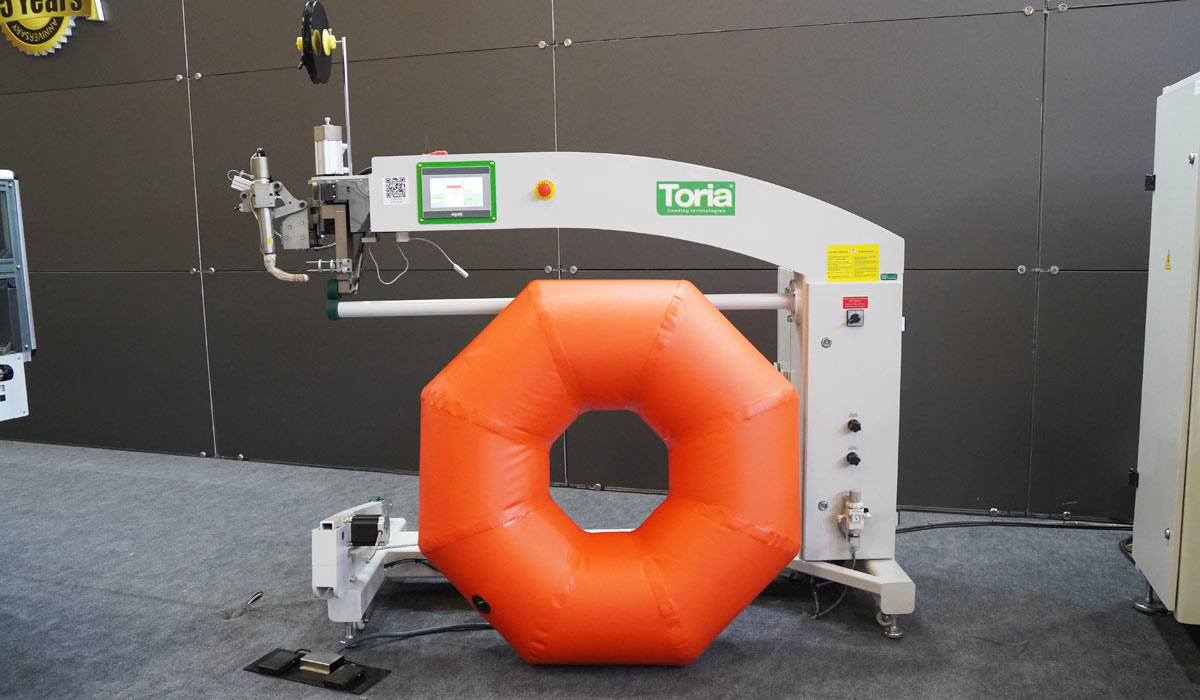

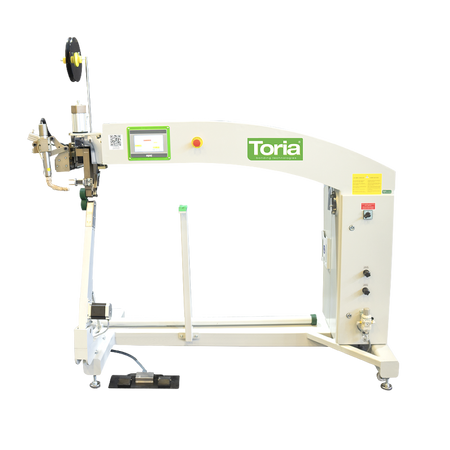

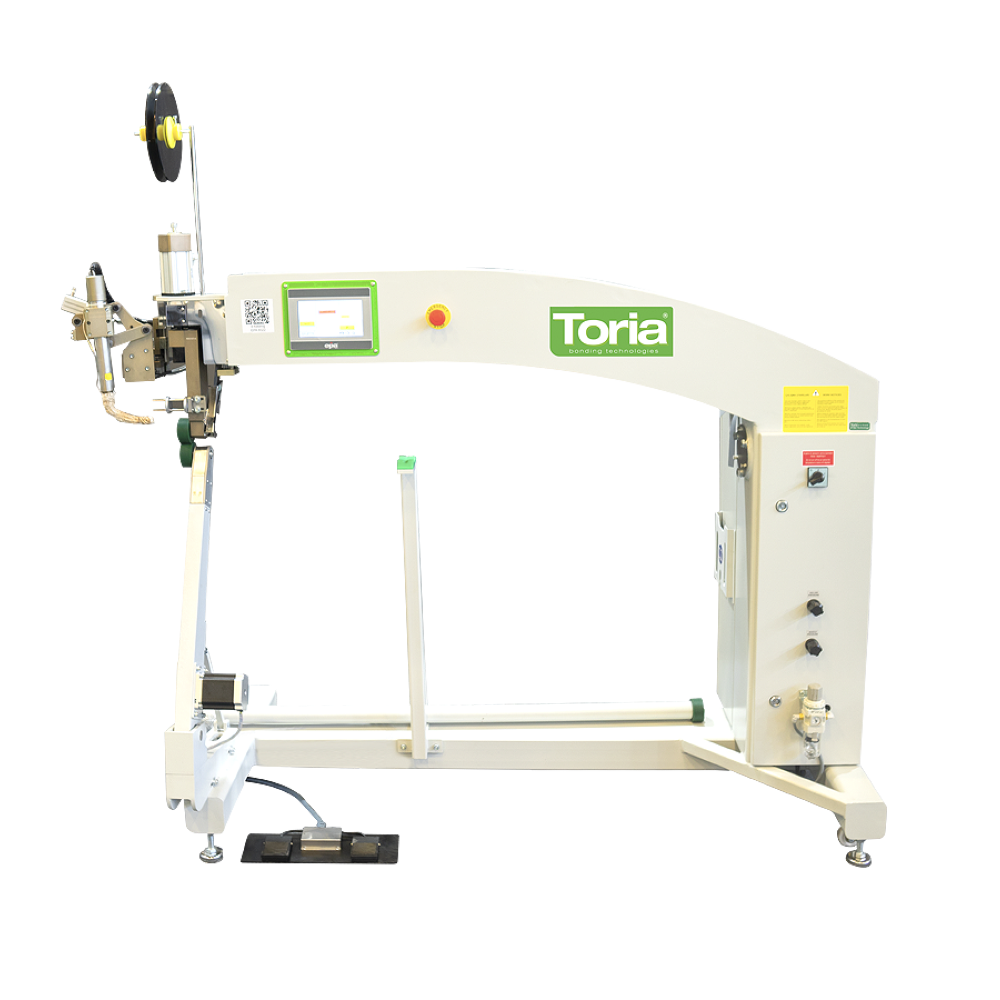

Engineered for heavy-duty PVC products like inflatable boats and tents, the Toria 8022 welds airtight seams across 10 stored program recipes.
Key Features
- Excellent results on all types of fabrics, especially PVC and its derivatives. Superb results in inflatable boat PVC welding applications.
- Air and waterproof adhesive applications for challenging applications. Three independently adjustable attachments: circular closure, side closure, strip attachment.
- Touch screen for adjustable multi-program structure, 10 different recipes with independently adjustable speed, heat, and time parameters.
- The speeds of the upper/lower differentials can be automatically adjusted independently. Adjustable belt slots.
- High-tech resistance that can be set up to 550°C and reacts quickly. Lossless and accurate temperature measurement by measuring the heat from the air outlet.
- High-tech alarm and information system. Digital pressure level visible on the screen. Easy adaptation to products thanks to precisely adjustable pressure settings.

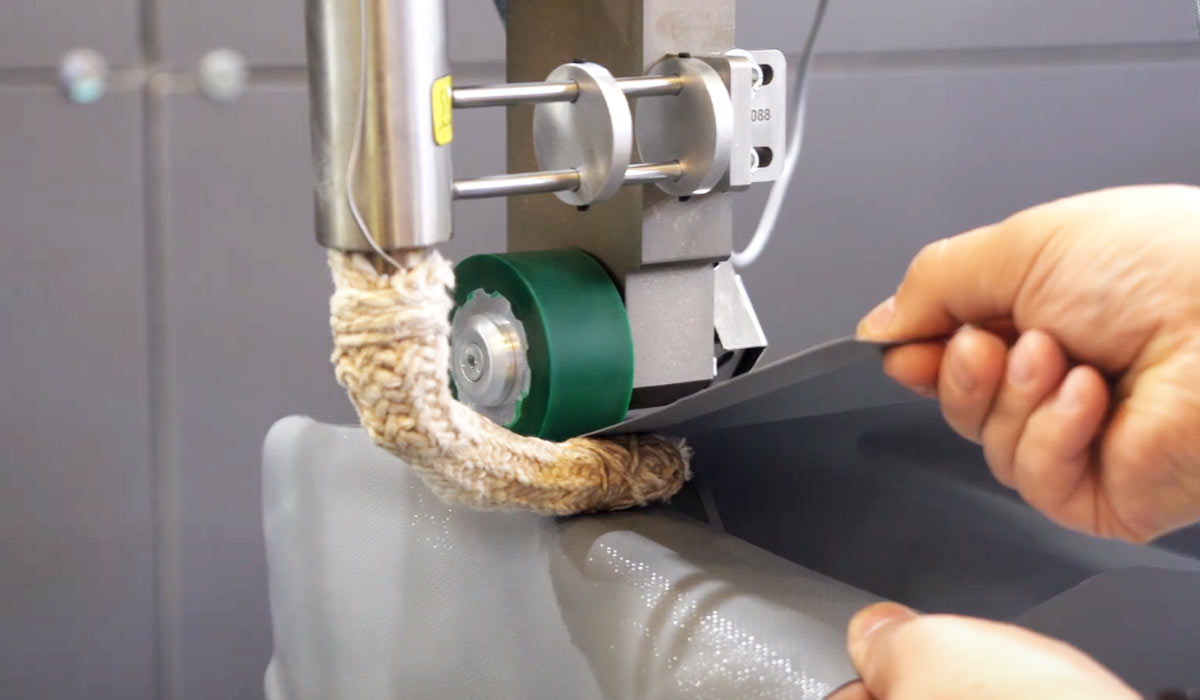

- 3-axis adjustable hot air nozzle. Changeable printing rollers and nozzle tips between 25mm-80mm.
- The machine is PLC controlled.
- The machine has a CE certificate.
Specifications
- Power 4,100 watt
- Voltage 220V-50Hz
- Air Pressure 2-6 bar
- Speed 10 m/min
- Weight 320 kg
- Dimensions 700x1720x1850 mm
- Max Temp 550 C
