Morgan Tecnica

Morgan Tecnica Unwinder 270

Download Brochure

* Please include your shipping location in the comments.

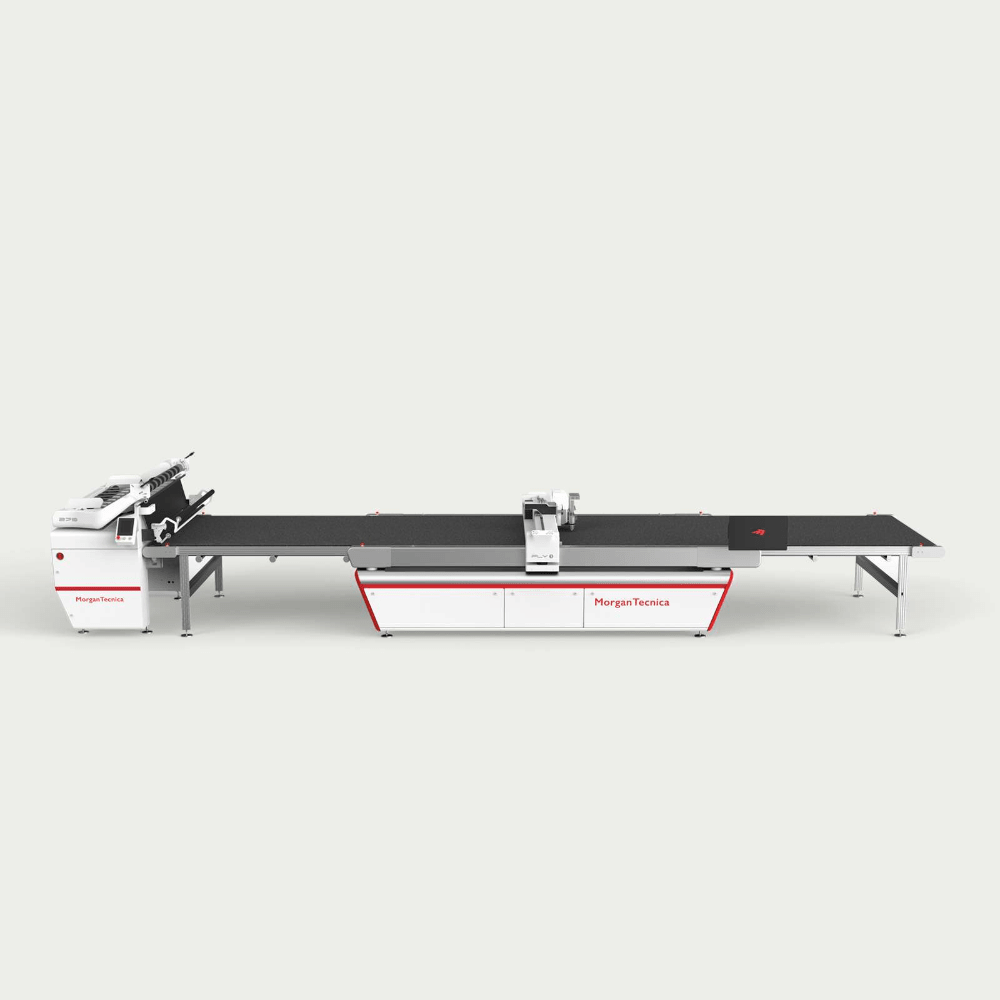

The Morgan Tecnica Unwinder 270 is an automatic unwinder machine specifically engineered to manage fabric feeding for the Ply1 single-ply cutting system. This high-performance machine ensures optimal tension for various materials, from rigid fabrics to delicate soft and elastic goods.

Key Features Include:

  • Ply1 Compatibility: Specifically designed for integration with the Morgan Tecnica Ply1 single-ply cutting system.
  • Material Tension Control: Designed to maintain proper tension across every kind of material.
  • Precision Synchronization: Achieves perfect speed synchronization between the cradle and the cutter's conveyor system.

Hardware Features:

  • Belts Turret: Enhances performance when handling soft and elastic materials.
  • Cradle Adjustment: Includes a position adjustment system to simplify the roll loading process.
  • Friction Reduction: Features a steep and short slider to lower friction during operation.
  • Alignment & Pressing: Equipped with a fabric alignment system and a pressing roller for rigid materials.

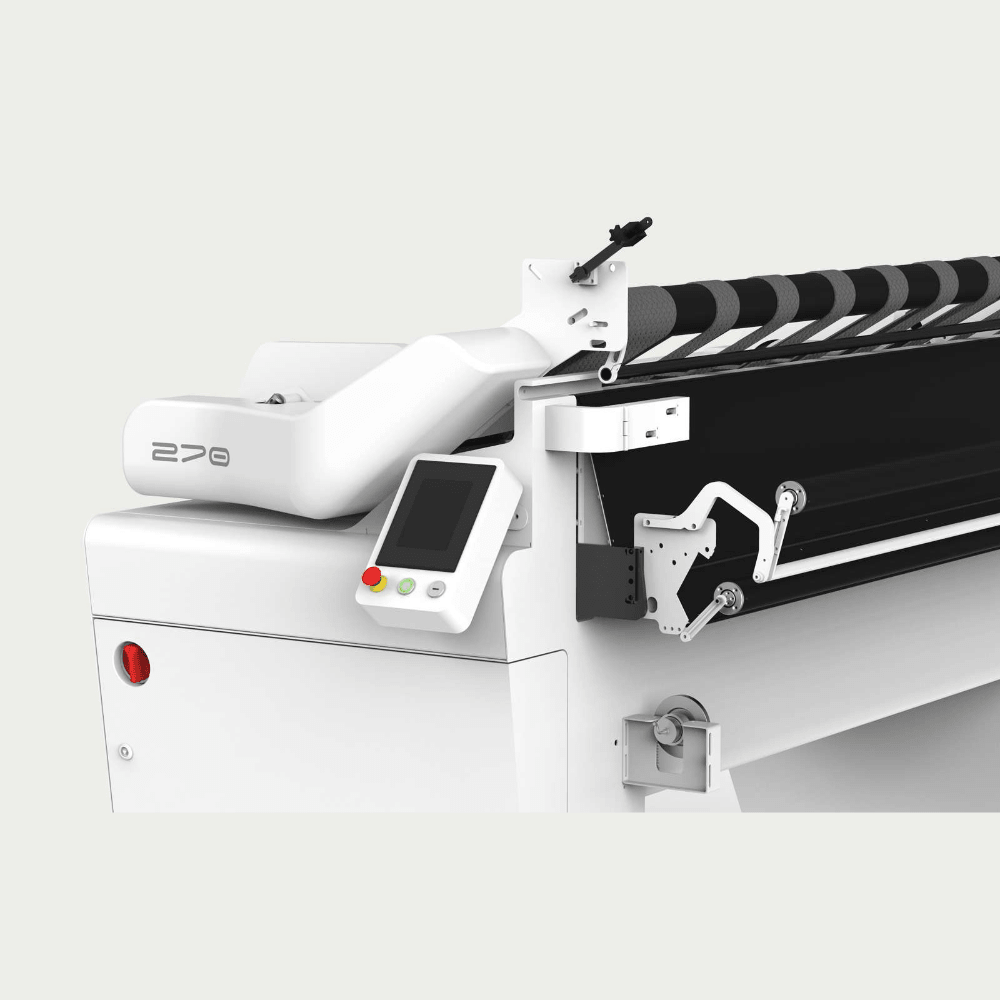

  • Ergonomic Design: Utilizes a vertical screen orientation for improved operator comfort.
  • Ethercat Package: Integrated to eliminate the need for additional wiring.

Software Features:

  • Real-Time Control: Allows for the adjustment of unwinding parameters in real-time.
  • Material Profiling: Supports the registration of specific material profiles for unrolling.
  • Diagnostics: Provides machine status information and diagnostic tools.

Technical Specifications:

  • Unwinding Width: Available in 180 cm, 220 cm, or 280 cm effective widths.
  • Roll Capacity: Supports a maximum roll weight of 80 kg and a maximum diameter of 60 cm.
  • Power Consumption: Average power consumption and installed electrical power of 1 kW.
  • Electrical Requirements: Operates on 400v 3Ph+N 50/60 Hz.
  • Protection Level: Rated at IP 54.

Optionals:

  • Specialty Bars: Includes options for a blowing bar (for rewinding), a spiral bar (for mesh materials), and an antistatic bar.
  • Material Handling: Available with a cutting box, a folded fabric platform, and a reversing roll device
