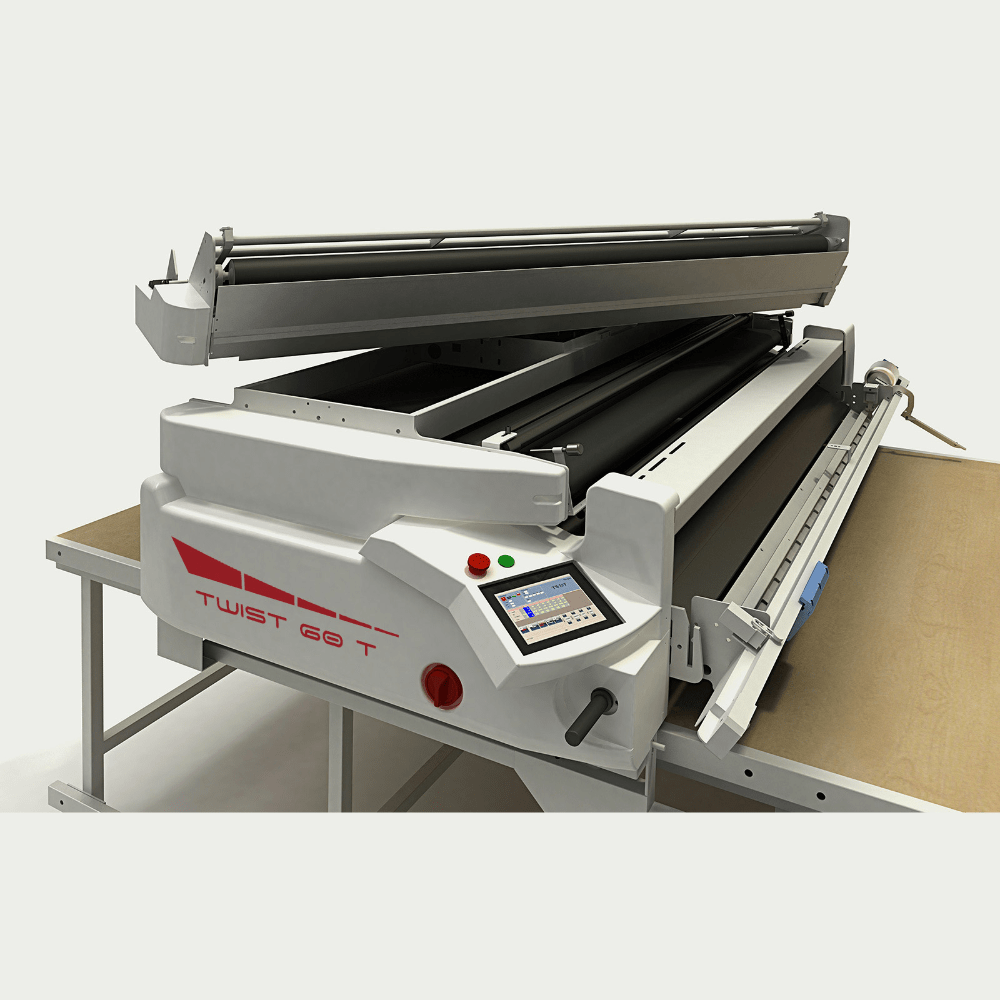

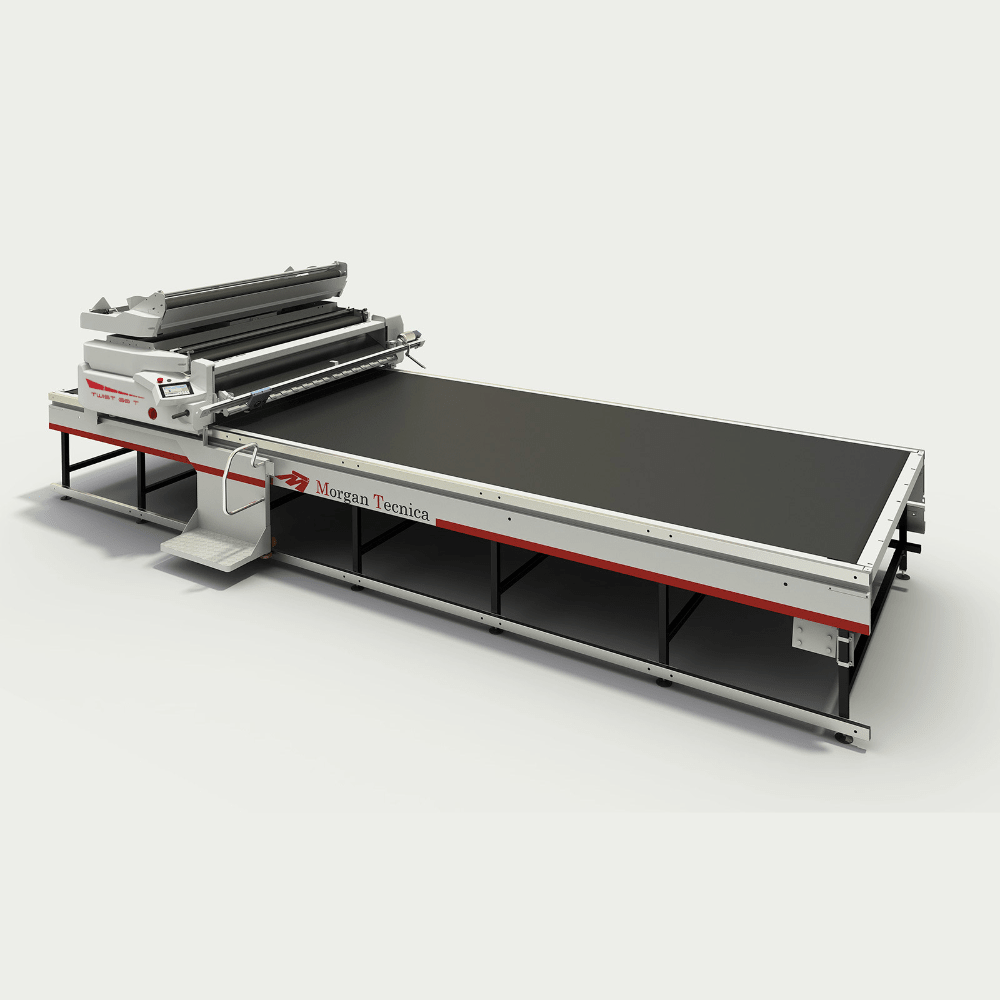

The Twist 60T is an ergonomically designed spreader from Morgan Tecnica specifically engineered for classic menswear production. It utilizes brushless motors and digital electronics to handle irregular step lays and features a cradle turntable with a single solid PVC belt to ensure an even grip across the entire fabric width.
Key Features:
-
Specialized for Menswear: Specifically designed for the high-performance needs of classic menswear production, including face-to-face spreading via an automatic turntable.
-
High-Quality Spreading: Features a tension-free electronic device and automatic edge alignment using photocells to ensure spreading quality.
-
Fabric Efficiency: Includes automatic overlap management and lay headings management to reduce fabric consumption.
-
Advanced Control & Connectivity: Equipped with an interactive touchscreen computer running on Windows, integrated Wi-Fi for remote support, and interfacing capabilities for remote automatic programming and data feedback.
-
Operator Friendly: Designed with an intuitive graphic interface to safeguard operator well-being and simplify machine management.
Technical Specifications:
-
Spreading modes: Face-to-face, face up, zig-zag, and folded
-
Max. spreading speed: 100 m/min
-
Effective spreading width: 180 cm or 230 cm.
-
Max. roll weight: 60 Kg
-
Max. roll diameter: 60 cm
-
Max. lay height: 20 cm (or 15 cm when using the folding device)
-
Average power consumption: 3.5 Kw
-
Installed electrical power: 3.5 Kw
-
Voltage / Frequency: 400 V + 50/60 Hz
-
Environment temperature: 10° - 40°C
-
Humidity: < 95% at 30° without condensation
-
Operating system: Windows
- Wi-Fi: Integrated
