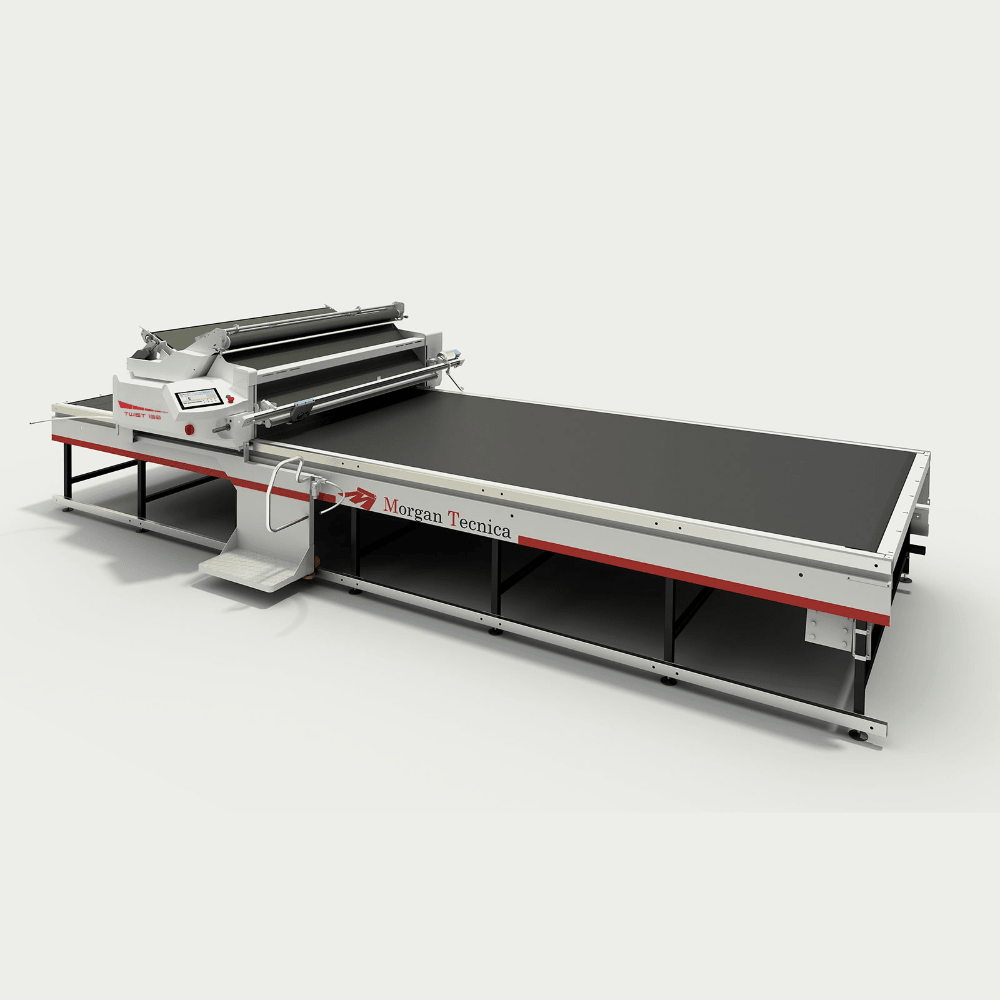

The Morgan Tecnica Twist 100 is a high-performing, compact, and ergonomic spreader designed for any production environment, including those with the most challenging materials. By combining brushless motors with advanced electronic control, the Twist 100 achieves fast yet smooth accelerations to ensure superior spreading quality for elastic, slippery, or irregular materials.
Key Features Include:
-
Precision Control: Utilizes bürstenlose (brushless) motors and OMRON PLC for incredibly fast, smooth accelerations and precise micro-functions.
-
Material Versatility: Specifically engineered for difficult, elastic, or slippery materials and irregular step lays.
-
Fabric Savings: Features overlapping management and roll end optimization to minimize waste.
-
Tension-Free Spreading: An electronically controlled "dancer bar" and encoder ensure a completely tension-free lay without the need for end-catchers.
-
Cradle Turntable: A specialized cradle with a double solid PVC belt guarantees a perfect, even grip across the entire width of the fabric.
- Remote Connectivity: Equipped with Wi-Fi for remote support and integrated with MD COP and MD Analytics for automatic remote programming and data feedback.
Hardware Specifications:
-
Motor System: Digital brushless motors.
-
Diagnosis & Efficiency: Auto-diagnosis system for identifying anomalies and a self-learning system to improve work efficiency.
-
Fabric Handling: Teflon-covered inclined chute to prevent wrinkles and electrostatic effects.
-
Cutting System: Two-way knife for cutting fabric ends with adjustable speed and an automatic lift for the cutting unit.
- Safety & Alignment: Automatic braking system, automatic edge alignment, and automatic stop at the end of a roll.
Software Apps:
-
User Interface: On-board PC Touch featuring a Windows OS and an intuitive, icon-based graphical interface.
-
Customization: Advanced software allows operators to create and save individual fabric profiles to optimize machine setup.
-
Programming: Supports manual or automatic programming of multi-size and multi-color work orders.
-
Versatile Spreading Modes: Can automatically distribute flat, regular step, and irregular step lays, with options for face-up or zig-zag spreading.
- ERP Integration: Provides feedback reports on fabric usage and time in formats compatible with existing company ERP systems.
Technical Specifications:
-
Maximum Roll Weight: 100 kg (60 kg recommended for standard conditions)
-
Fabric Width: 180 cm to 230 cm
-
Max Travel Speed: 100 m/min
-
Max Lay Height: 18 cm
-
Power Consumption: 2500 W (2.5 kW)
- Voltage: 400 V, 3 Phase, 50/60 Hz
