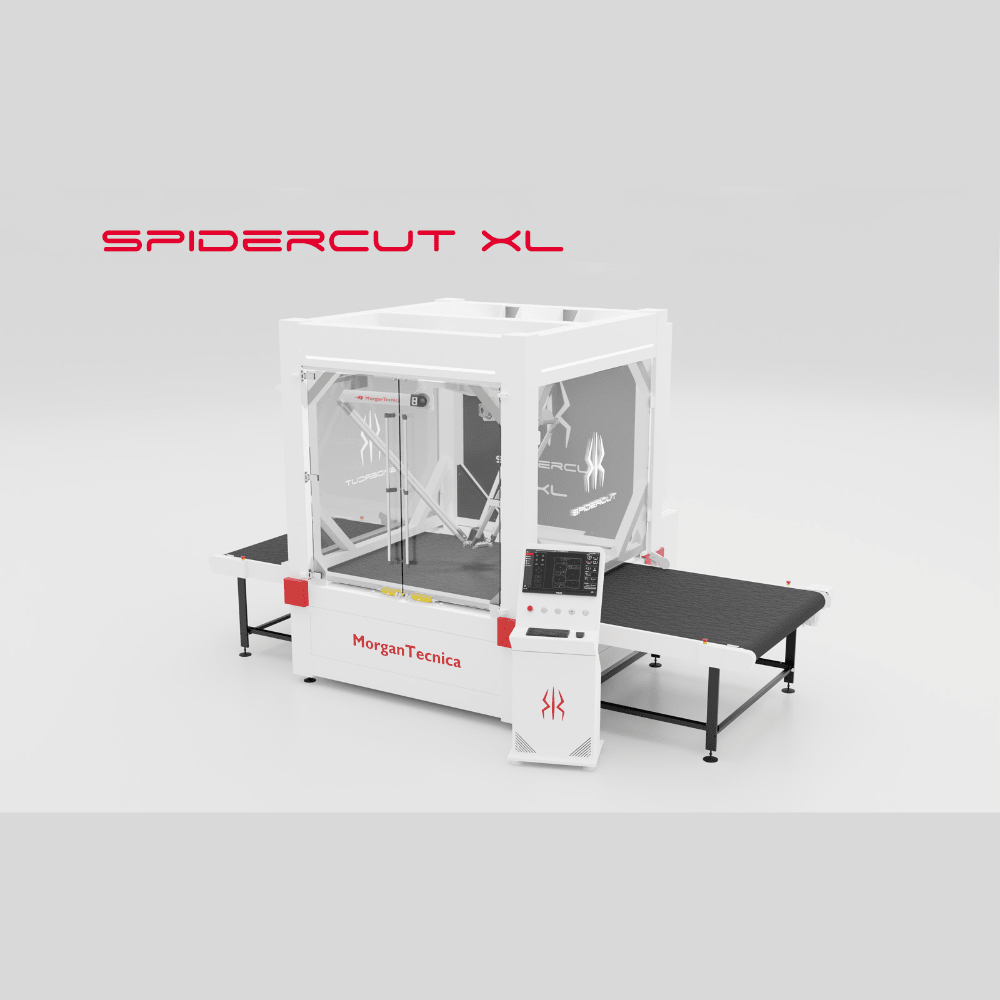

The SPIDERCUT XL by Morgan Tecnica represents a new generation of single-ply cutting machines engineered for precision, efficiency, and sustainable manufacturing. Built with advanced robotic architecture and carbon-fiber arms, this system is designed to scale with your production needs.
Performance & Precision:
-
Peak Acceleration: Achieves up to 9.5 G for rapid processing.
-
High Speed: Features dry movement speeds up to 500 m/min and cutting speeds up to 250 m/min.
-
Tool Power: Tool speeds reach up to 18,000 RPM
- Precision Cutting: Delivers ultra-high precision resulting in perfect edges without damaging fabric or altering material properties and odors.
Advanced Intelligence:
-
Vision System: Equipped with a linear camera and dual-optical automatic calibration.
-
Broad Support: Compatible with all Vision System applications, including CE, PM, RM, Pn, and MP.
Sustainable "Green Solution"
-
Eco-Friendly Operations: Designed for zero emissions, fumes, or odors, resulting in a zero CO2 footprint.
- Resource Efficiency: Operates with minimal energy usage and requires no plastic or paper consumption.
Versatile Applications:
The SPIDERCUT XL is built to perform across various demanding industries:
- Mass production for garments and upholstery.
- Processing of composites and aramid fibers.
Scalable Design:
The SPIDERCUT series features a fully modular and expandable architecture. The XL configuration can be installed side-by-side with other units (available in S, XL, Twin XL, and Poker S) to maximize total production capacity.

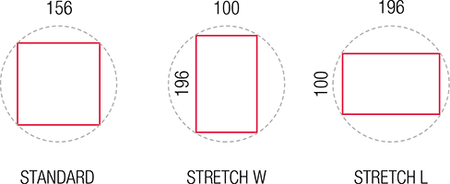

Cutting Windows:
SPIDERCUT XL
SPIDERCUT TWIN XL
SIDERCUT POKER S
