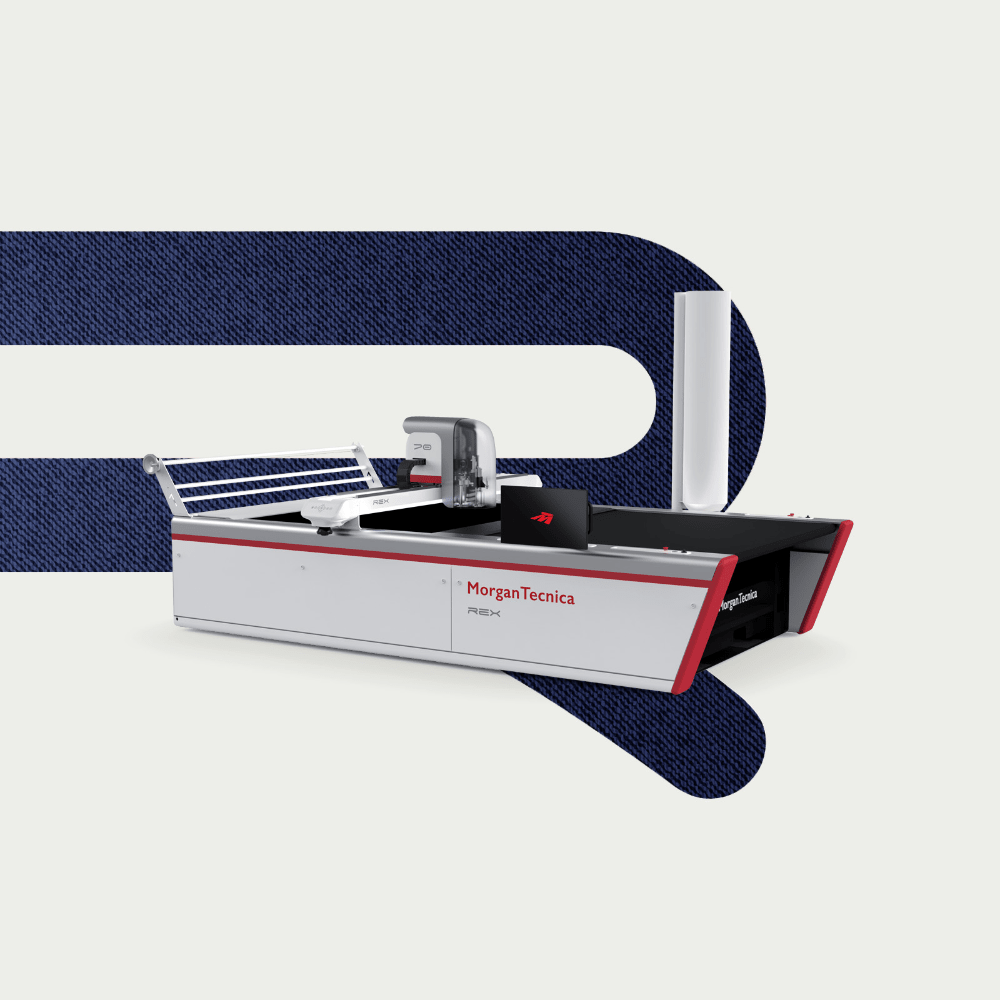

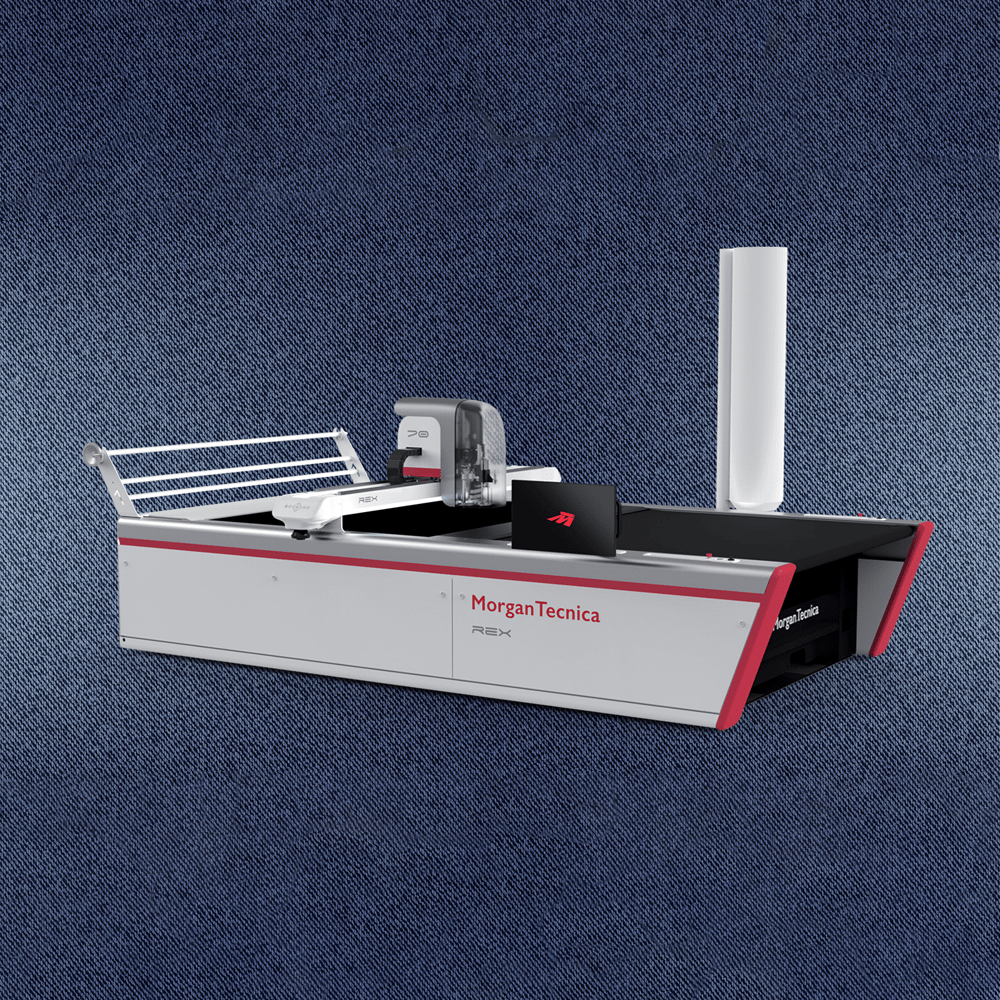

Designed to meet the rigorous demands of today's market, the REX 70 Denim by Morgan Tecnica is an innovative automatic cutter used and trusted by industry leaders like Levi’s. It sets a new standard for high-precision denim processing by delivering superior performance, exceptional quality, and significant energy savings.
Key Features:
-
Eco-Friendly Innovation: A "Green solution" compliant with environmental regulations, REX achieves up to 50% energy savings compared to traditional technologies.
-
Spin Power Energy Extraction: Features a horizontal-axis wind turbine within the machine's chimney to extract energy from expelled airflow for reuse.
-
ERS (Energy Recovery System): Powered by Bosch Rexroth "Smart Energy Mode," this system recovers waste energy during motor deceleration and puts it back into circulation to reduce consumption peaks.
-
Morgan ADB (Active Database): A collaborative tool that allows operators to tag and save complex geometries, creating a shared database of corrective attributes to enhance quality and productivity.
-
Advanced Cutting Head: Offers a 20% increase in blade excursion and peripheral speed, a redesigned sharpening spring system, and a more powerful brushless motor for the sharpening device.
-
Optimized Vacuum System: Includes a smaller depression chamber and a new Rexroth vacuum pump providing 30% higher performance with significantly less noise and 20% to 40% less power consumption.

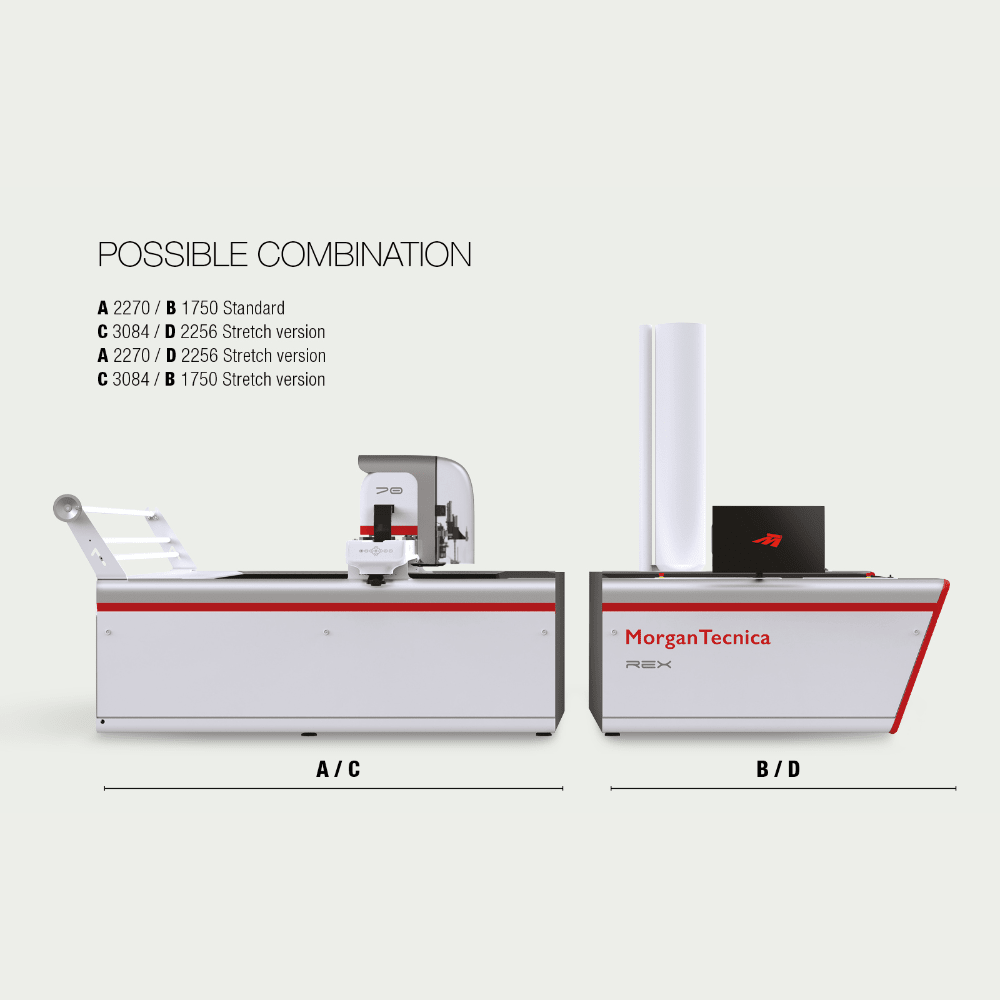

- Logistics Friendly: The machine is designed to be easily divided into two parts, reducing transport handling costs and allowing for air shipment.
Performance:
-
Max. Cutting Thickness: 7 cm compressed (PRO 70 model)
-
Max. Cutting Speed: Up to 65 m/min
-
Max. Positioning Speed: Up to 120 m/min
-
Max. Cutting Acceleration: Up to 8 m/s²
-
Max. Positioning Acceleration: Up to 10 m/s²
- Effective Cutting Window: Width of 180-220 cm and length up to 140 cm
Technical Specifications:
-
Average Power Consumption: 6.1 kW/h
-
Installed Electrical Power: 10 KW + 22 KW
-
Voltage / Frequency: 400 V 3Ph 50/60 Hz
-
Max. Blade Vibration Frequency: 6,000 rpm
-
Blade Dimensions: 3 x 9.3 mm (thickness x length)
-
Operating System: Windows 10
-
File Compatibility: ISO cut file
- Operating Environment: 10°-40°C with humidity < 95% at 30° without condensation
