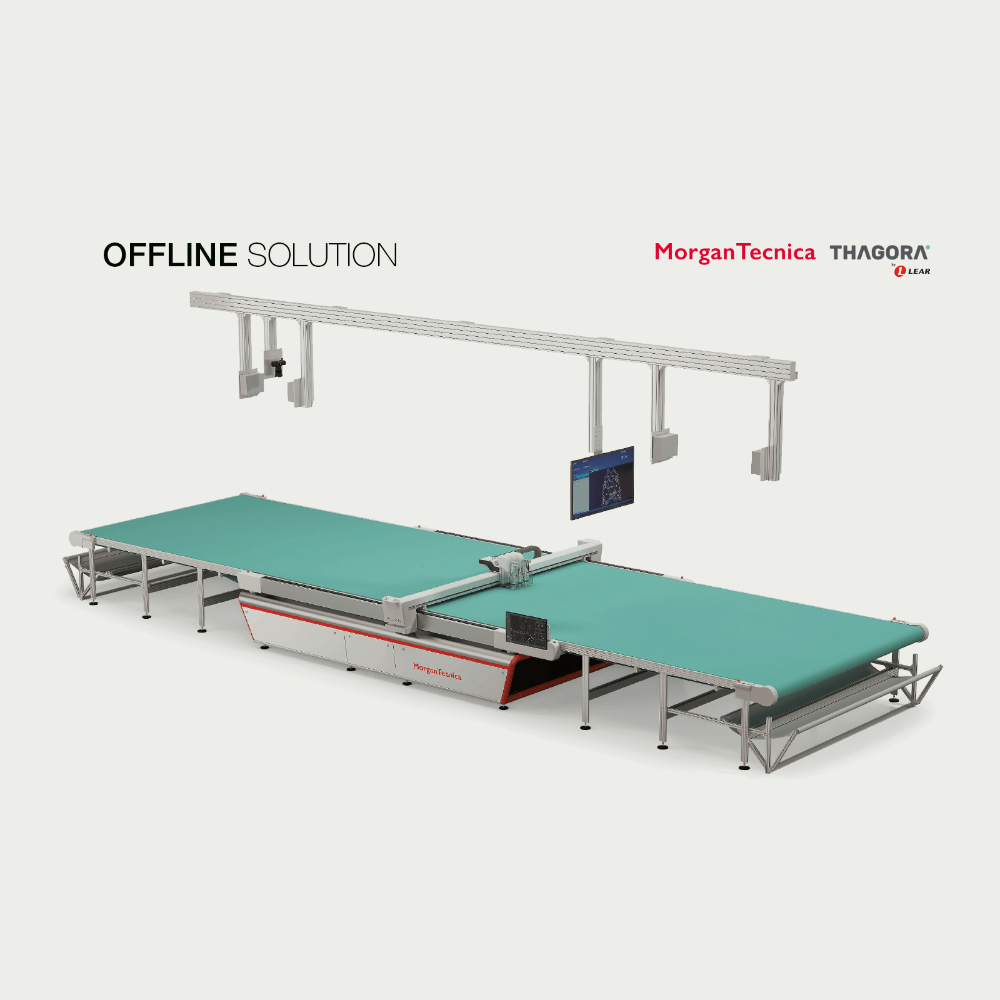

The Morgan Tecnica & Thagora PLY1 is an advanced offline leather cutting solution designed specifically for high-volume furniture and automotive production. This modular and scalable system combines sophisticated Thagora software and hardware with the high-performance Morgan Tecnica PLY1 cutting machine to manage everything from mass production to high-end customized runs.
Key Features:
-
Integrated Workflow: A complete system that manages the entire process from hide delivery and storage to final quality control and parts grouping.
-

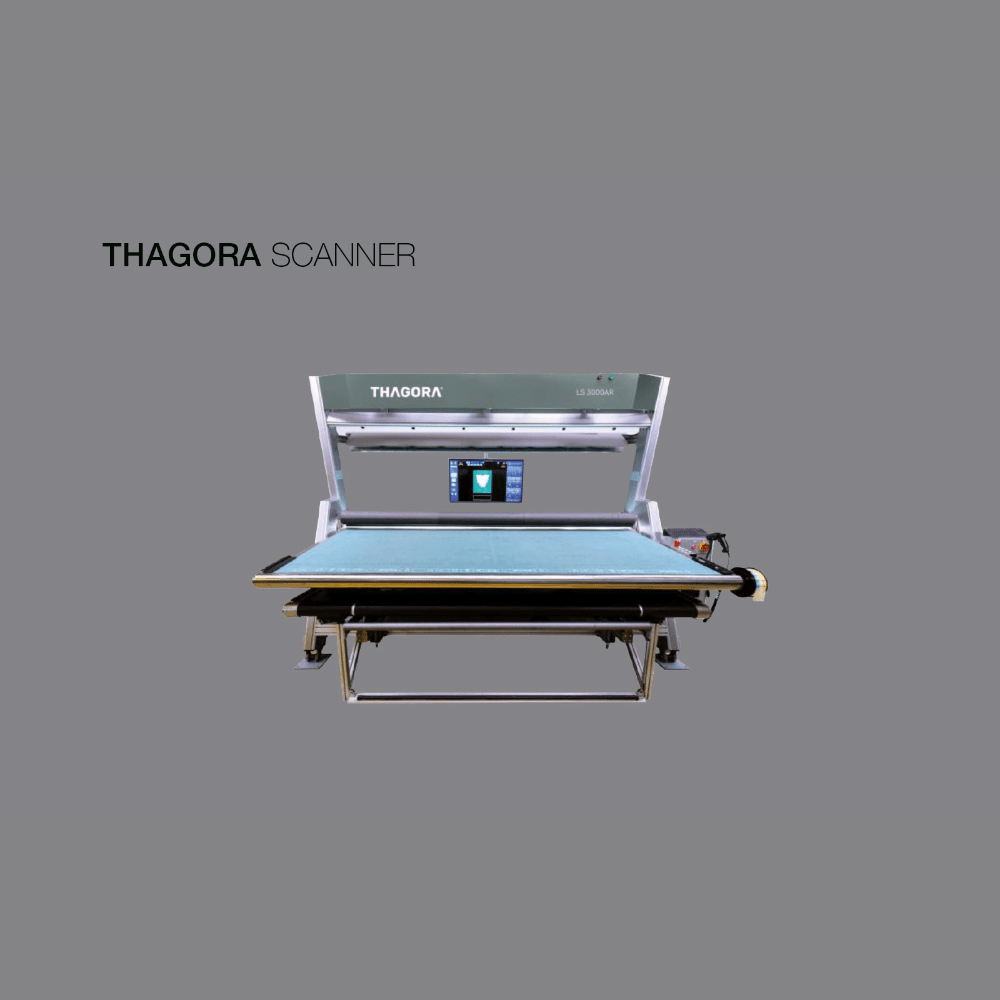

Thagora Leather Scanner: A specialized scanner for mass production that uses augmented reality and digital pens for mark-free hide inspection.
-
Advanced Nesting: Features an automatic multi-hide nesting server that optimizes piece arrangement once hides are digitized.
-
Operator Support: Cutting is supported by augmented reality for hide positioning and an intuitive graphical interface for monitoring.

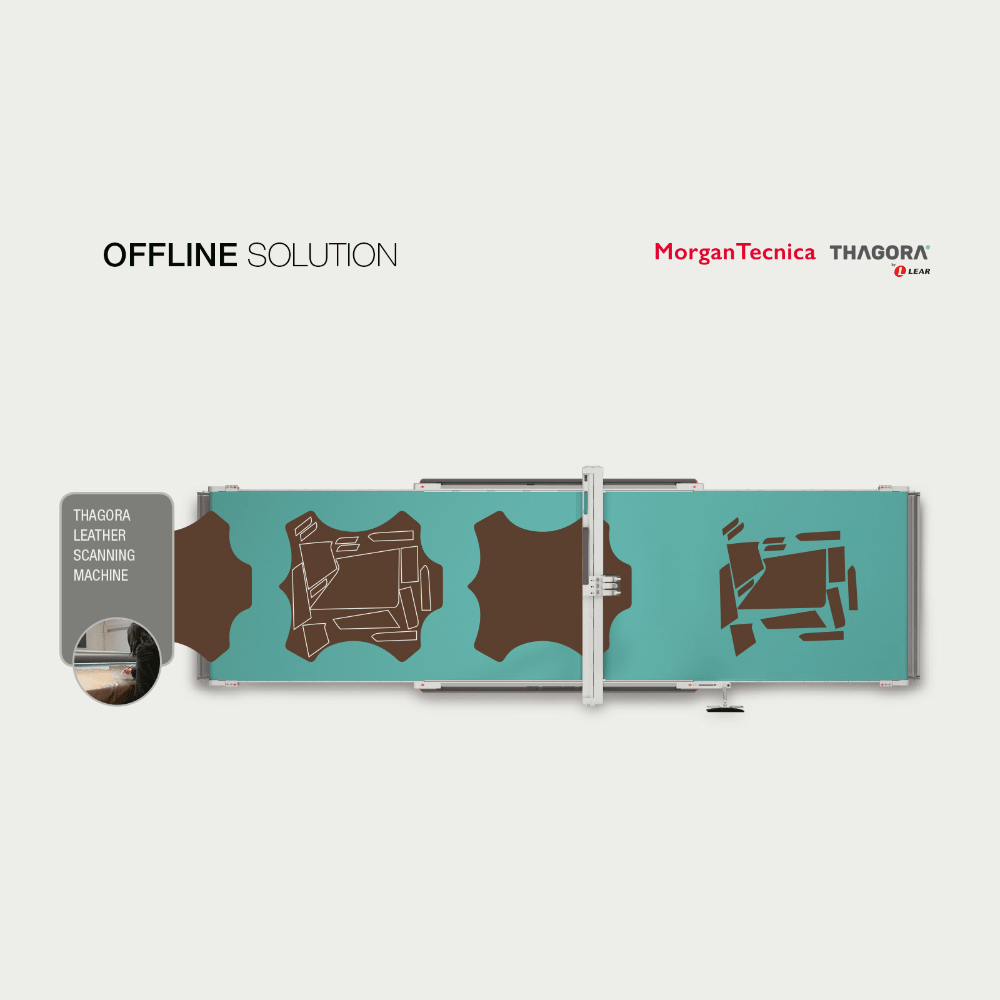

- Modular Design: The offline configuration separates scanning, nesting, and cutting into distinct workstations to maximize productivity.
Performance:
-
High Output: Specifically engineered to handle large volumes, capable of processing more than 100 hides per day.
-
Dynamic Speed: The PLY1 machine delivers high-speed cutting with acceleration up to 3G and speeds reaching 180 m/min.
-
Efficiency: Features low energy consumption with an average power requirement of 3.5 kW.
- Reliability: Designed to maintain high precision and reliability even during intensive mass-production cycles.
Technical Specifications:
-
Cutting Area Options: Available in three dimensions: 180x250 cm, 220x250 cm, and 280x320 cm.
-
Power Supply: Voltage of 400 V 3 Ph 50/60 Hz
-
Power Plants: 4.5+9/15 kW
-
Operating Environment: Operates in humidity levels from 30% to 80% without condensation.
- Dual Scanning Modes: Supports both "Analog" (digitization of pre-marked hides) and "Digital" (marking defects directly on the conveyor) workflows.
