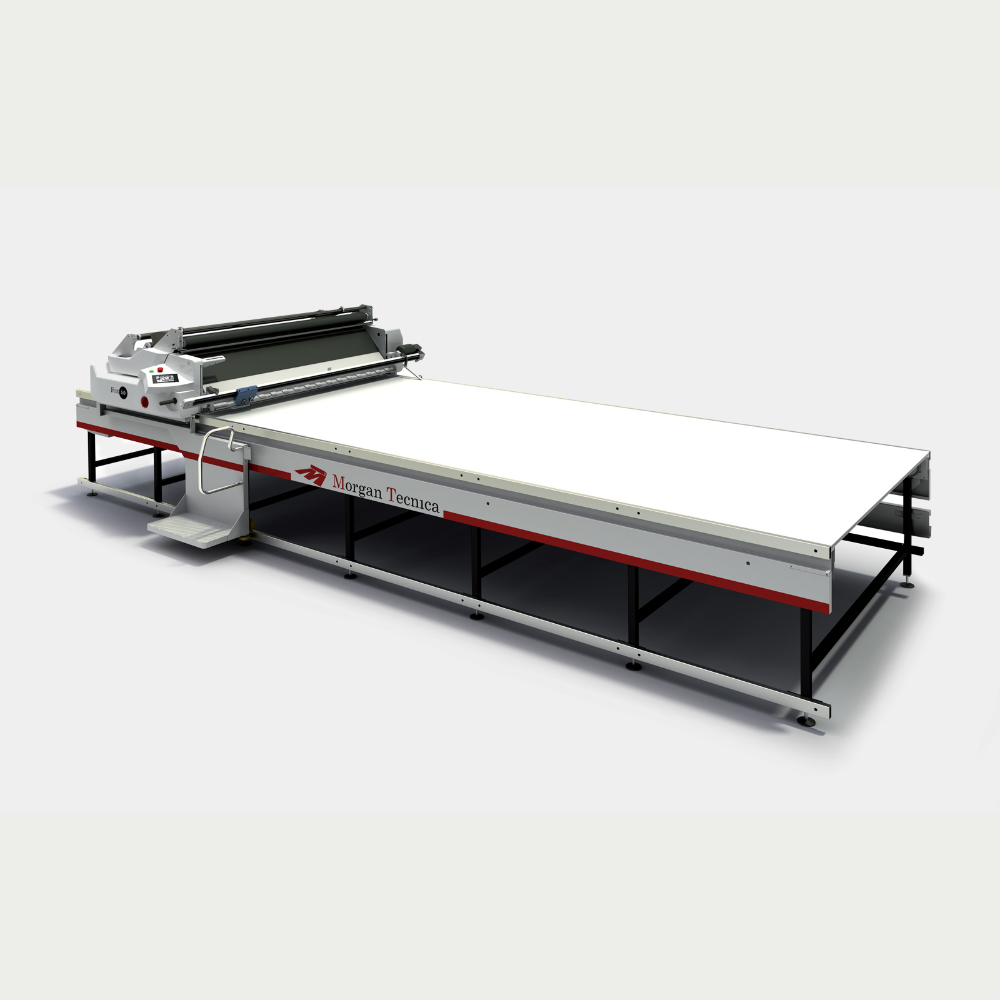

The Fox 50 is MorganTecnica’s most compact, lightweight, and agile spreader, specifically engineered for simple and regular production needs. Its ergonomic design focuses on operator well-being while providing the flexibility to handle heterogeneous materials through customizable spreading profiles. Featuring a single-belt PVC cradle, the Fox 50 ensures a consistent grip across the entire width of the fabric, making it the ideal choice for light, serial production.
Key Features Include:
-
Ergonomic Design: Developed to safeguard operator well-being with an intuitive graphical interface.
-
Single-Belt Cradle: Equipped with a single PVC belt that guarantees a homogeneous grip on the fabric.
-
Versatile Material Handling: Capable of spreading fabric from rolls or folded on a platform.
-
Precision Cutting: Includes a bidirectional cutting device with adjustable speed.
-
Automatic Alignment: Uses photocells for automatic edge alignment to ensure spreading quality.
- High-Quality Spreading: Features an electronic tension-free device for optimal fabric handling.
Productivity, Technology, and Control:
-
Productivity: Suitable for spreading flat lays or irregular steps from a single origin.
-
Smart Technology: Built with Industry 4.0 technology and runs on a Windows operating system.
-
Mastermind Integration: Interconnectable with Mastermind for enhanced production workflow.
-
Interactive Control: Managed via an interactive touch computer with specialized software.
-
Connectivity: Features built-in Wi-Fi and is adapted for remote support.
-
Advanced Monitoring: Includes fabric consumption reports and an anomaly self-diagnostic system.
- Efficiency: Reduces fabric consumption through effective management of lay ends and offers a simple setup to save time.
Technical Specifications:
-
Spreading Method: Face-to-face, zig-zag, or falded
-
Maximum Spreading Speed: 80 m/min
-
Effective Spreading Width: 180 or 230 cm
-
Maximum Roll Weight: 60 Kg
-
Maximum Roll Diameter: 60 cm
-
Maximum Lay Height: 20 cm (15 cm with falded device)
- Power Requirements: 400V + 50/60 Hz voltage
-
Installed Power: 2.5 kw
-
Average Energy Consumption: 2.5 kw
- Operating Conditions: 10°– 40°C temperature; < 95% humidity at 30° (non-condensing)
