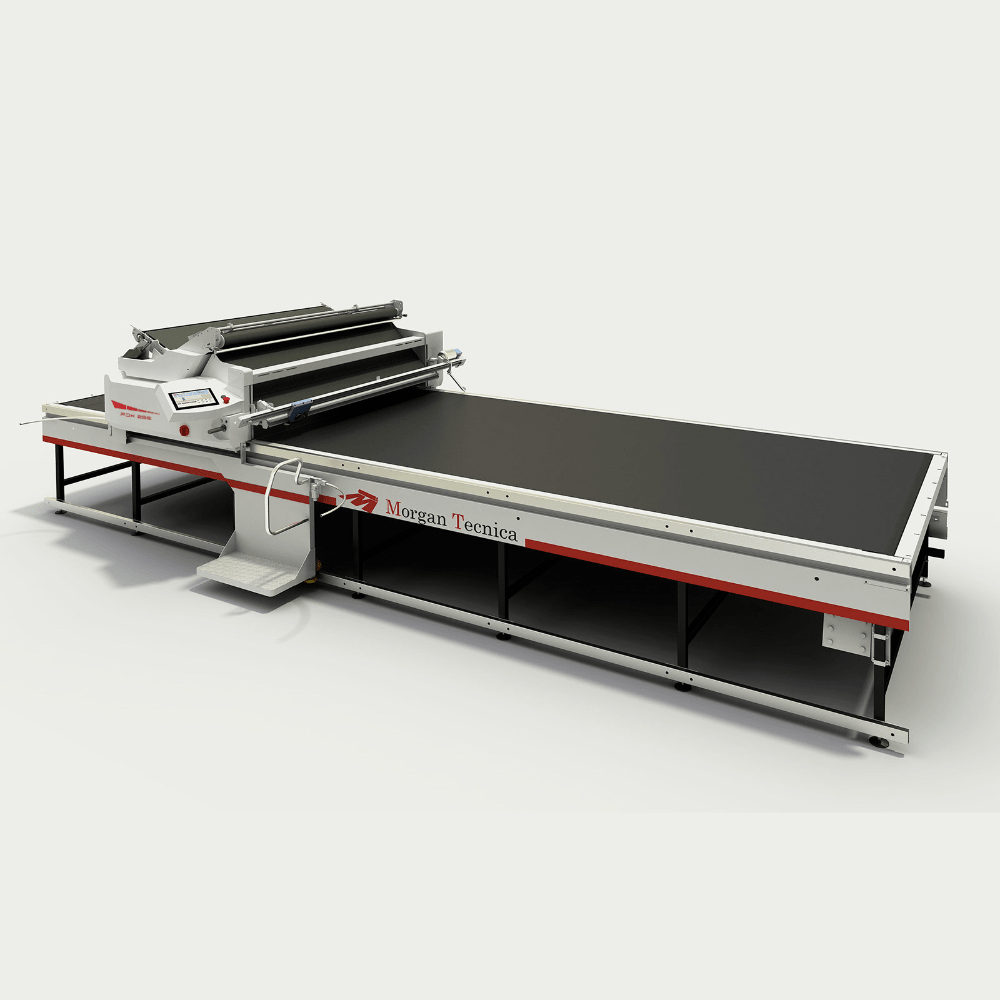

The Fox 200 by Morgan Tecnica is a high-performance spreader engineered for speed and agility in large-scale production environments. Designed to handle substantial loads with ease, it offers the versatility needed for a wide variety of fabrics through customizable spreading profiles.
Key Features:
-
Exceptional Productivity: Achieve spreading speeds of up to 80 m/min, supporting both roll and open folded fabric.
-
Superior Quality Control: Features an electronic tension-free device that adjusts in real-time to prevent fabric stretching.
-
Intuitive Operation: An interactive touchscreen with specialized software provides an easy-to-use interface for operators.
-
Smart Technology: Integrated Industry 4.0 features include Wi-Fi connectivity, remote support capabilities, and an auto-diagnosis system for anomalies.
- Cost Efficiency: Reduces fabric waste through precise lay headings management and offers low maintenance costs with dedicated preventive kits.
Productivity, Tchnology and Control:
- High-Speed Performance: Designed to manage large production loads with rapid movement, reaching speeds of up to 80 m/min.
-
Advanced Smart Technology: Features Industry 4.0 technology, including an integrated Windows operating system and Wi-Fi for remote support and connectivity.
-
Intelligent Monitoring: Includes an auto-diagnosis system for anomalies and generates detailed fabric consumption reports.
-
Intuitive Interface: Utilizes an interactive touchscreen with ad-hoc software for easy overlap management and user-friendly operation.
- Seamless Integration: Interfaces with Mastermind to allow for time-saving, easy setting of spreading profiles.
Technical Specifications:
-
Spreading modes: Face Up, zig zag, and folding
-
Max. spreading speed: 80 m/min
-
Effective spreading width: 180 or 230 cm
-
Max. roll weight: 200 Kg
-
Max. roll diameter: 80 cm
-
Max. lay height: 20 cm, or 15 cm when using a folding device
-
Average power consumption: 3 Kw
-
Installed electrical power: 3 Kw
-
Voltage / Frequency: 400 V+ 50/60 Hz
-
Operating system: Windows
-
Wi-Fi: Integrated
- Operating environment: 10°-40°C with humidity < 95% (at 30° without condensation)
