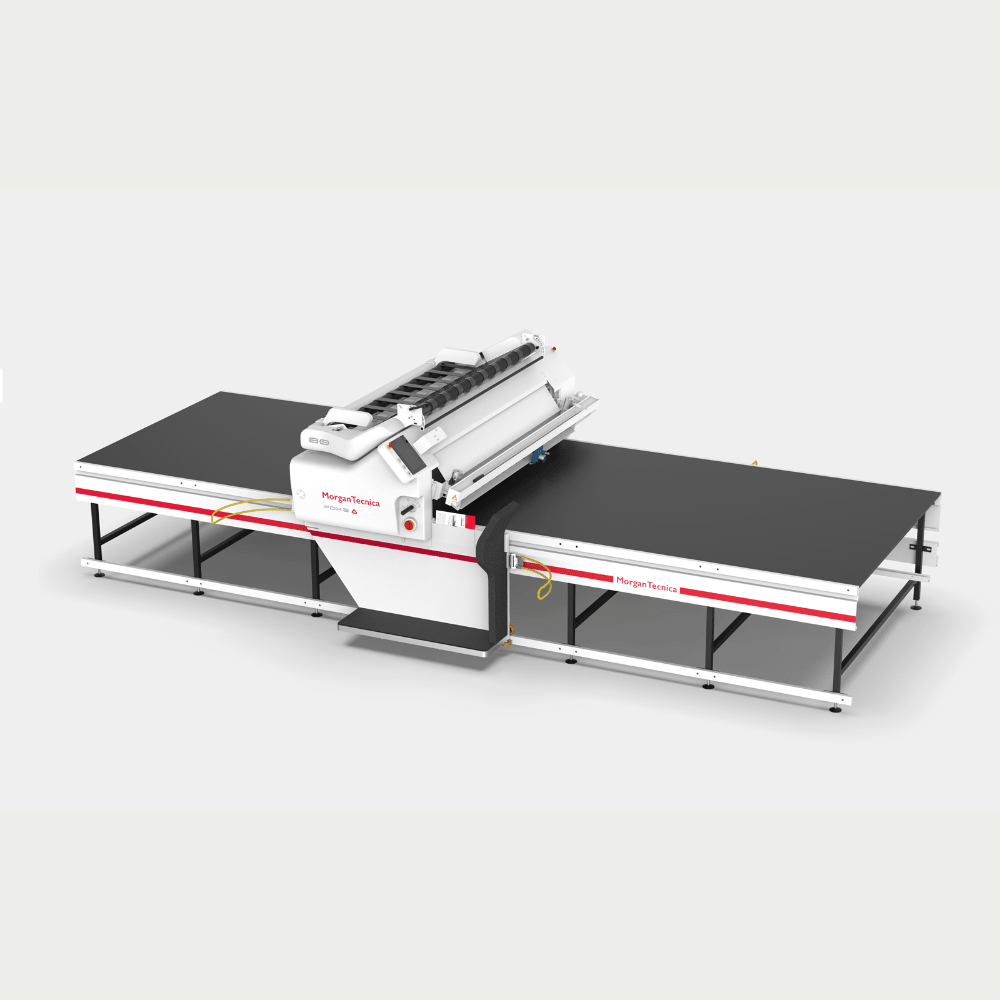

The Morgan Tecnica Fox 2 Delta 80 PRO is an automatic spreading machine designed for intensive production environments, offering top-level speed, precision, and reliability. This robust system features advanced technological upgrades, such as the Quick Change system and an integrated cutting device, to deliver maximum efficiency and flexibility without compromise.
Key Features:
-
Quick Change System: Allows for the fast interchange of accessories like spreading cradles, reverse rollers, and counter rollers, resulting in smoother production and reduced downtime.
-
Integrated Cutting Device: A new, bidirectional cutting device with adjustable speed ensures precise and fast cuts during spreading, which reduces material waste and manual processing time.
-
Electronic Tension-Free Device: Ensures maximum fabric care by maintaining precise electronic control to preserve the quality and integrity of the material.
-
Flexible Spreading Modes: Supports various modes including half fold, cut zig-zag, and folded.
-
Advanced Traction: Features a 4-wheel traction system designed for high acceleration.
- Automatic Edge Alignment: Uses photocells to ensure accurate material alignment.
Productivity and Control:
-
Interactive Interface: Equipped with a touch-screen PC and intuitive software that simplifies machine configuration and speeds up operations.
-
Fabric Management: Offers automatic overlap management and the ability to store a large number of spreading files for different production needs.
-
Operational Control: Includes a self-diagnostic system, Wi-Fi connection for remote support, and detailed fabric consumption reports.
-
System Integration: Can be fully interfaced with Mastermind software to enhance workflow.
-
Reduced Downtime: Quick accessory changes and self-diagnostics minimize machine downtime, while easy setup contributes to significant time savings.
- Industry 4.0: Utilizes Industry 4.0 technology to optimize return on investment and lower operating costs.
Technical Specifications:
-
Spreading modes: Half fold, cut zig-zag, and folded
-
Maximum spreading speed: Up to 100 m/min
-
Effective spreading width: 180 or 230 cm
-
Maximum roll weight: Up to 80 kg
-
Maximum roll diameter: Up to 60 cm
-
Maximum lay height: Up to 20 cm, or 15 cm when using a folding device
-
Average energy consumption: 1 kW
-
Installed power: 9.3 kW
-
Voltage / Frequency: 400 V 3Ph 50/60 Hz
-
Ambient temperature: 10°–40°C
- Humidity: Less than 95% at 30° without condensation
