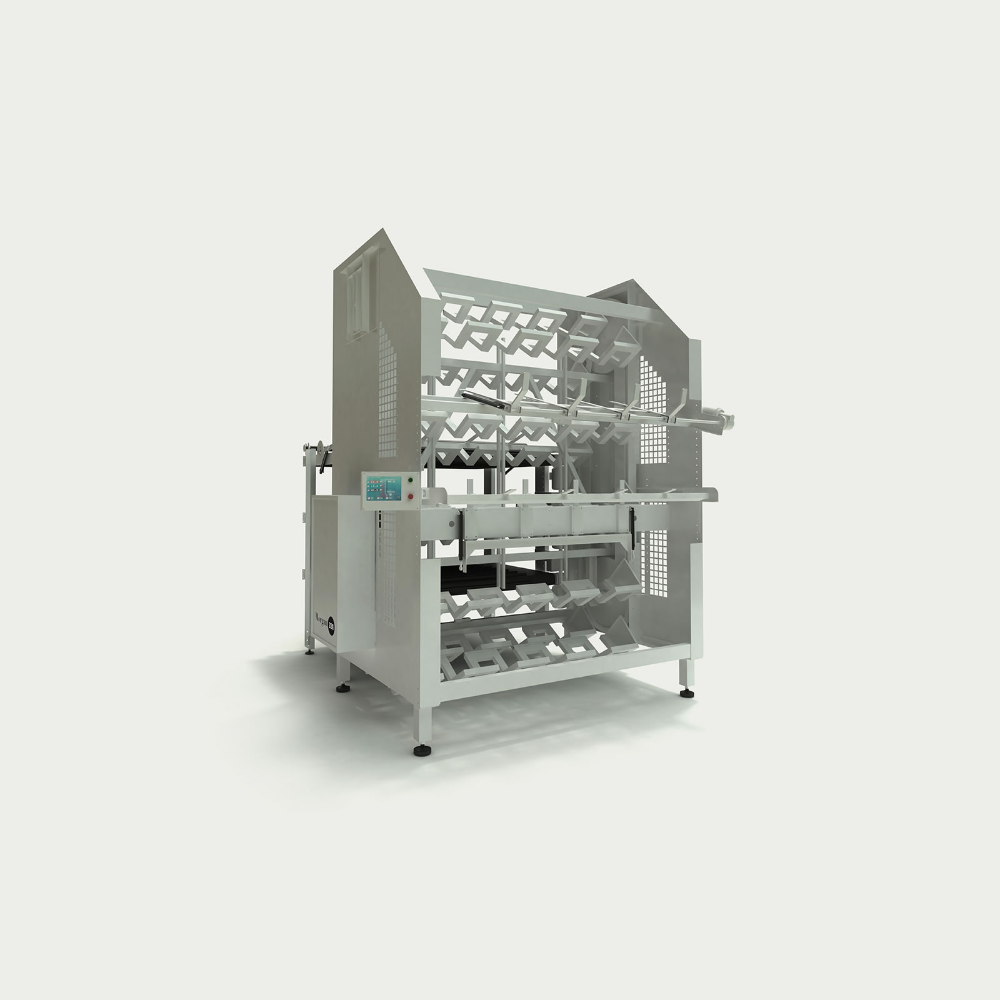

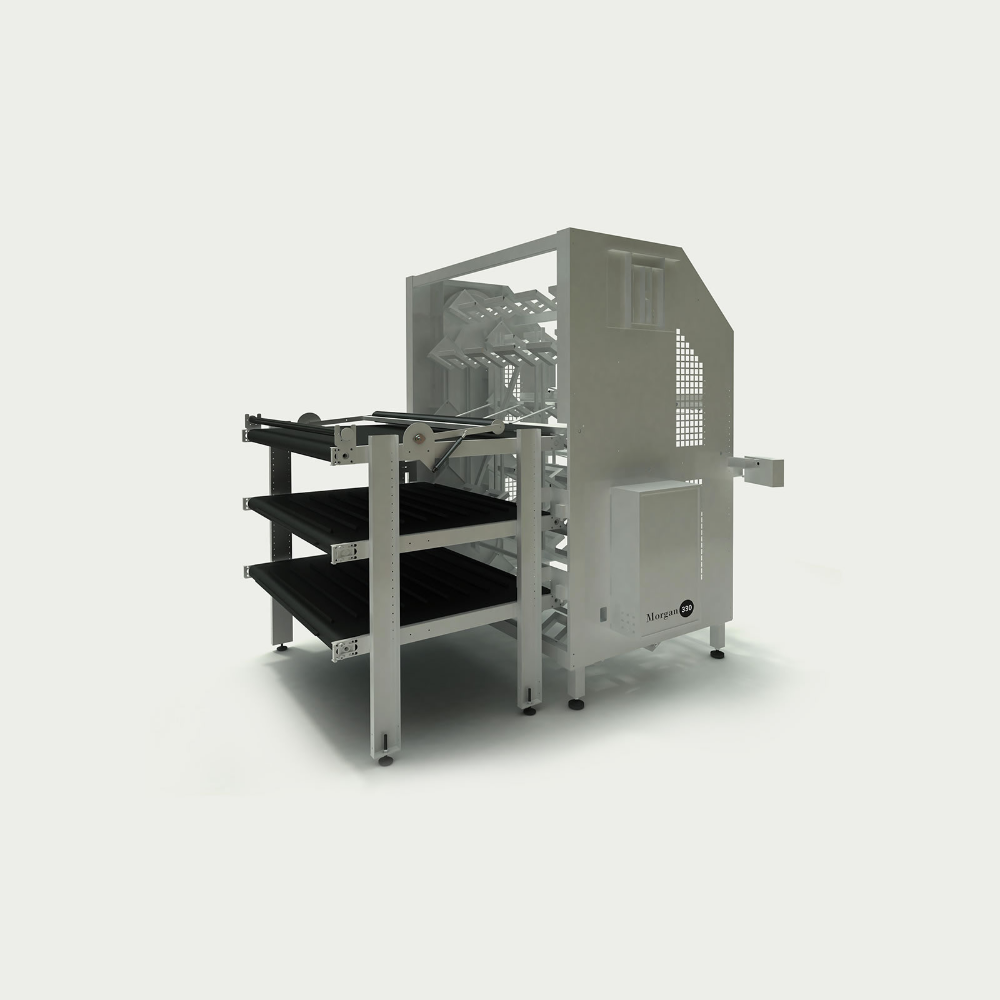

The Morgan Tecnica 330 Loader is an automatic 10-cradle carousel designed for the efficient storage and handling of fabric rolls. This loader optimizes spreading line productivity by utilizing two overlapping conveyor shelves to manage roll sequences and automate loading and unloading processes.
Key Features:
-
Dual-Level Storage: Features two overlapping conveyor shelves for organized fabric roll management.
-
Smart Pre-loading: The lower shelf allows for pre-loading rolls in a specific sequence, managed via an interactive touch PC control panel.
-
Automatic Unloading: The upper shelf is dedicated to receiving rolls automatically discharged from the spreading machine after use.
-
Enhanced Productivity: Minimizes machine downtime by automating the transition of fabric rolls throughout the spreading line.
Technical Specifications:
-
Rotation Speed: 6 m/min
-
Maximum Roll Weight: 40 Kg
-
Maximum Roll Diameter: 40 cm
-
Installed Electrical Power: 3 Kw
-
Average Energy Consumption: 3 Kw
-
Voltage / Frequency: 400 V + 50/60 Hz
-
Total Height: 314.6 cm
- Total Width Options: 284.4 cm or 334.4 cm
