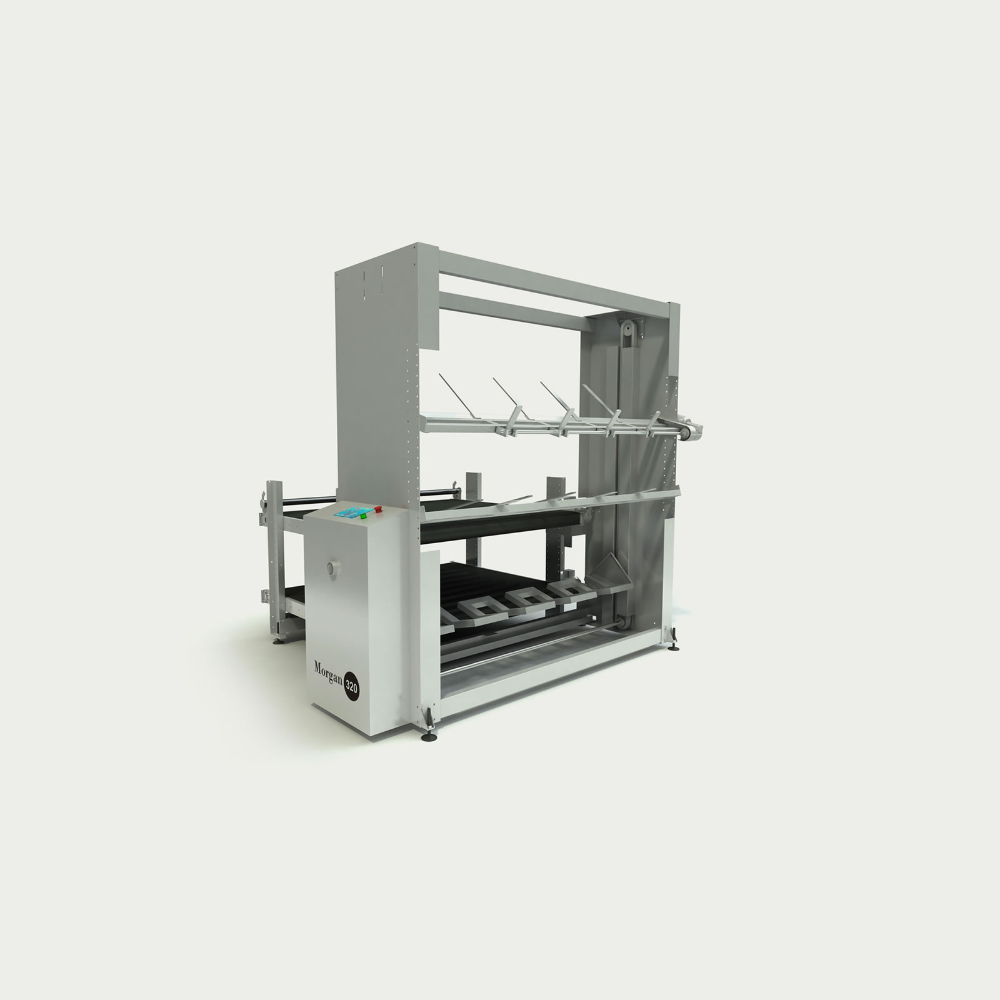

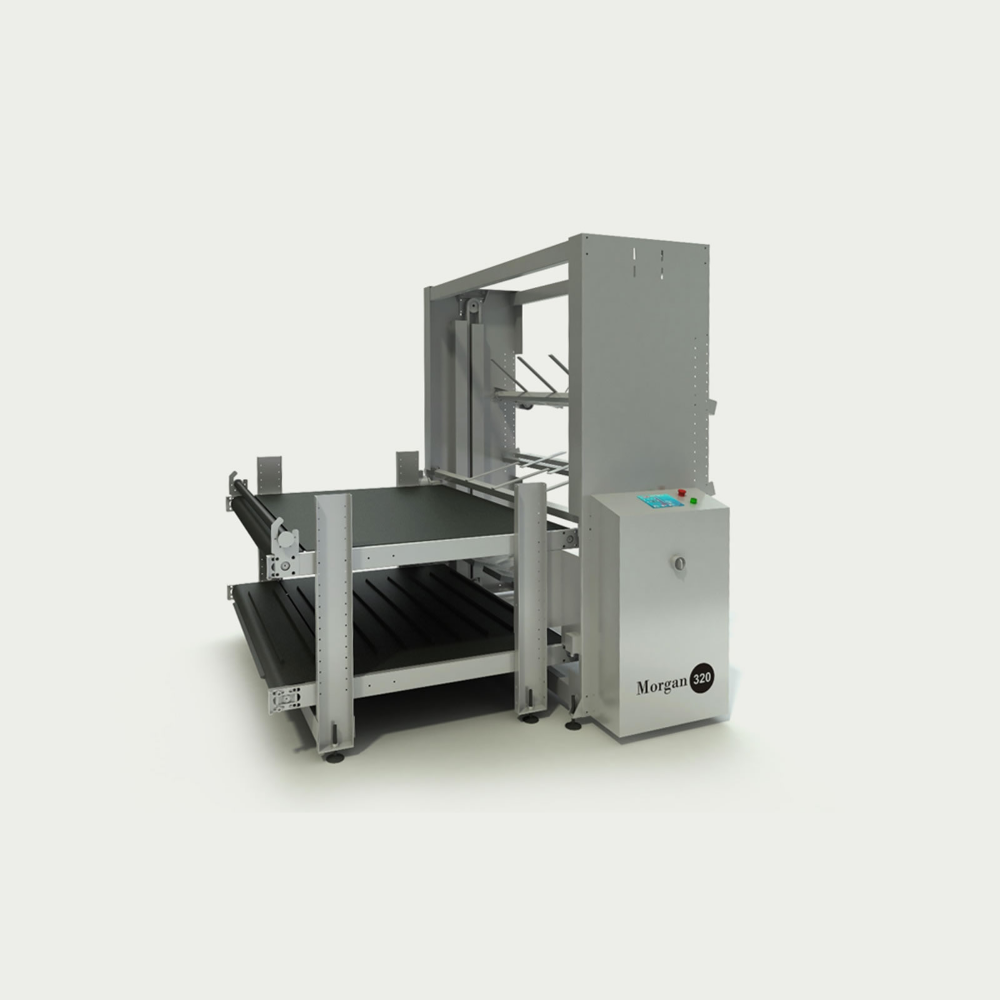

The Morgan Tecnica 320 Loader is an advanced automatic loader designed for the efficient storage and handling of fabric rolls. This system utilizes a multi-tiered conveyor belt structure to streamline the spreading process.
The lower shelf is dedicated to pre-loading fabric rolls in their required sequence, while the upper shelf handles rolls being unloaded from the spreading machine. By automating the loading and unloading cycles, the 320 loader significantly reduces machine downtime and maximizes overall production efficiency.
Key Features Include:
- Dual-Tier Storage System: Features two levels of conveyor belts for organized fabric roll management.
- Sequential Pre-loading: Allows operators to prepare rolls on the bottom shelf in the exact order needed for production.
-
Automated Handling: Fully manages the loading and unloading process to minimize manual intervention.
-
Enhanced Productivity: Specifically designed to reduce spreader downtime and improve workflow efficiency.
-
Versatile Sizing: Accommodates various fabric widths ranging from 220 cm to 270 cm.3
Technical Specifications:
-
Rotation Speed: 6 m/min
-
Maximum Roll Weight: 50 Kg
-
Maximum Roll Diameter: 30 cm
-
Installed Electric Power: 2 Kw
-
Average Energy Consumption: 2 Kw
- Voltage/Frequency: 400 V + 50/60 Hz
