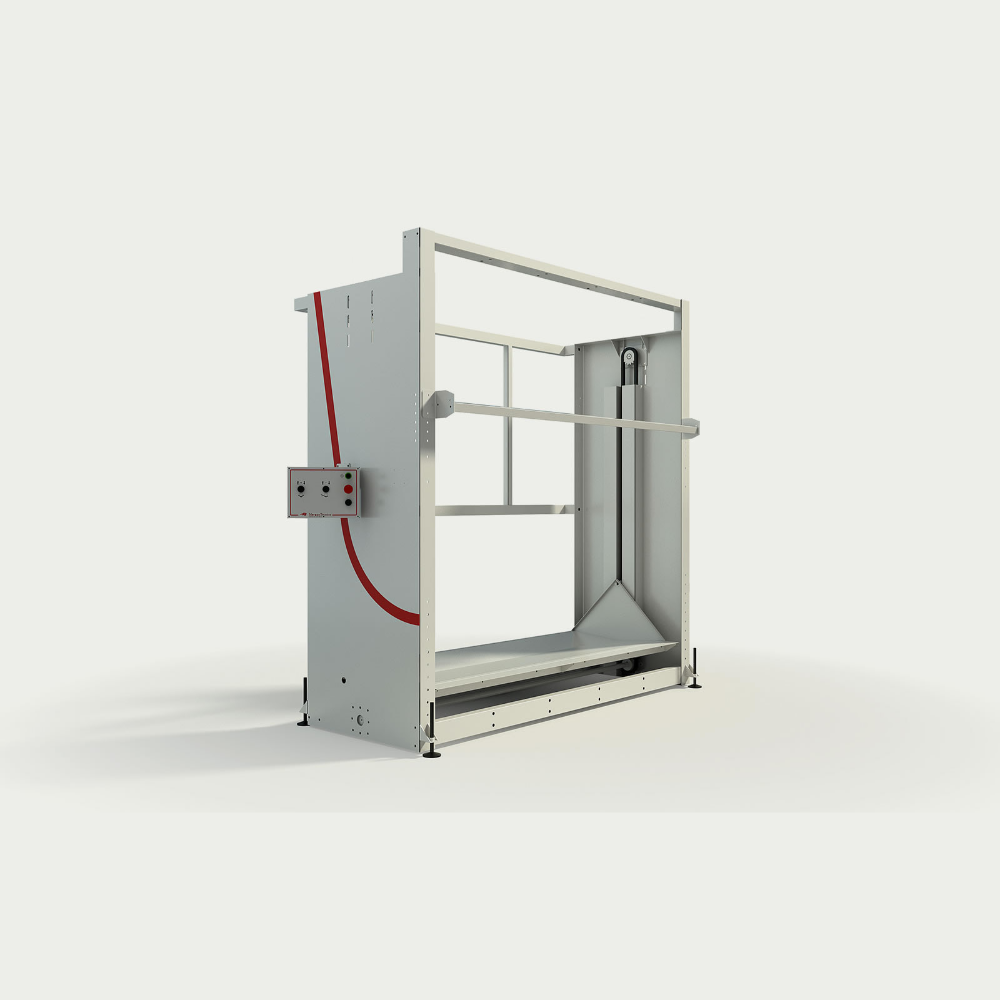

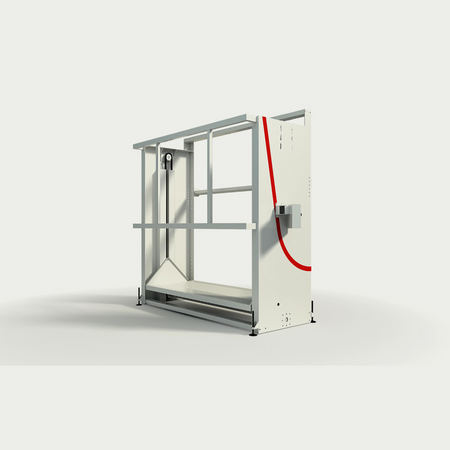

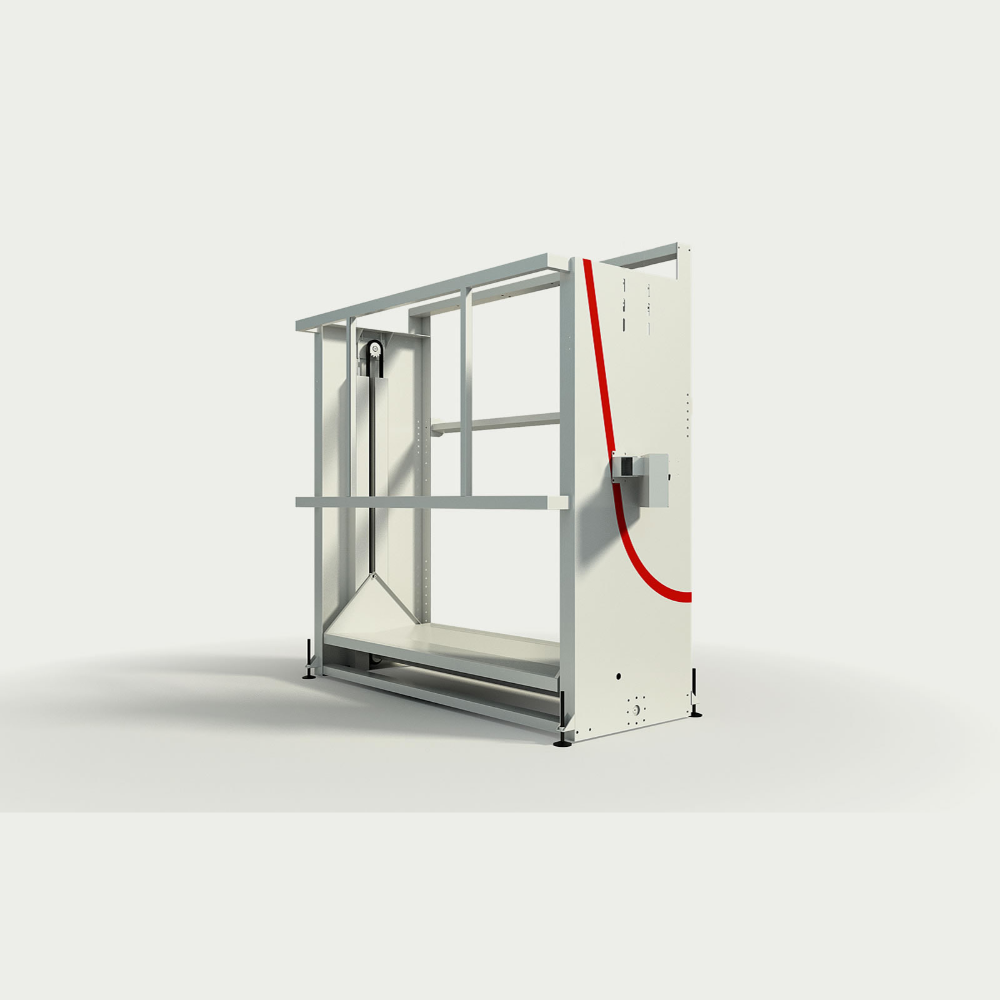

The Morgan Tecnica 312 is a robust semi-automatic loader designed as the first essential element of your spreading line. This system optimizes the workflow by streamlining the loading of fabric rolls onto spreaders, effectively reducing manual handling times.
Key Features:
-
Motorized Roll Loading: The operator maintains full control of the motorized loading system via a dedicated, user-friendly control panel.
-
Integrated Cradle Support: Features a specialized cradle support system to hold fabric rolls securely during the loading process.
-
Semi-Automatic Unloading: Equipped with a unique semi-automatic inclination device on the cradle to assist with the unloading of rolls.
-
Enhanced Capacity: Specifically engineered to handle heavier fabric rolls, increasing efficiency for larger-scale operations.
Technical Specifications:
-
Maximum Roll Weight: 200 Kg
-
Maximum Roll Diameter: 80 cm
-
Maximum Speed (Up/Down): 5 m/min
-
Voltage / Frequency: 400 V + 50/60 Hz
-
Installed Electrical Power: 0.5 Kw
- Average Power Consumption: 0.5 Kw
