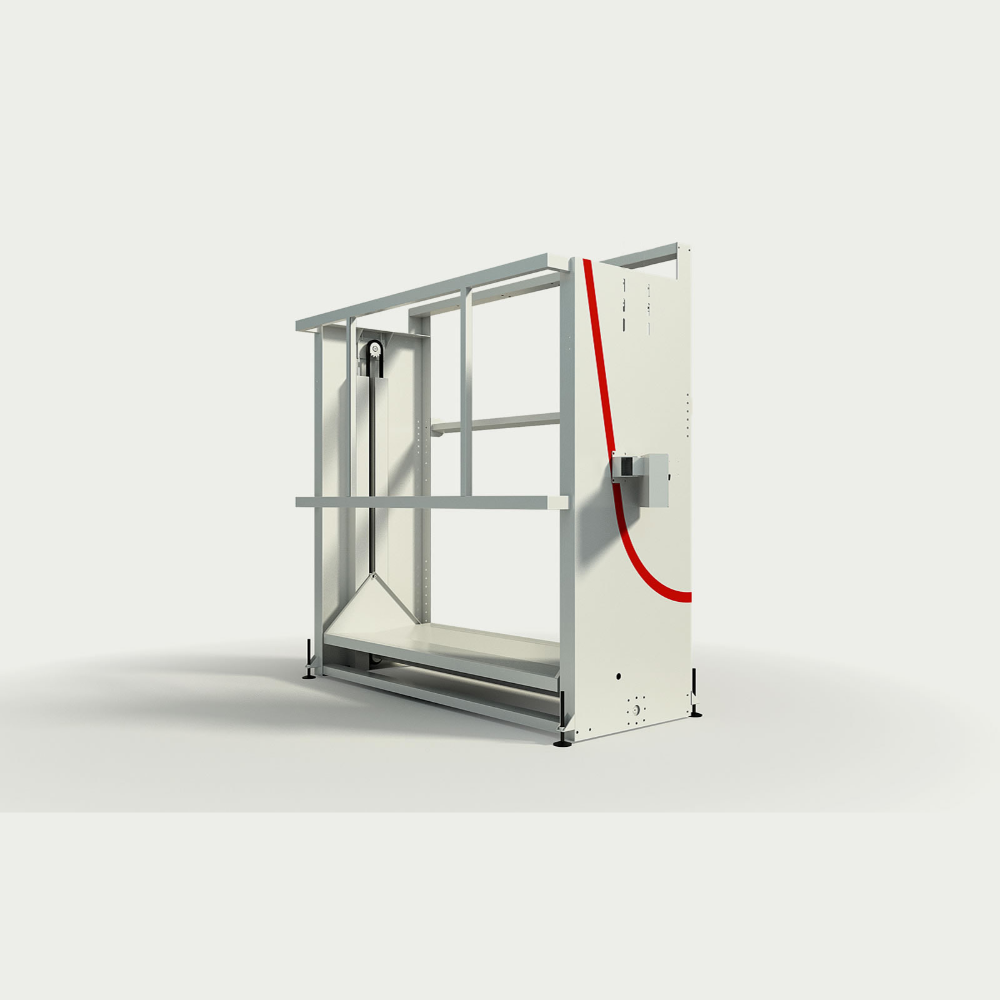

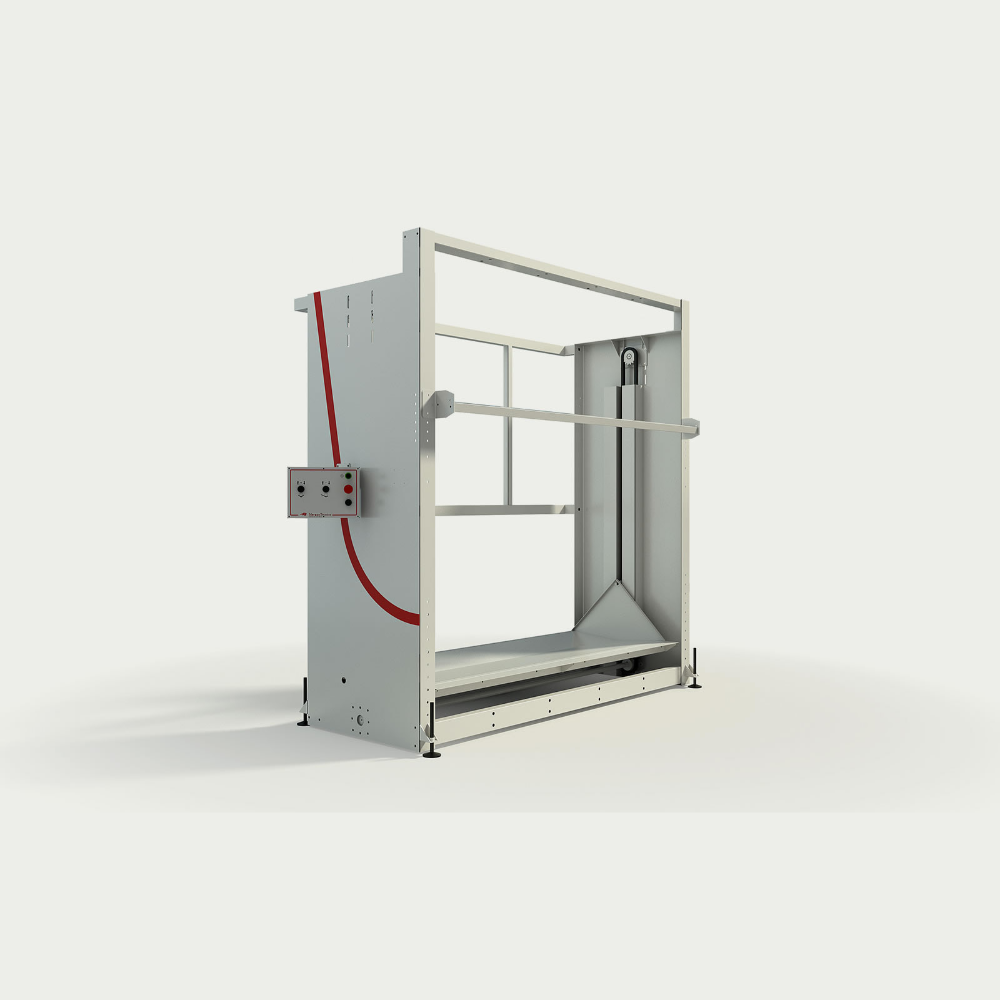

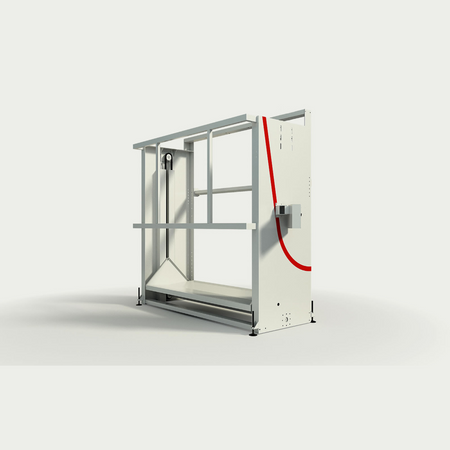

The Morgan Tecnica 311 is a semi-automatic loader designed as the essential first component for your spreading line. This system streamlines the process of loading fabric rolls onto spreaders, significantly reducing manual handling times.
Key Features:
-
Semi-Automatic Operation: Features a motorized roll loading system that is easily managed by an operator through a dedicated control panel.
-
Efficient Unloading: Equipped with a specialized semi-automatic inclination device on the cradle to assist with roll unloading.
-
Reduced Handling: Designed specifically to optimize the loading process and lower overall handling times.
Technical Specifications:
-
Maximum Capacity: 100 kg
-
Maximum Roll Diameter: 60 cm
-
Max Speed (Up/Down): 5 m/min
-
Voltage / Frequency: 400 V + 50/60 Hz
-
Installed Electrical Power: 0.5 Kw
- Average Power Consumption: 0.5 Kw
