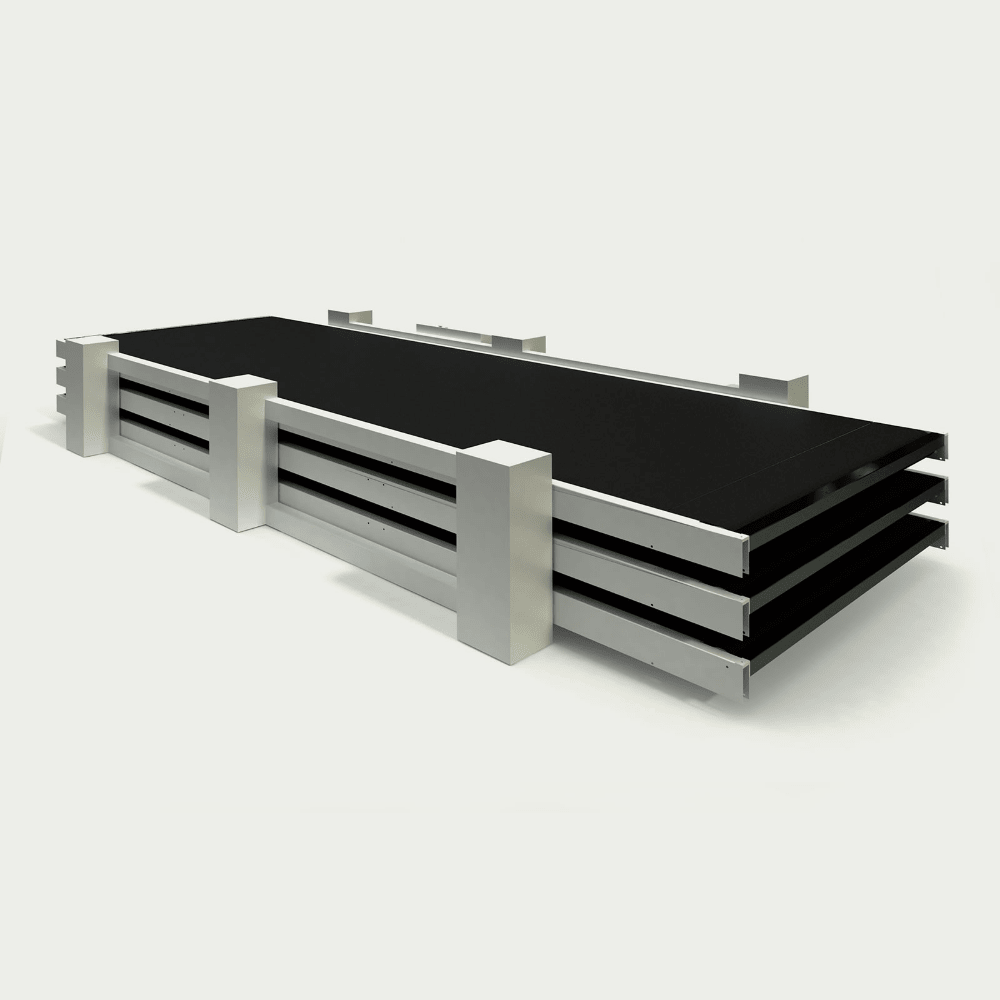

Upgrade your manufacturing or packaging line with the 103 MultiLevel Conveyor Table. Designed for efficient storage, seamless alignment, and automated handling, this robust solution is ideal for high-volume operations seeking reliability and flexibility.
Key Features:
- Three Levels: Store and automatically align multiple lays for a streamlined workflow.
- Motorized Vertical Movement: Effortlessly adjust table height and feed levels with a powerful motorized system.
- Automatic Level Selection: Easily select and feed any level to the worktable for maximum efficiency.
- PVC Conveyor Belts: All tops feature durable PVC belts with double side guides for smooth, precise movement.
- Synchronization Ready: Integrates seamlessly with other tables or automatic cutting machines.
- Lateral Translation: Designed to serve two or more parallel lines, enhancing operational flexibility.
- Modular Design: Available in 6 m or 8 m modules to fit your production space.
Technical Specifications:
- Weight: 2500 kg
- Adjustable Height: 87 cm to 93 cm
- Fabric Width: 180 cm or 230 cm
- Power Supply: 400V, 3Ph, 50/60 Hz
- Installed Power: 5.5 kW
- Belt Speed: 6 m/min
- Module Lengths: 600 cm or 800 cm
- Table Widths: 126.3 cm or 156.3 cm
- Table Lengths: 453 cm or 593 cm
- Table Heights: 75.3 cm or 103.5 cm
