Kansai Special SX6803PD 1/4 3-Needle Double Chain Stitch Lap Sewing Machine
Regular price
$6,338.10 USD
Pricing Notice: Final pricing may vary based on configuration. To request a custom quote or explore available options and accessories, please contact our specialist, Rob Patterson.
Freight charges are calculated and collected at the time of shipment. Prices may exclude duty and applicable tariffs. Pricing shown applies to U.S. customers only; please contact customer service or request more information below for international or region-specific pricing.
Rob Patterson

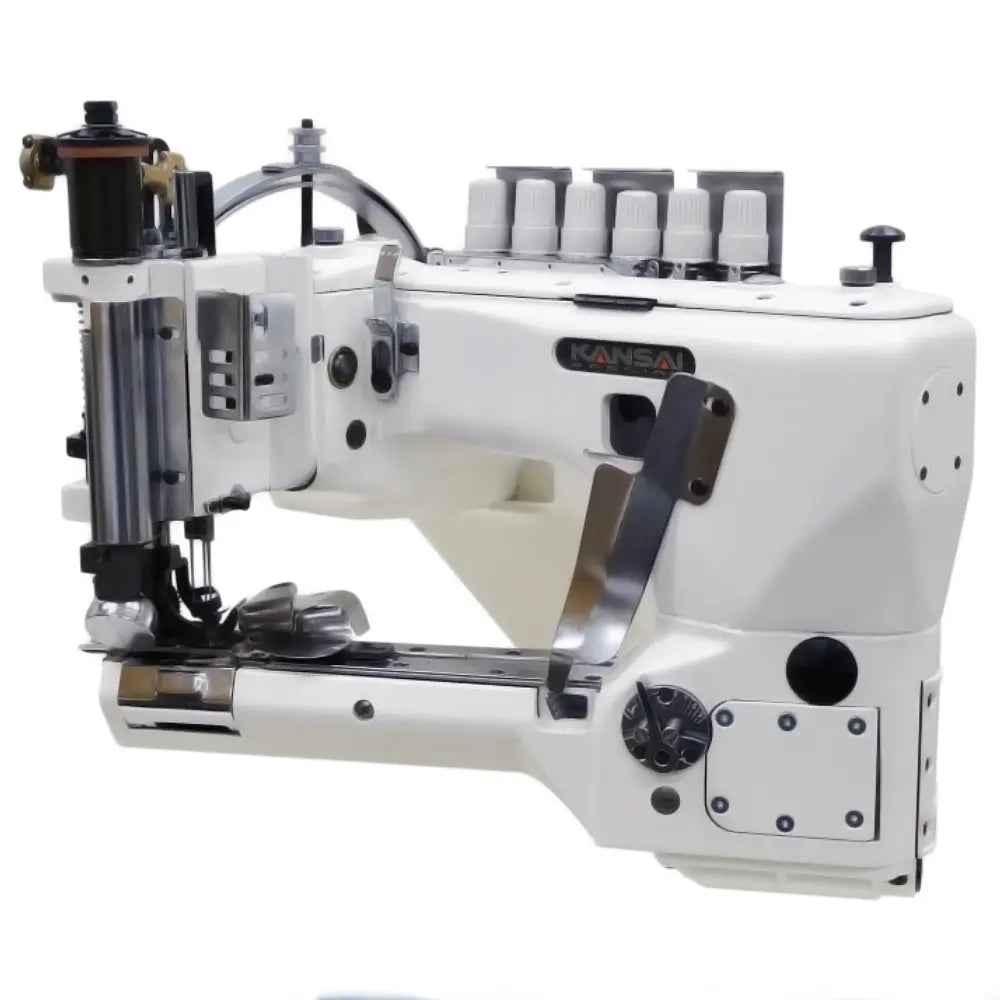

Experience superior stitching and efficiency with the KANSAI SPECIAL SX6803PD, a 3-needle, double chain stitch, feed-off-the-arm machine specifically designed for denim lap-seaming. Crafted in Japan, this powerful machine is engineered to handle thicker material and prevent common issues like puckering, delivering consistent and high-quality results for your heavy-duty textile applications.
Key Features Included:
- Superior Feeding for Thick Materials: An upper puller synchronized with the feed dogs offers the most efficient feeding for thicker material, providing solutions for uneven stitches at cross sections.
- Easy Fabric Handling: The sliding-type folder simplifies the process for the operator to set the fabric with ease.
- Prevent Puckering: A differential feed mechanism ensures stable stitches and actively prevents puckering and unstable stitches.
Specifications:
- Machine Type: 3‑needle, feed‑off‑the‑arm double chain stitch sewing machine for lap seaming heavy fabrics.
- Stitch Type: Double chain stitch (Type 401).
- Needle System: TV × 3 (#21) – 3 needles.
- Recommended Speed: Approx. 4,000–4,500 rpm.
- Stitch Length: Adjustable (typically 2.1–4.2 mm).
- Stitch Density: ~6–12 stitches per inch (adjustable).
- Gauge Sizes: Standard 1/4″ and 9/32″.
- Presser Foot Lift: ~8 mm maximum.
- Needle Bar Stroke: ~33.3 mm.
- Differential Feed Ratio: ~0.7–1.3 (model PD).
- Feed Adjustment: Lever control (variable).
- Differential Adjustment: Dial control.
FOB USA
