Hashima HP-1000LS Fusing Press Machine
Hashima HP1000LS and 1200LS pressure and heater system diagram
Hashima HP-1000LS Fusing Press Machine
Hashima HP1000LS and 1200LS pressure and heater system diagram
Hashima

Hashima HP-1000LS - Straight Linear Fusing Press

$40,459.50 USD
Pricing Notice: Final pricing may vary based on configuration. To request a custom quote or explore available options and accessories, please contact our specialist, Rob Patterson.
Freight charges are calculated and collected at the time of shipment. Prices may exclude duty and applicable tariffs. Pricing shown applies to U.S. customers only; please contact customer service or request more information below for international or region-specific pricing.

* Please include your shipping location in the comment section.

Rob Patterson

Email +1 270-887-5066

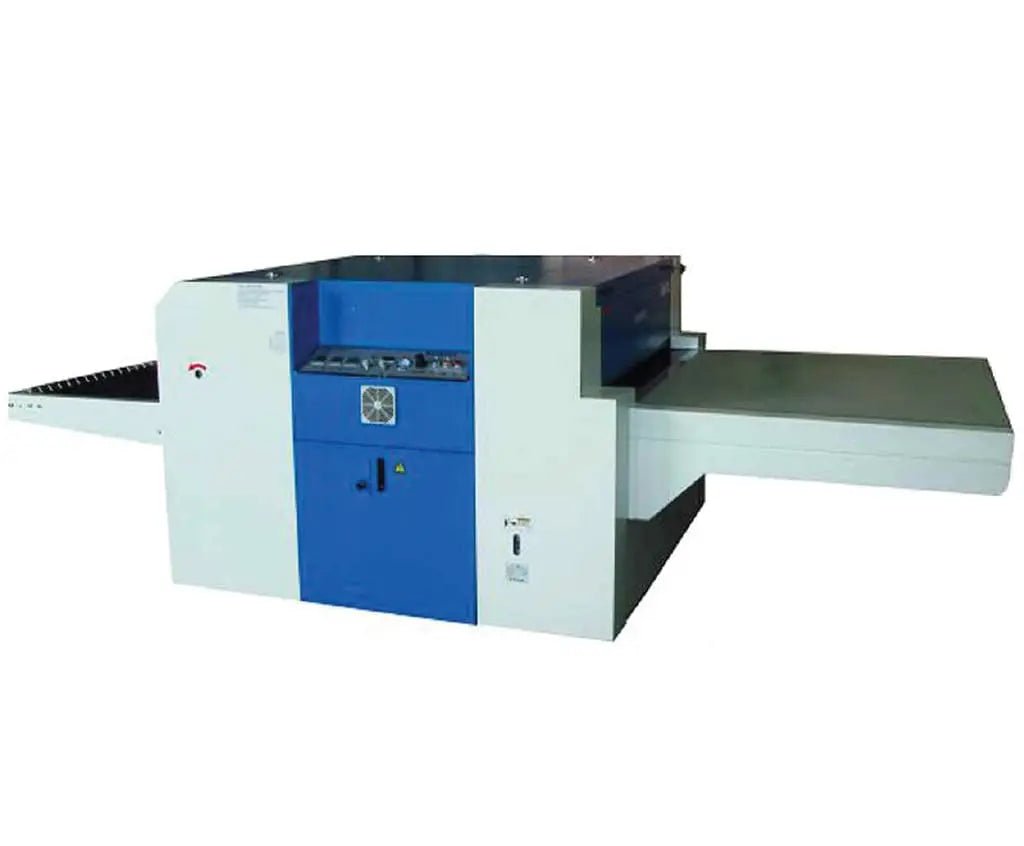

Hashima HP-1000LS – Straight Linear Fusing Press
High-efficiency linear fusing press with a 1000 mm fusing width, seamless belt system, and strong pressurization roller for consistent adhesion and long-lasting performance.

Key Features Include:

  • Seamless belt design for durability and extended service life.
  • High-pressure roller ensures uniform adhesion across the fabric.
  • Cooling fan quickly stabilizes fused material for improved quality.
  • Tension rollers placed at the back of the belts prevent damage from twisted fabrics or interlining.
  • New belt wrapping prevention system provides extra stability and reduces wear.
  • Dual belt cleaning system (surface cleaner + back belt cleaner) extends belt lifespan.

Details and Specifications:

  • Power Supply: 3 Phase
  • Rated Output: 16.2 kW
  • Fusing Width: 1000 mm
  • Belt Speed: 12.7 m/min
  • Max Pressure: 65 N/cm² (6.5 kgf/cm²)
  • Max Temperature: 195 °C
  • Heating Time: 6.8–31 sec
  • Dimensions: 3838 (L) × 1454 (W) × 1027 (H) mm
  • Weight: 1200 kg

Additional Requirement: Air compressor

The Hashima HP-1000LS Straight Linear Fusing Press is designed for professional garment production, offering high reliability and consistent performance. Featuring a seamless belt system, the machine delivers long service life and smooth operation. A large pressurization roller applies uniform high pressure, while the cooling system ensures immediate stabilization of the fused material, improving final product quality.

The belt protection system prevents twisting damage, and the dual cleaning system maintains belt condition for continuous use. With its 1000 mm fusing width, precise heating and pressure adjustments, and sturdy construction, the HP-1000LS is an excellent solution for efficient fabric bonding in industrial applications.
