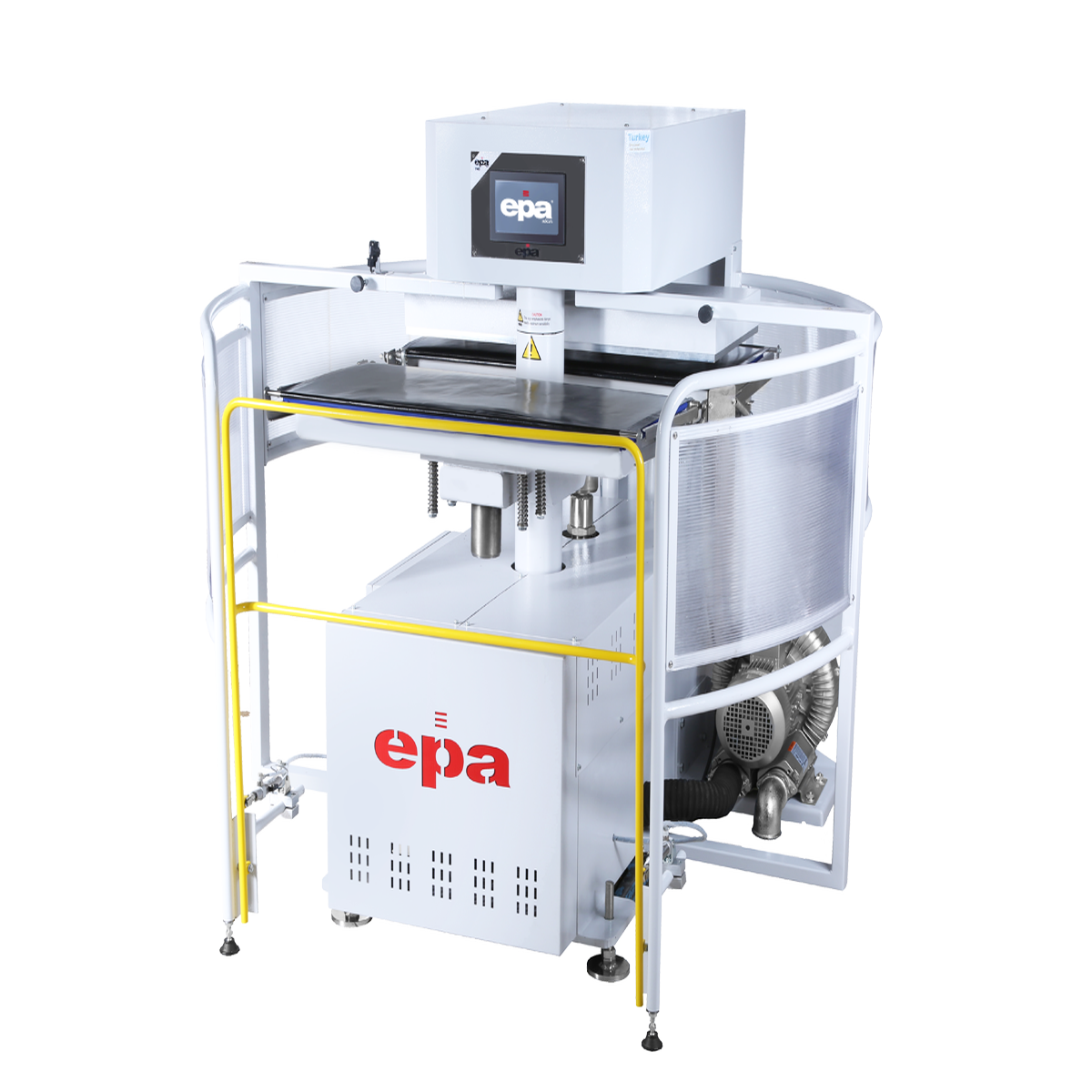

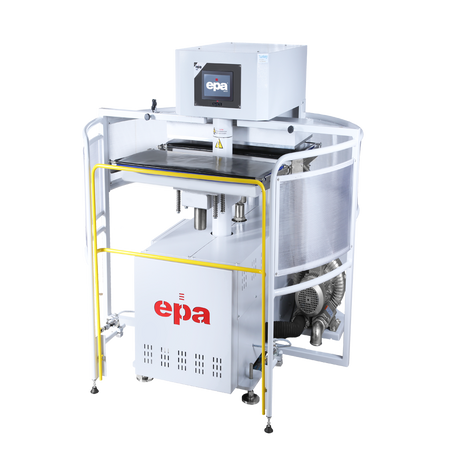

The EPA 740 fuses interlinings and irons shirt front plackets across a double ironing table layout.
Key Features
- Front Placket Fusing Press gives the perfect form to shirts with ironing after the front placket stitching process
- High capacity double ironing table
- Front Placket Fusing Press is able to fix the interlining and can be used for bonding when the lower materials are changed
- Pressing heat and timing can be adjusted according to the materials type to be pressed
- High-vacuum lower mould
- Vacuum motor installed inside Front Placket Fusing Press Machine with high vacuum producing capacity
- Vacuumed cooling system
- Specially designed resistors and upper pressing head allow the equal heat diffusion on pressing area

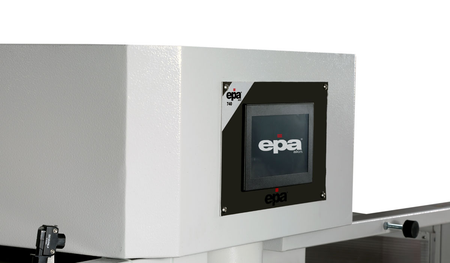

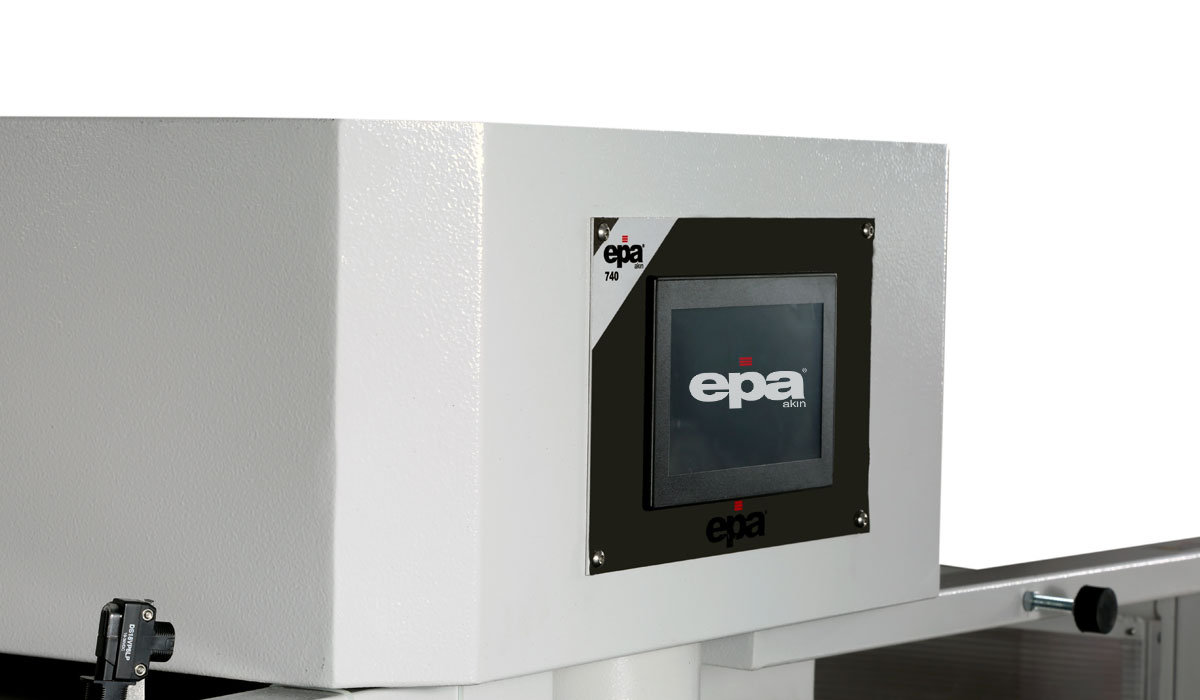

- Easy to use digital display
- Digital screen of Front Placket Fusing Press provides hourly and daily production reports
- Smart-fault notification system enables easy detection of machinery malfunctions, trackable using the screen
- Unique resistors and computerized temperature control system of Front Placket Fusing Press provides precise heat adjustment and energy savings

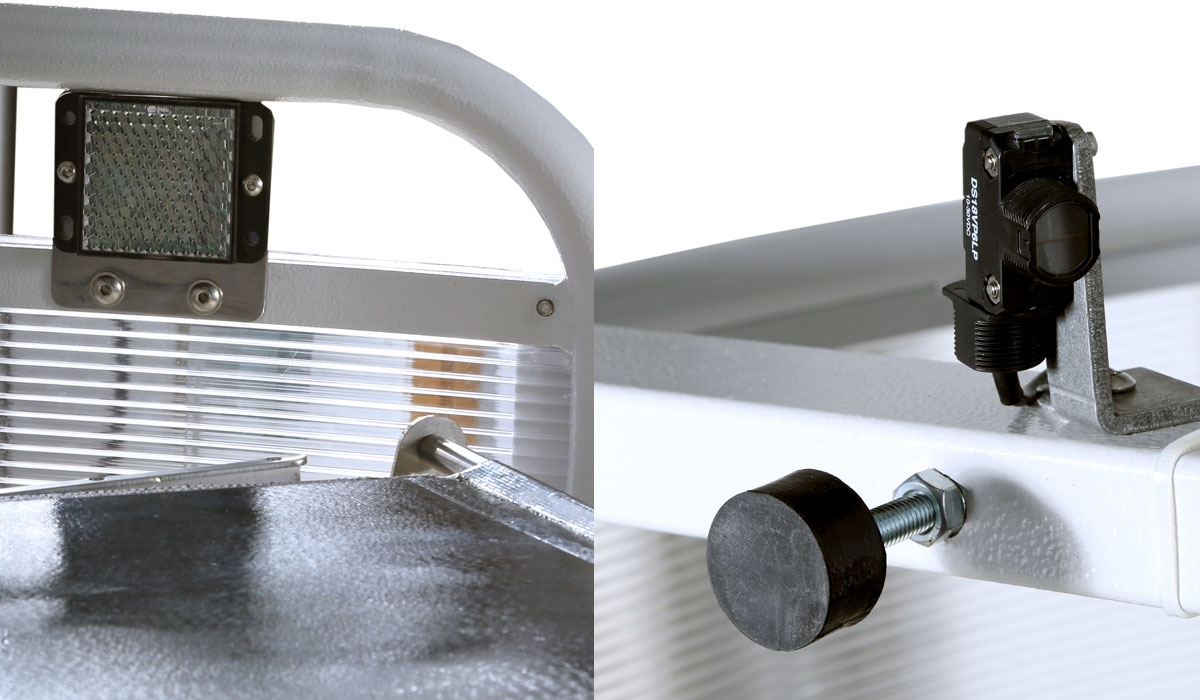

- A number of safety precautions protect the operator
- PLC (Programmable Logic Control) controlled machine
- Front Placket Fusing Press has a CE certificate
Specifications
- Dimensions 1450x1580x1370 mm
- Weight 900 kg
- Electricity 380 V
- Power 7 kW
- Capacity 250 pcs/hr
- Compressed Air 6-7 bar
- Air Consumption 254 nl/dk
