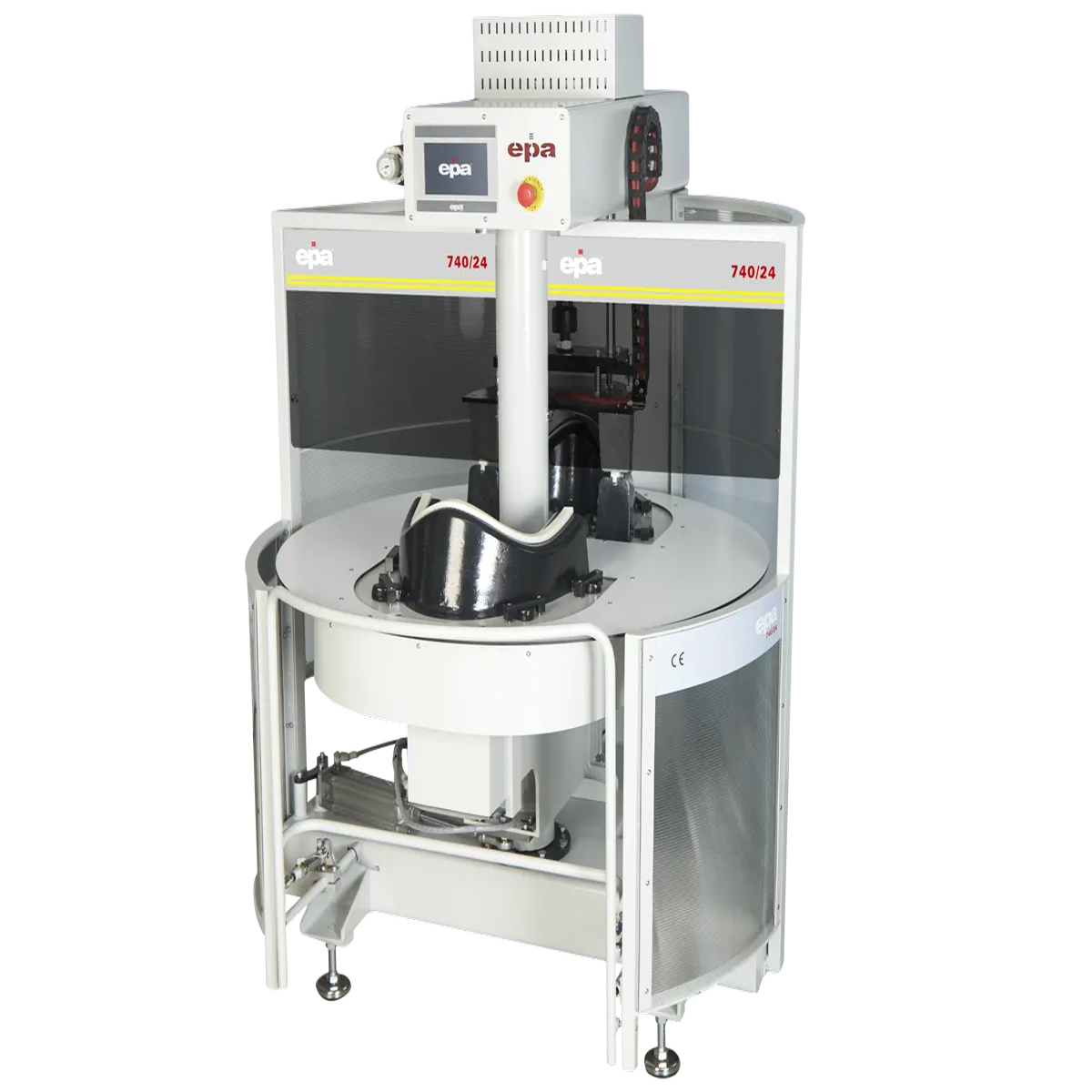

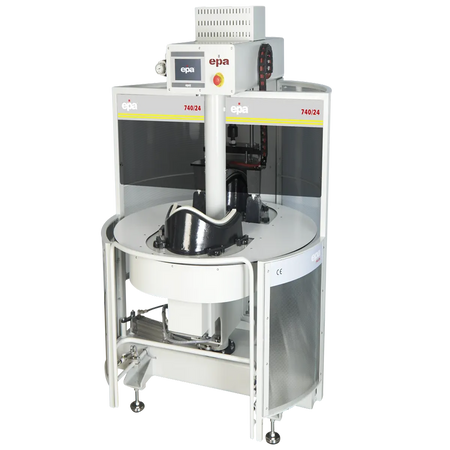

Designed for armhole seam ironing and interlining fusing, the EPA 740-24 uses double lower molds and integrated vacuum cooling for maximum output. Anti-shine head coatings preserve delicate fabric textures.
Key Features
- It ensures that the upper arm seam of shirts is ironed to have a neat shape.
- It fuses the interfacing inside the upper arm seams of shirts.

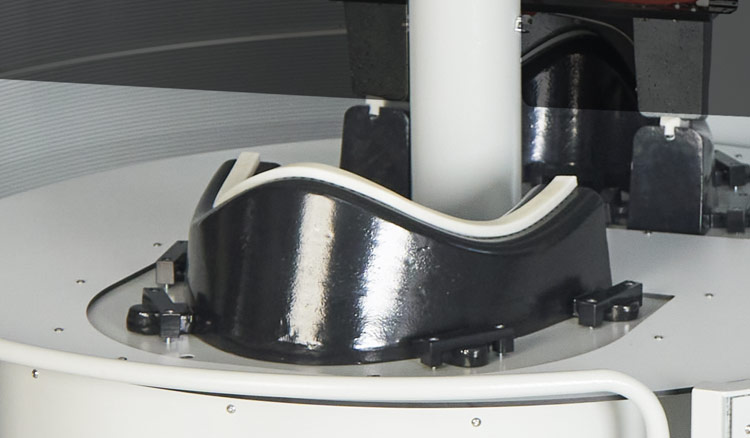

- Thanks to the specially designed lower and upper molds, it fits perfectly with the armhole seams of shirts.

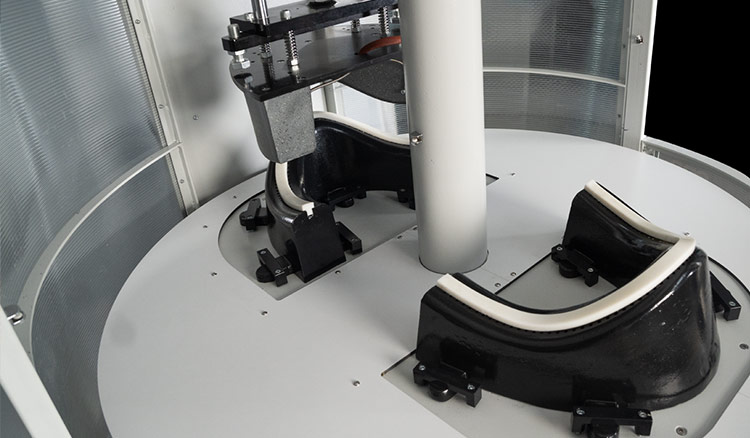

- The specially designed upper and lower molds prevent any slippage of seams while pressing the product. Double lower molds provide maximum efficiency.
- The lower mold is highly vacuumed. The pressing heat and time settings can be adjusted according to the product.
- The vacuum motor is integrated into the machine and has a high vacuum generation capacity and vacuum cooling system.
- Special design resistors and the upper pressing head ensure that heat is evenly distributed across the ironing surfaces.
- The use of specially produced resistors and a computerized heat control system allows for precise heat adjustments and energy savings.
- Easy to use thanks to the digital display. Hourly and daily production reports can be obtained from the screen.
- An intelligent fault detection system allows for the diagnosis of faults that occur in the machine via the display.
- Special coated ironing heads prevent shine on fabrics.
- Connection to central vacuum units is possible.
- All kinds of safety precautions for the user have been taken on the machine.
- The machine is controlled by PLC.
- The machine has a CE certificate.
Specifications
- Dimensions 1450 x 1580 x 1370 mm
- Weight 900 kg
- Electricity 380 V
- Power 6 kW
- Capacity 300 pcs/hr
- Compressed Air 6-8 bar
- Air Consumption 254 nl/min
