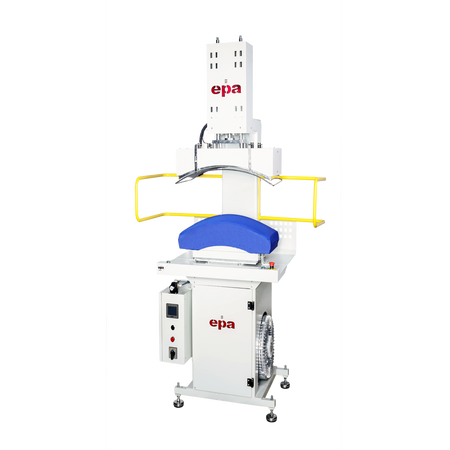

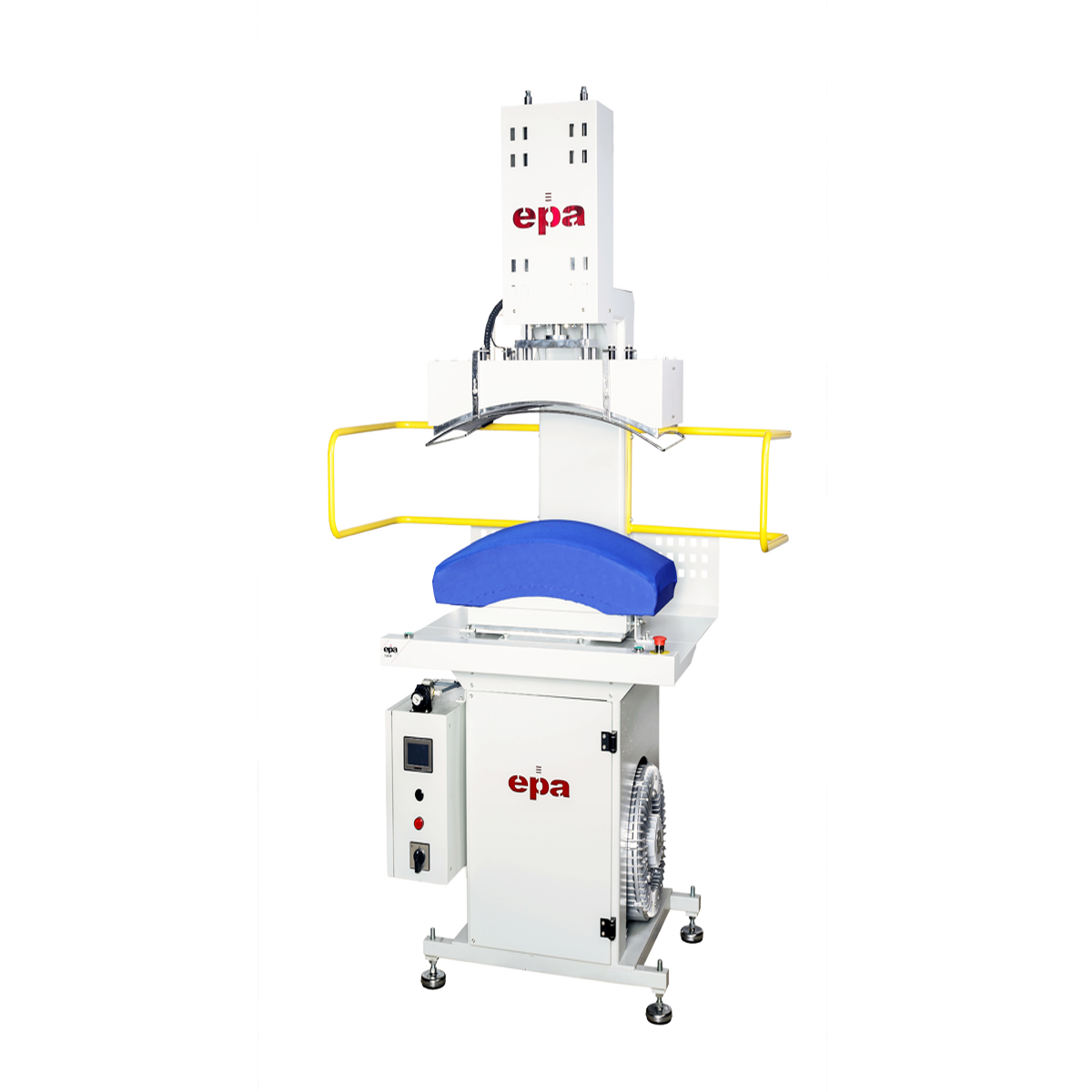

Designed for shoulder and yoke seams, the EPA 726 shapes and fuses interlinings across the back panel of shirts.
Key Features
- Back Yoke Press Machine shapes of shirts robe and shoulder stitches

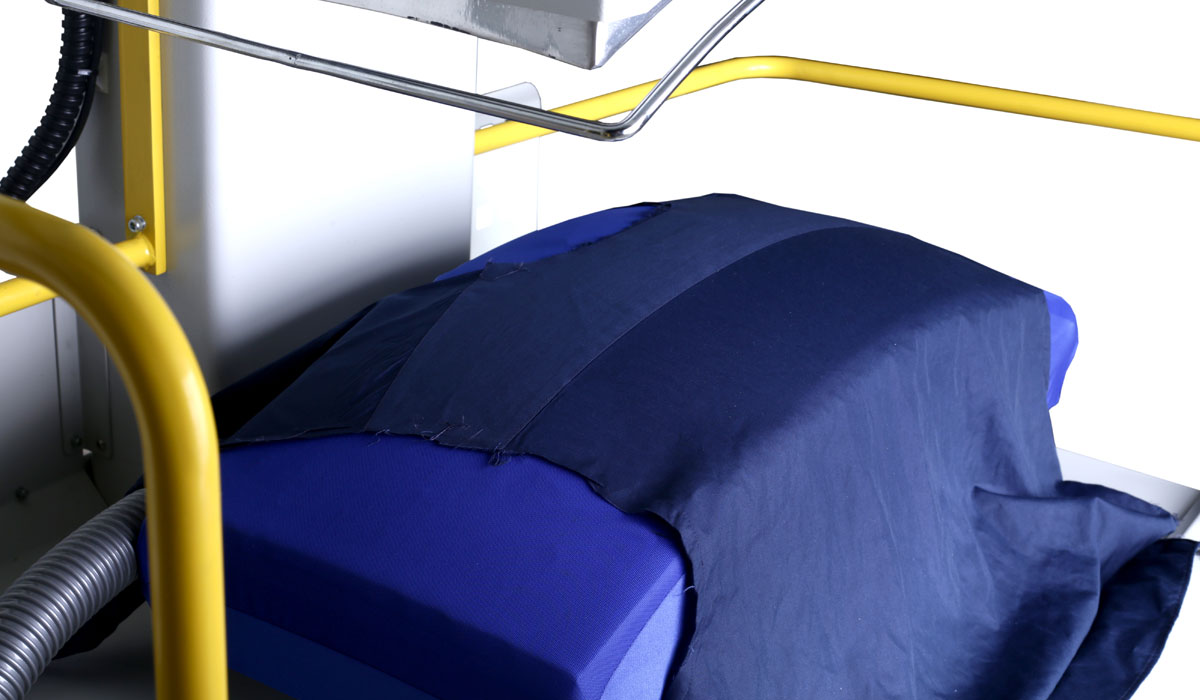

- Fuses interlinings inside of yokes and shoulders

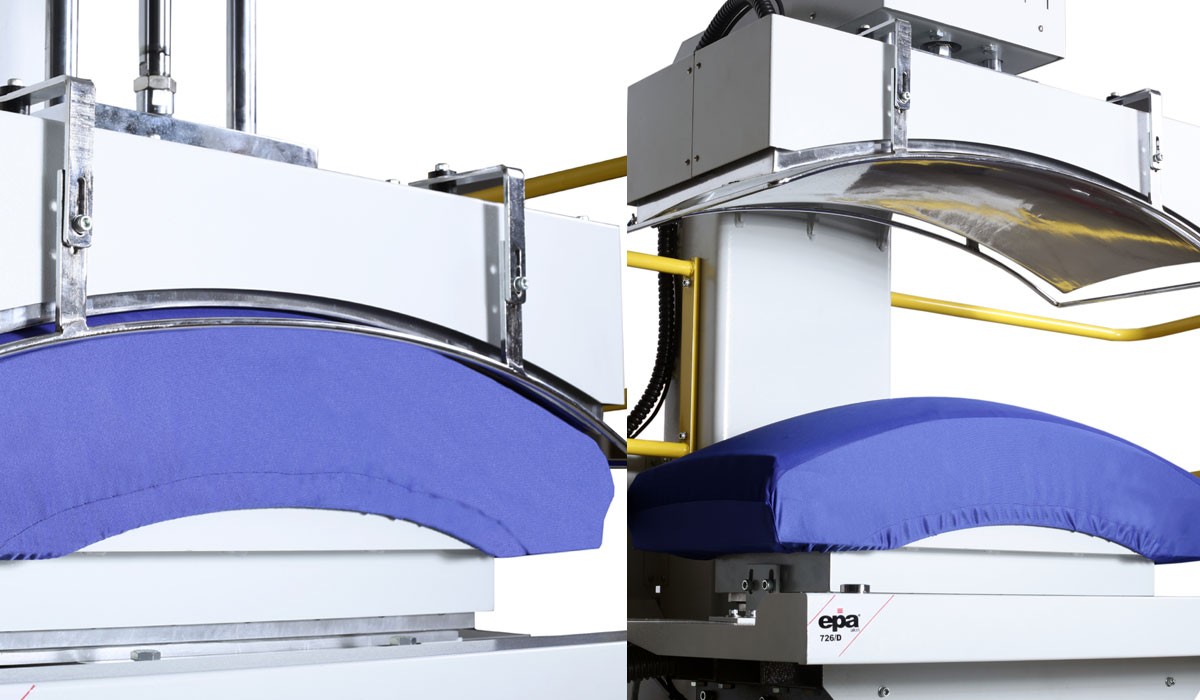

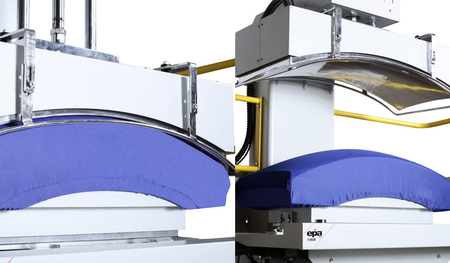

- Matches perfectly to all types of shirt robes and shoulder stitches with specially-designed upper and lower moulds
- Prevents any movement of sewing during pressing with the help of special designed up and down moulds
- Air bag ironing system delivers high efficiency at low pressure, generating no deformation on the fabric
- Pressing temperature and time settings can be adjusted according to product that will be pressed
- High vacuum lower mould
- Vacuum motor installed inside the Back Yoke Press Machine with high vacuum producing capacity
- Back Yoke Press Machine has vacuumed cooling system
- Specially designed resistors and upper pressing head allow equal heat diffusion on pressing area
- Ease of use with the digital display
- Digital screen of Back Yoke Press Machine provides hourly and daily production reports
- Smart-fault notification system enables easy detection of machinery malfunctions, trackable using the screen
- Unique resistors and computerized temperature control system provides precise heat adjustment and energy savings
- PLC (Programmable Logic Control) controlled machine
- A number of safety precautions protect the operator
- The machine has a CE certificate
Specifications
- Dimensions 700 x 1200 x 1900 mm
- Weight 240 kg
- Electricity 380 V
- Power 7 kW
- Capacity 140 pcs/hr
- Compressed Air 6-7 bar
- Air Consumption 96 nl/min
