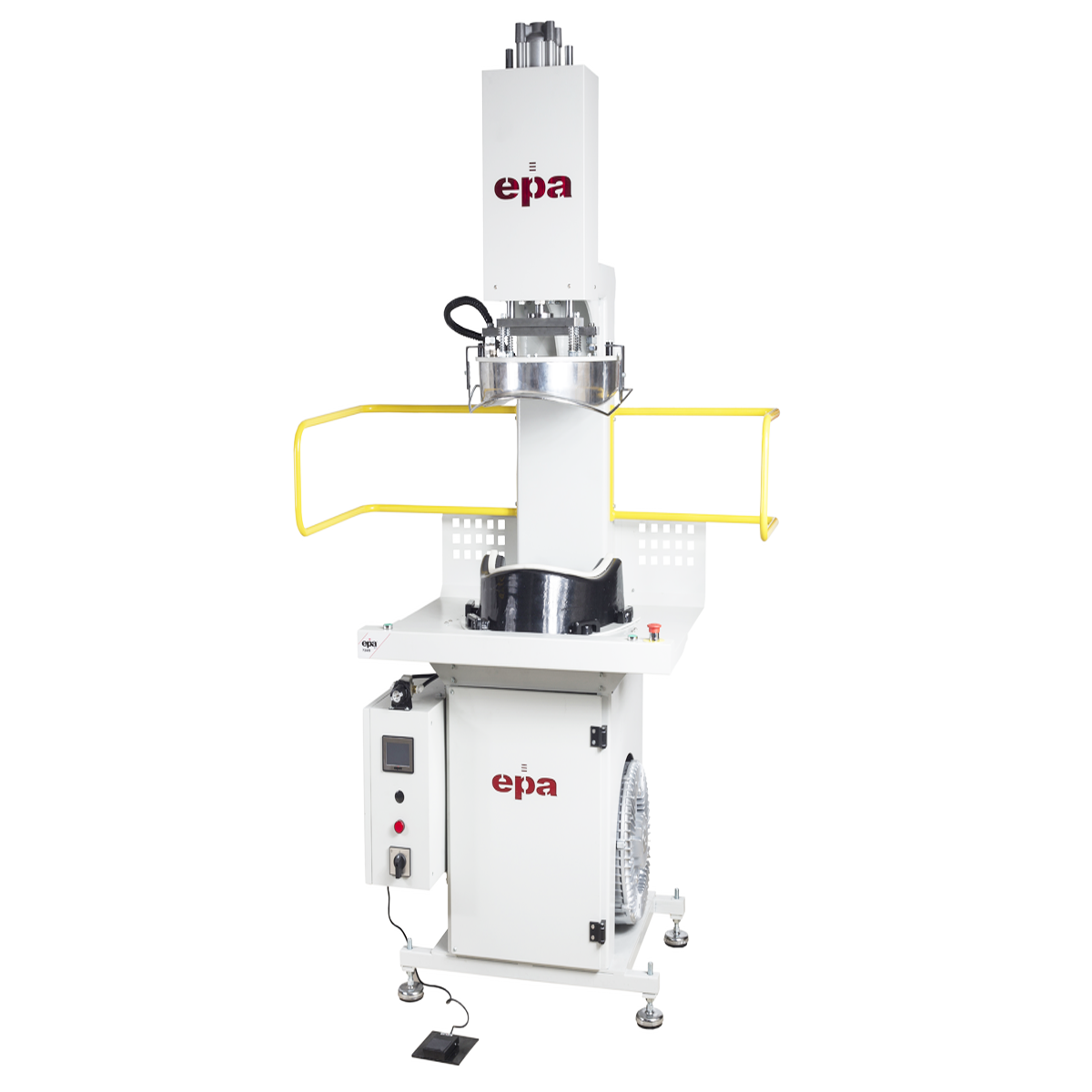

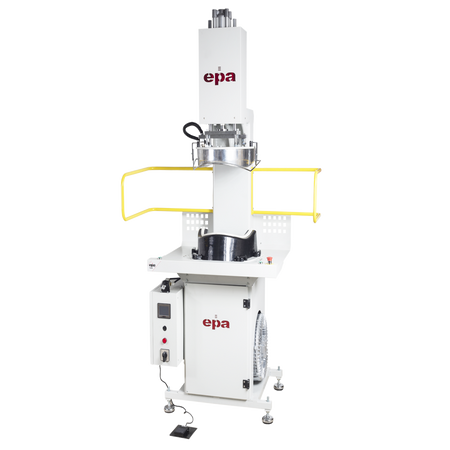

The EPA 724 irons sleeve seams and fuses interlinings to give upper arm sections a neat shape. Its vacuum cooling system locks in pressed seams quickly.
Key Features
- Presses seams over the sleeves and allows them to get the perfect form
- Shirt Arm Hole Press fuses the interlinings inside the seams over the sleeves

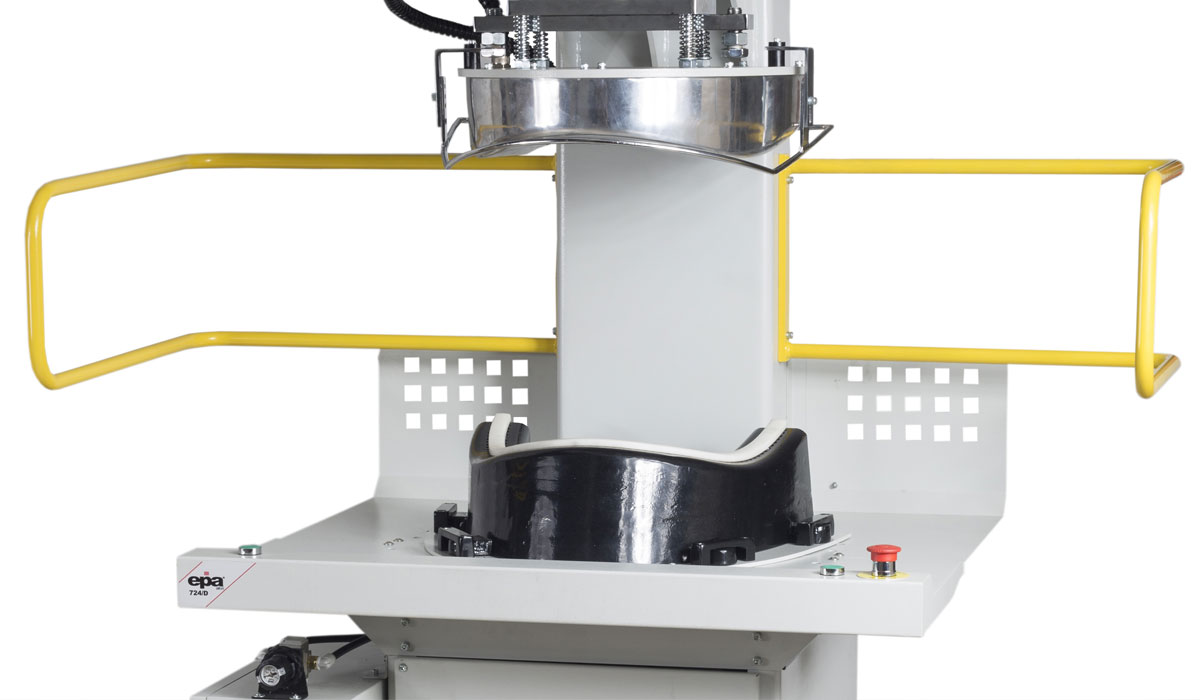

- Adapts perfectly to shirt boss seams with specially designed upper and lower moulds
- Specially designed upper and lower moulds prevent slipping of the seams during pressing
- Shirt Arm Hole Press has a high-vacuum lower mould
- Pressing heat and timing can be adjusted according to the materials that will be pressed
- Vacuum motor installed inside the Shirt Arm Hole Press machine with high vacuum producing capacity
- Vacuumed cooling system
- Specially designed resistors and upper pressing head allow equal heat diffusion on pressing area

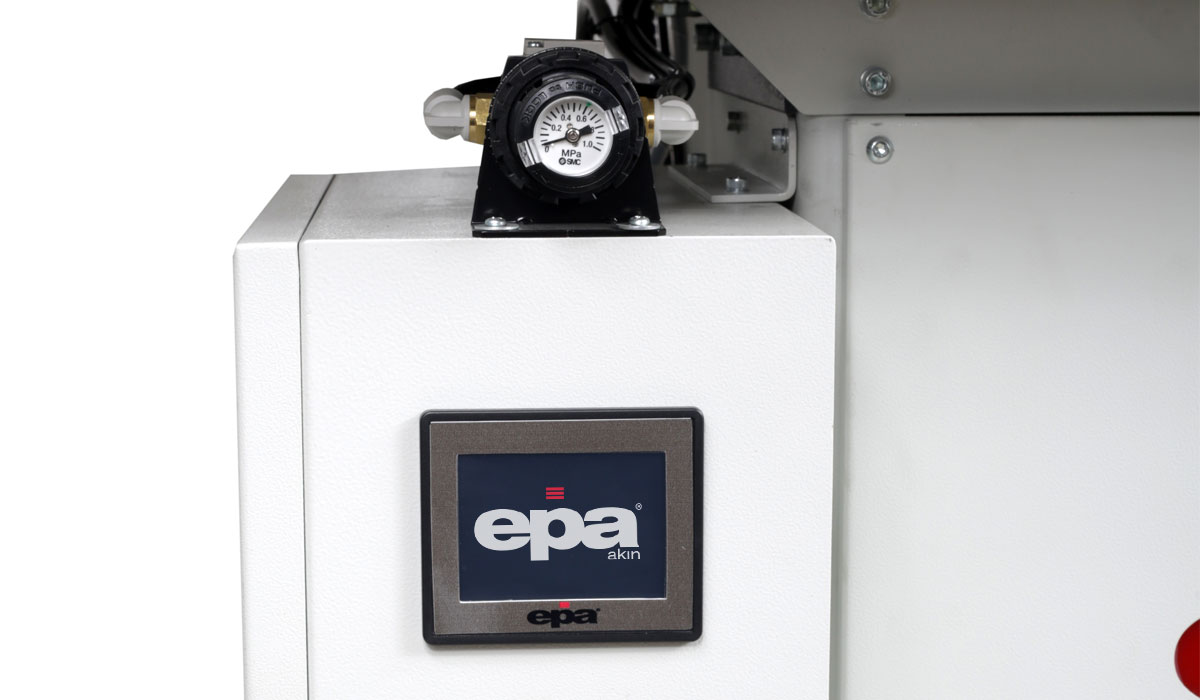

- Easy to use digital display
- Digital screen provides hourly and daily production reports
- Smart-fault notification system enables easy detection of machinery malfunctions, trackable using the screen
- Unique resistors and computerized temperature control system of our Shirt Arm Hole Press provides precise heat adjustment and energy savings
- PLC (Programmable Logic Control) controlled machine
- A number of safety precautions protect the operator
- Shirt Arm Hole Press has a CE certificate
Specifications
- Dimensions 700x1200x1900 mm
- Weight 245 kg
- Electricity 380 V
- Power 5 kW
- Capacity 150 pcs/hr
- Compressed Air 6-7 bar
- Air Consumption 130 nl/min
