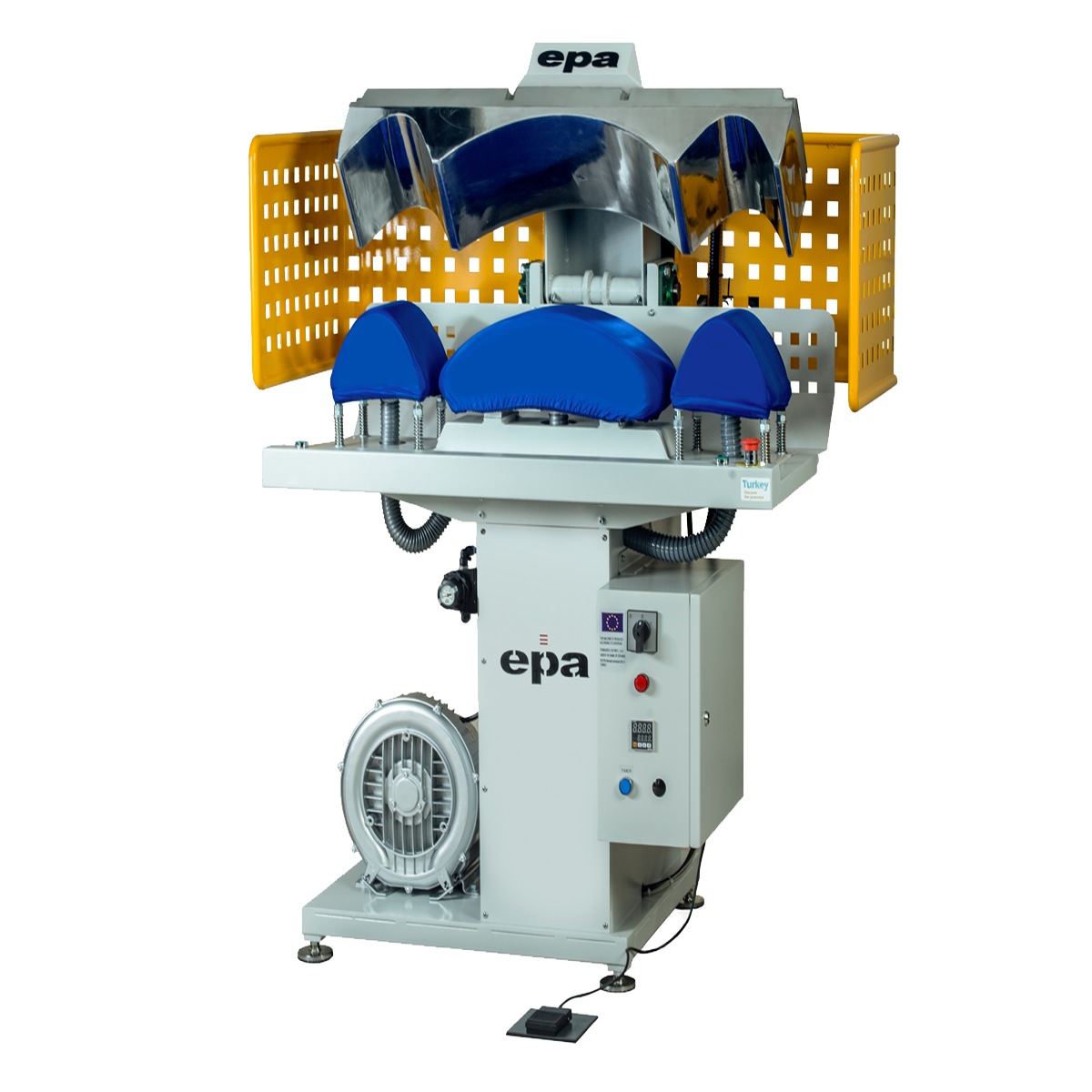

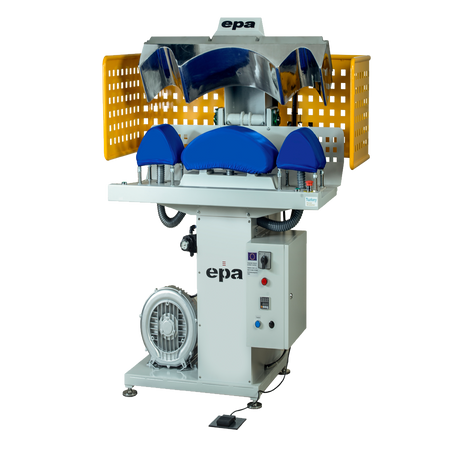

The EPA 710 shapes collars and cuffs before final open pressing. Universal molds accommodate diverse shirt styles without tooling replacements.
Key Features
- Collar and Cuff Press Machine gives the desired form to collar and cuffs before the open pressing
- Provides standardization and increases quality

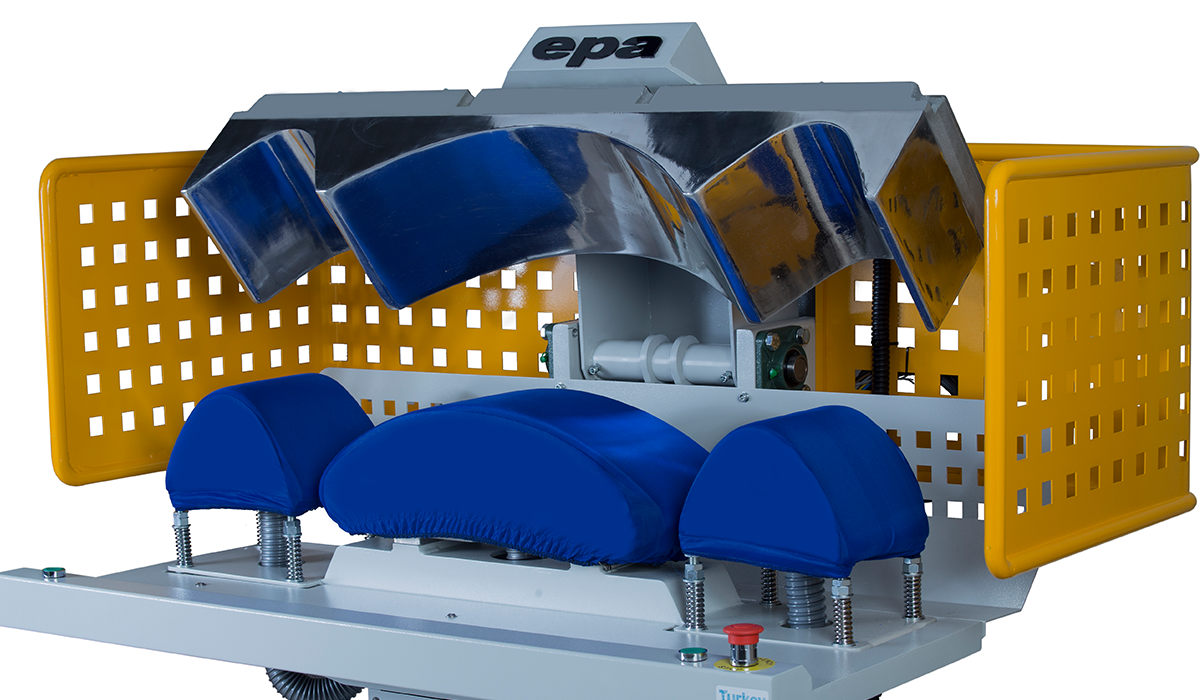

- Adapts to all kinds of shirt collars and cuffs with its universal mould
- Homogenous pressure is applied during the pressing and no deformation occurs on the fabric due to the special mould design

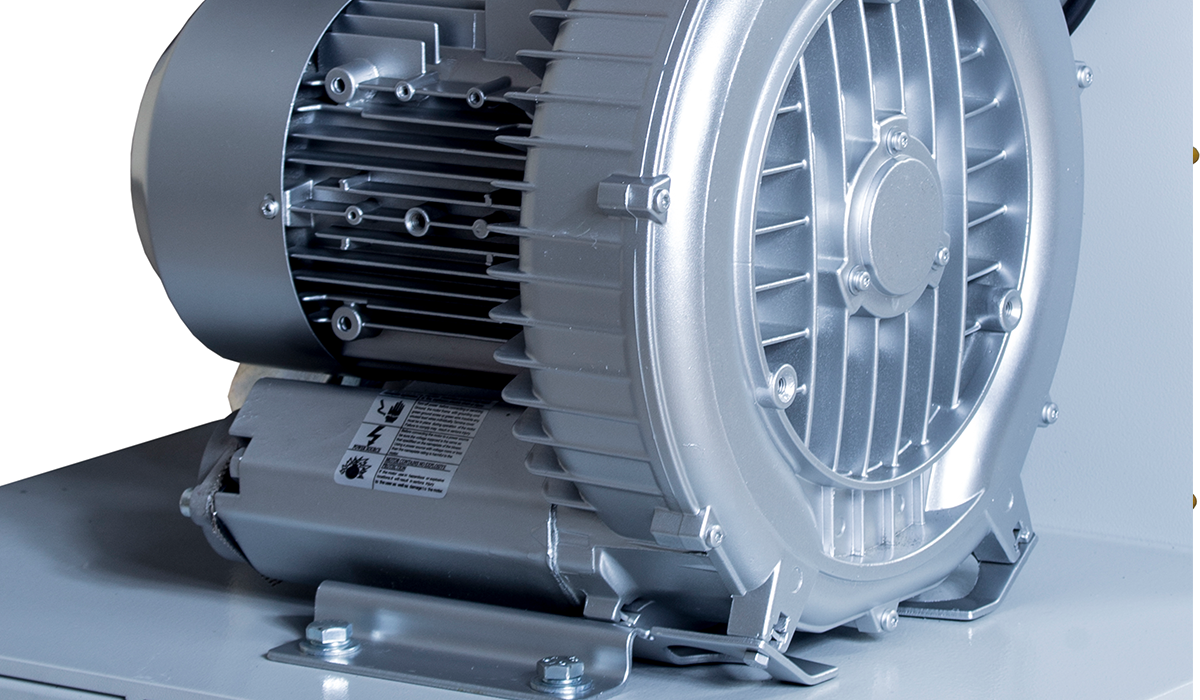

- Vacuum motor installed inside machine with high vacuum producing capacity
- Collar and Cuff Press Machine has a vacuum cooling system
- Collar and Cuff Press Machine provides maximum energy-saving with the help of adjustable temperature time, pressing control, special resistors, insulating materials, and digital thermostat
- Precise temperature settings
- PLC (Programmable Logic Control) controlled machine
- A number of safety precautions protect the operator
- Collar and Cuff Press Machine has a CE certificate
Specifications
- Dimensions 950 x 1350 x 1520 mm
- Weight 310 kg
- Electricity 380 V
- Power 5 kW

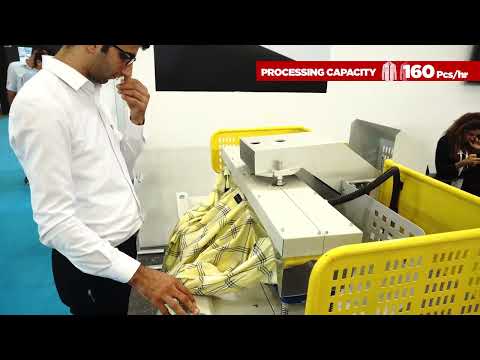

- Capacity 160 pcs/hr
- Compressed Air 6 bar
- Air Consumption 480 nl/min
