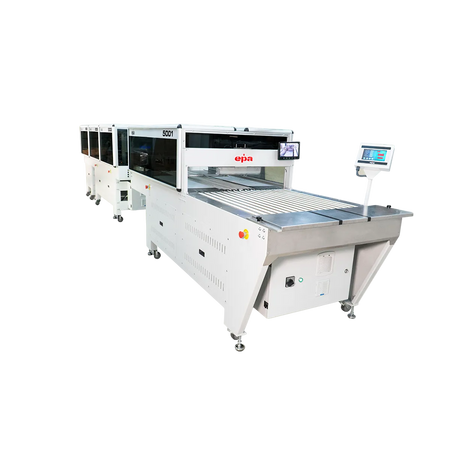

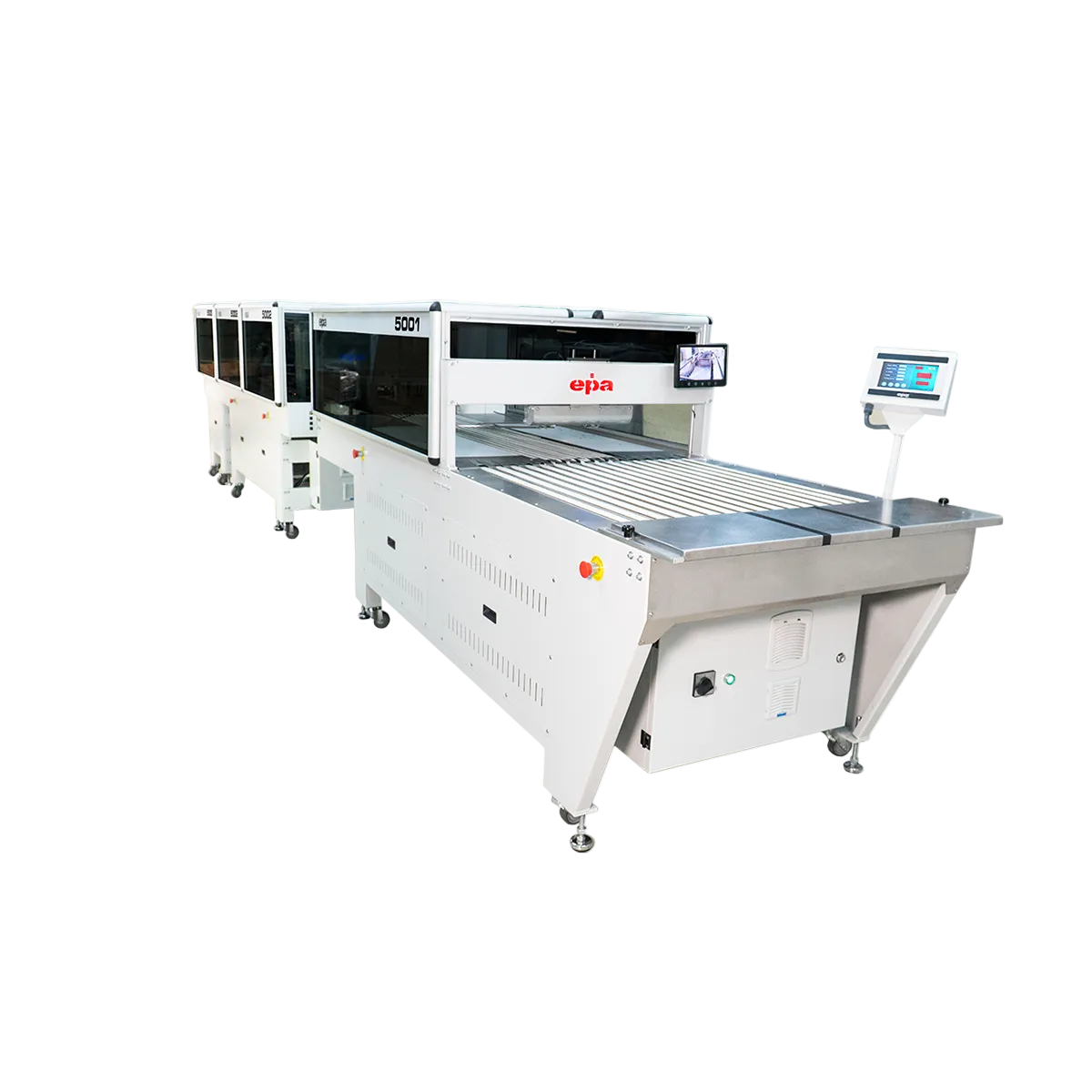

The EPA 5001 automatically folds t-shirts, hoodies, pants, and knitwear. Memory storage holds up to 1,500 preset folding programs.
Key Features
- It folds textile products such as T-shirts, sweatshirts, pajama sets, singlets, undershirts, tracksuits, knitwear, jeans and chino pants quickly and in a standard way.
- Folding shapes can be adjusted on the screen as center folding, center double folding and triple folding according to the desired folding features.
- The machine can be adapted to the desired size with a single click on the touch screen by memorizing all folding and size types up to 1500 according to the model and size number.

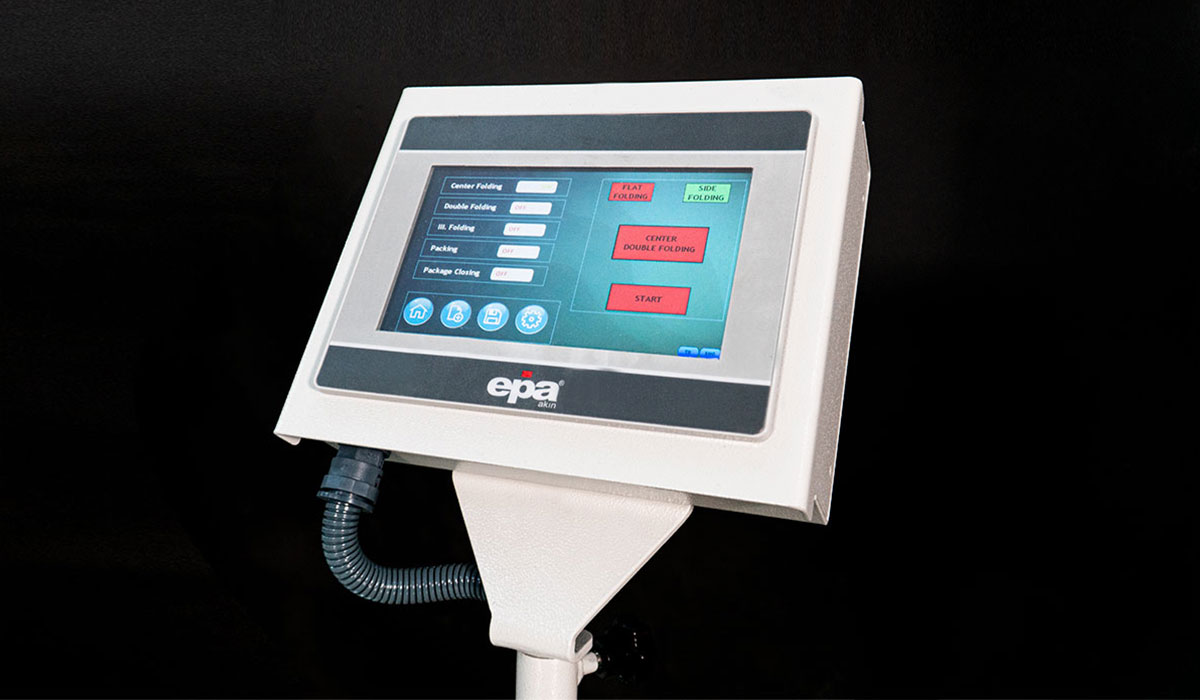

- All settings can be adjusted automatically on the screen.
- Malfunctions on the machine can be seen visually and audibly on the screen.
- Thanks to its 1000 x 1250mm large loading area, it can easily fold large sizes and clothes.
- It can also be used in small sized products thanks to its minimum 16cm width folding size.
- It can be used for folding large sized products thanks to its maximum 33 cm width folding measure.

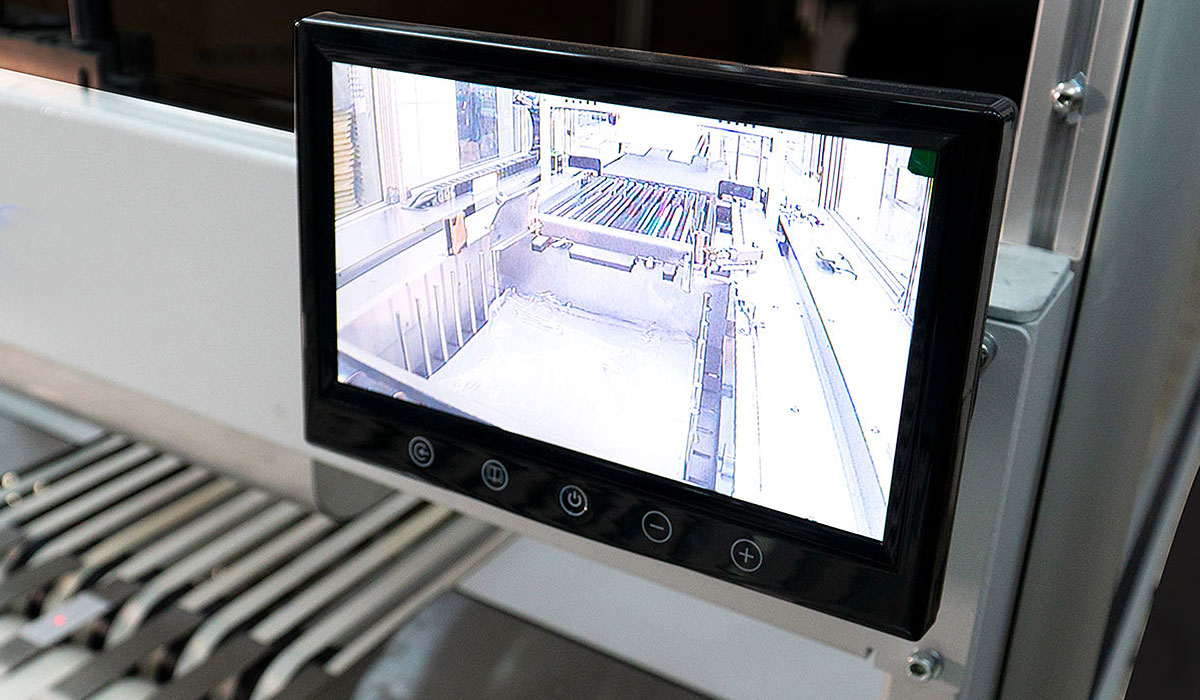

- Thanks to the HD screen, the packaging operation can be controlled in real time.
- Thanks to the automatic piece counter, the pieces and work done can be checked.
- All safety precautions have been taken for the operator.
- The machine has CE certificate.
- Center fold 650 pcs per hour, double fold 500 pcs per hour, 3 fold 350 pcs per hour
- Optional: Bagging Unit.
- Optional. Bag Mouth Coating
- Optional: Needle Unit
- Optional : Barcoding Unit
- Optional: Stacking Unit
Specifications
- Dimensions 3000 x 1190 x 1390 mm
- Weight 405 kg
- Electricity 220 V
- Power 780 kW
- Capacity 650 pcs/hr
- Compressed Air 6 bar
- Air Consumption 84 nl/min
