Equipped with an angle-adjustable platform (110° to 180°), the EPA 400-07 offers customization for unique collar angles. A touchscreen display lets operators adjust parameters effortlessly while an integrated vacuum removes cut fabric.
Key Features

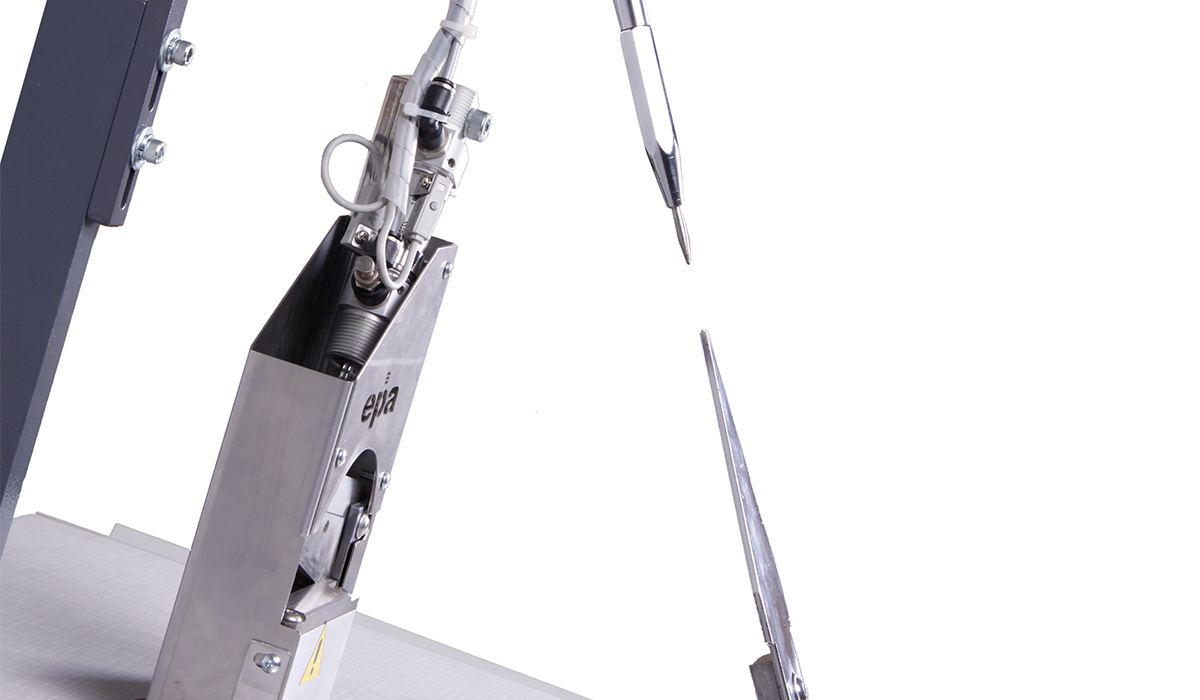

- Adjustable blade system (cutting angle can be adjusted from 110 degrees to 180 degrees)

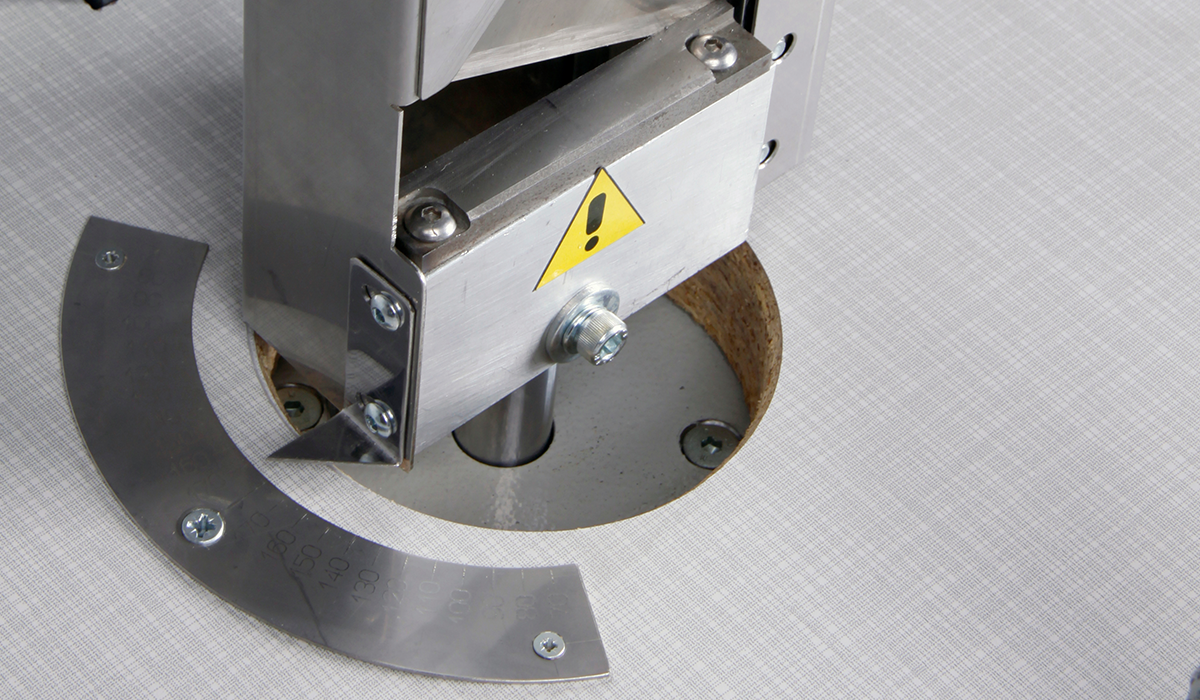

- Our Collar Trimming and Turning Machine has a platform with angle adjustment
- Special cylinder structure centers the pressure needle and follow-up mirror
- Our Collar Trimming and Turning Machine cuts without harming the collar interlining
- Gentle follow-up mirror prevents the deformation of the fabric
- High-strength, long-lasting, special alloy blades
- Vacuum cleaning system collects cut waste fabric automatically
- Machine parameters can be changed easily via the user-friendly touchscreen
- A number of safety precautions protect the operator
- Our Collar Trimming and Turning Machine with Adjustable Angle has a CE certificate
Specifications
- Dimensions 540 x 795 x 1255 mm
- Weight 40 kg
- Electricity 220 V
- Power 0.2 kW
- Capacity 340 pcs/hr
- Compressed Air 6 bar
- Air Consumption 2 nl/min
