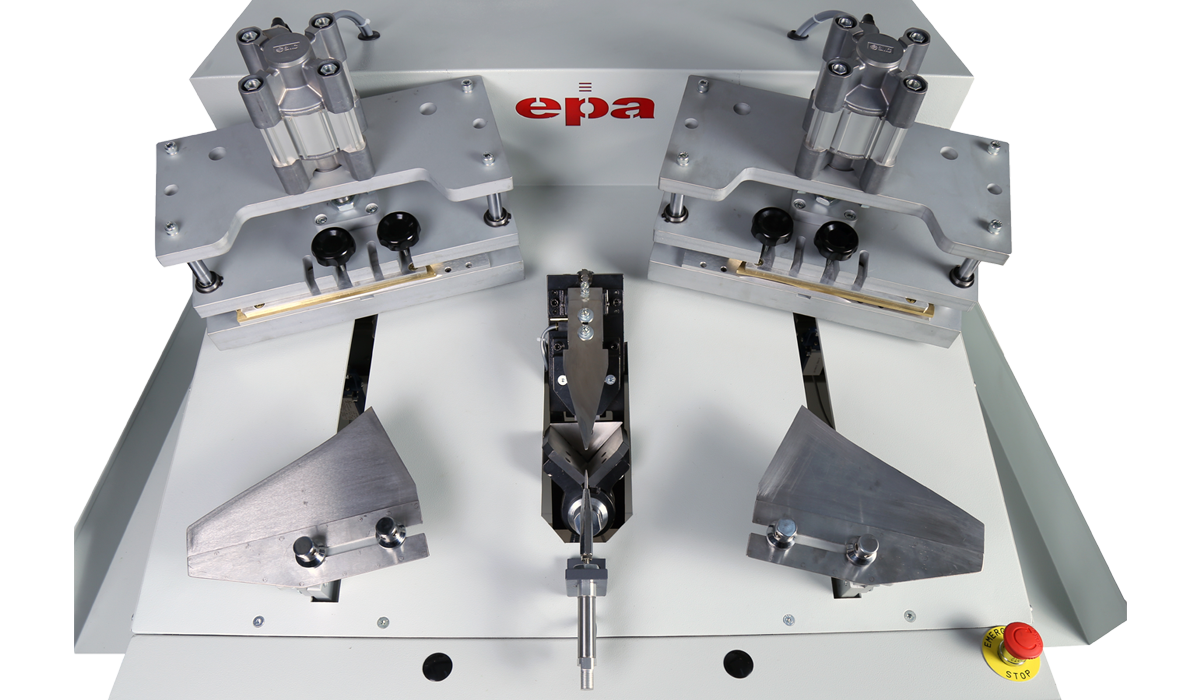

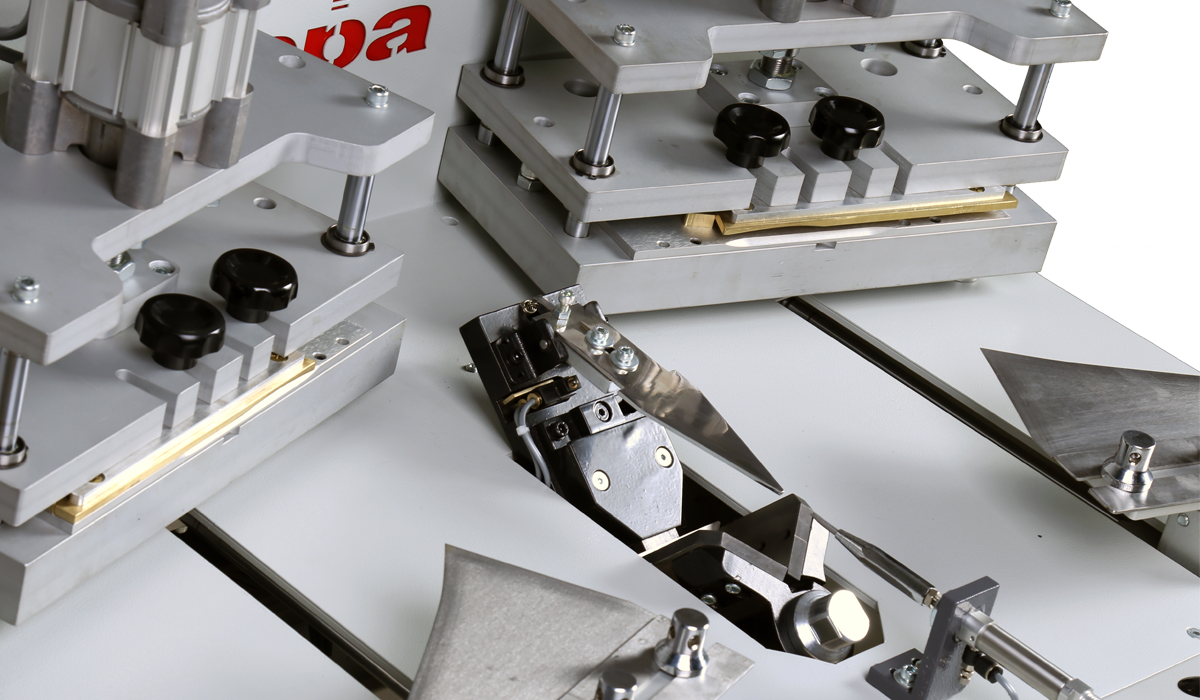

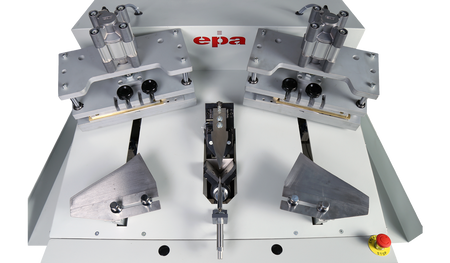

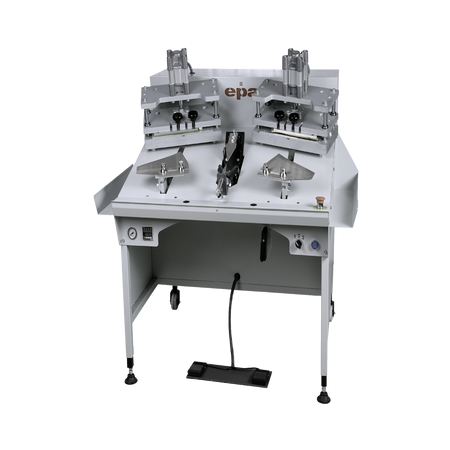

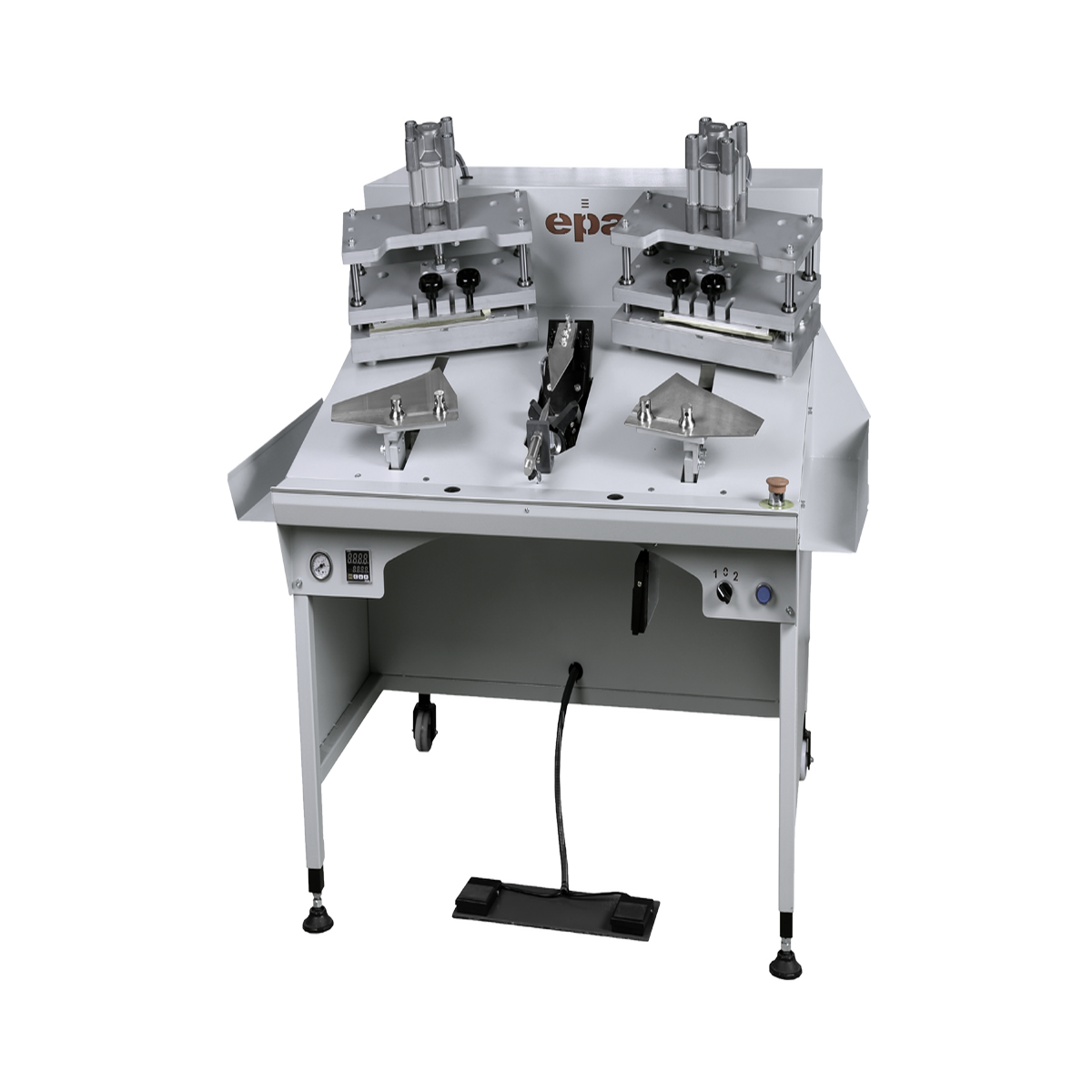

The EPA 306 combines collar trimming, turning, and blocking in a single streamlined operation. High-strength alloy blades provide precise cuts, while a gentle follow-up mirror prevents fabric deformation during high-speed processing.
Key Features

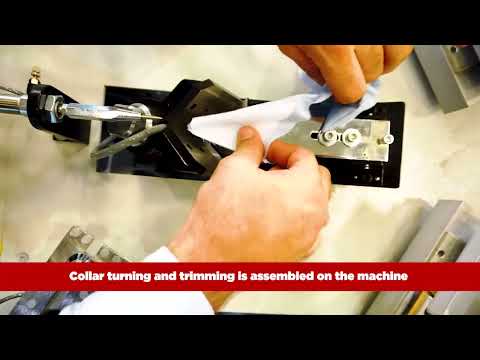

- Collar turning and trimming is assembled on the machine
- Special cylinder structure centers the pressure needle and follow-up mirror
- Gentle follow-up mirror of our Collar Trimming Turning and Blocking Machine prevents the deformation of the fabric
- Waste fabric on the knives cleaned automatically by air
- Our Collar Trimming Turning and Blocking Machine has High-strength, long-lasting, special alloy blades
- New pressing system shapes shirt and blouse collars flawlessly
- Automatic mould carrier provides perfect and standardized pressing for collar points
- Adjustable digital temperature control ensures perfect adaptation to all
- Adjustable pressing settings of Collar Trimming Turning and Blocking Machine ensure perfect results on sensitive fabrics
- Easy toggle switch for single and dual pressing
- Separate adjustable pressing time control for single and double pressing
- Collar Trimming Turning and Blocking Machine has Easy and quick mould changing system
- Optional digital display
- Optional collar holder system
- PLC (Programmable Logic Control) controlled machine
- A number of safety precautions protect the operator
- Collar Trimming Turning and Blocking Machine has a CE certificate
Specifications
- Dimensions 980 x 1290 x 1150 mm
- Weight 160 kg
- Electricity 220 V
- Power 1.5 kW
- Capacity 200 pcs/hr
- Compressed Air 6 bar
- Air Consumption 52 nl/min
