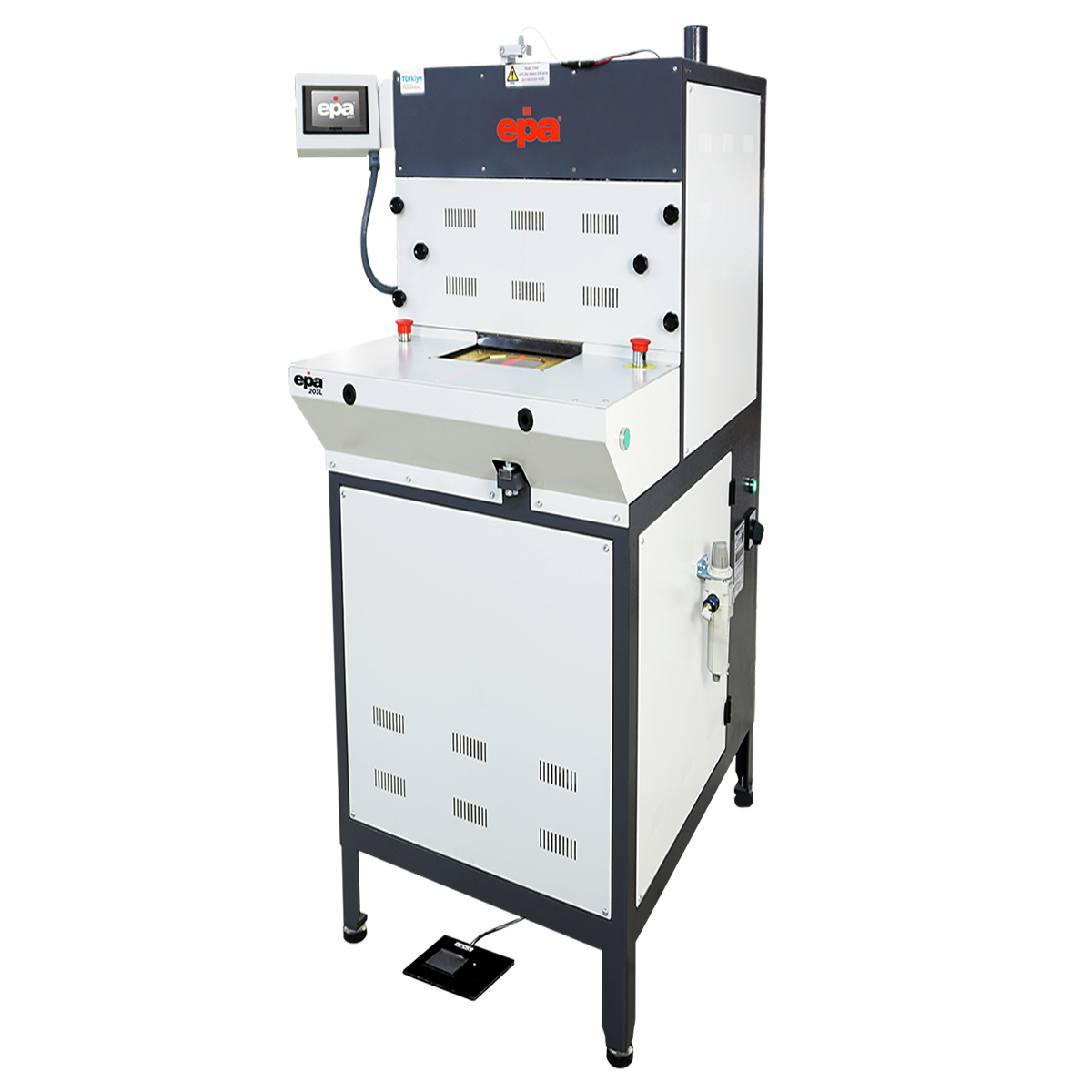

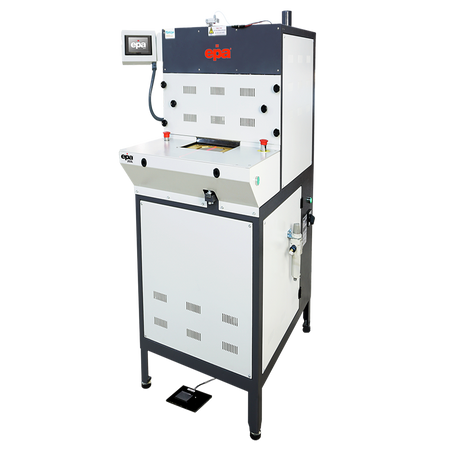

The EPA 203L creases square, triangle, and rectangle pockets. Equipped with laser tracing for striped fabric alignment and auto stacking.
Key Features
- EPA 203L perfectly irons and creases pockets and prepares the pockets to be worn on the shirts

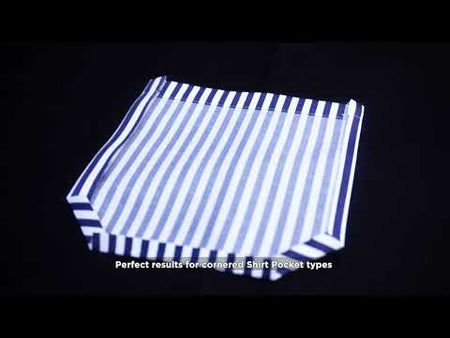

- Perfect results for cornered Pocket types
- Pocket Creasing Machine presses and creases shirt pockets in desired sizes
- Easy and rapidly changable wide range of moulds for triangle and rectangle shirt pockets or yoke labels
- Ensures perfect and standard ironing of the pockets with its automatic mould drive
- Pocket Creasing Machine features an Oil-free operation system

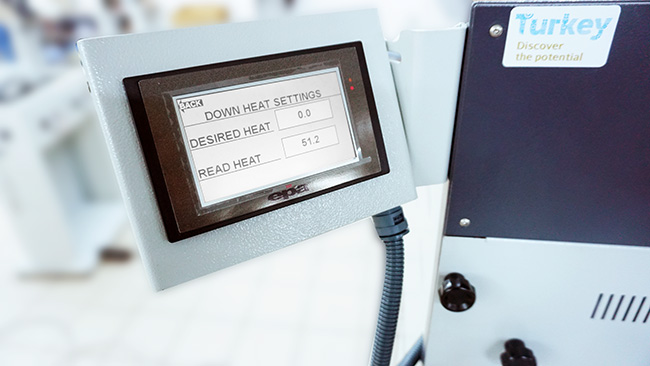

- Easy to use digital display
- Easy to Use Digital screen provides hourly and daily production reports

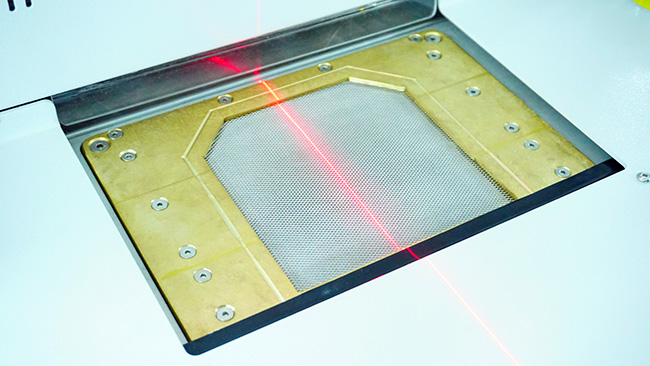

- Laser attachment provides easy stripe tracing, leading to excellent results during pressing of striped fabrics
- EPA 203L achieves processing capacity of 300 pcs an hour.
- Automatic stacking system for easy handling
- Unique resistances and computerized temperature control system of EPA 203L provides precise heat adjustment and energy savings
- PLC (Programmable Logic Control) controlled machine
- A number of safety precautions protect the operator
- Smart-fault notification system of EPA 203L enables easy detection of machinery malfunctions, trackable using the screen
- Machine has CE certificate
Specifications
- Dimensions 950 x 1030 x 1450 mm
- Weight 265 kg
- Electricity 380 V
- Power 7 kW
- Capacity 300 pcs/hr
- Compressed Air 6 bar
- Air Consumption 47 nl/min
