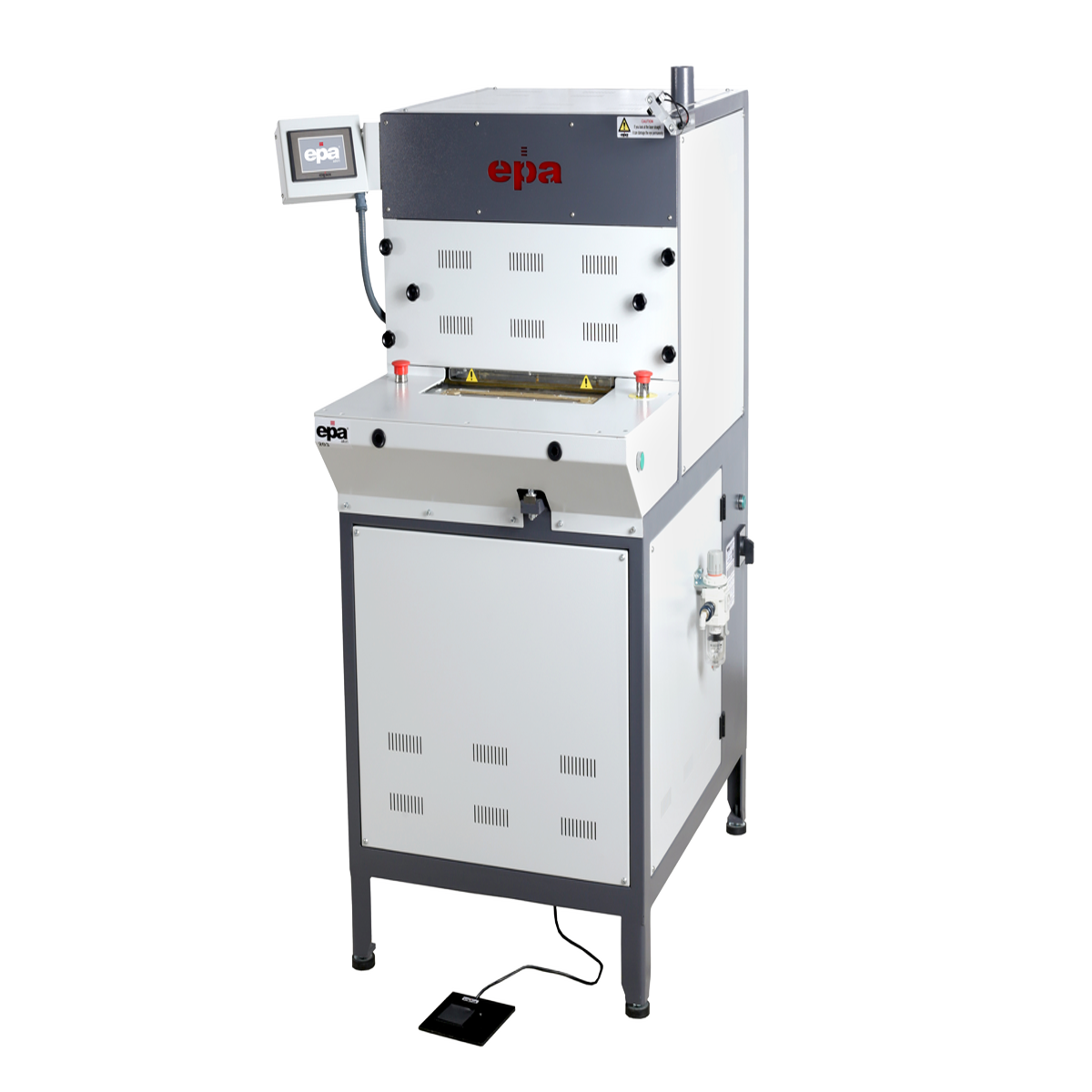

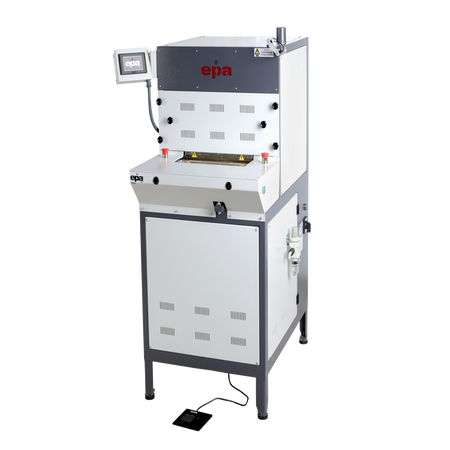

The EPA 203 creases sleeve plackets, side seams, and pocket labels. Laser guidance assists operators when processing striped or check fabrics.
Key Features
- Sleeve Placket Creasing Machine presses sleeve plackets, bindings, and shirt side seams in desired sizes
- Our Sleeve Placket Creasing Machine is capable of pressing triangle and square labels, plus yoke labels
- Adjustable trace needles speed up and standardize production during assembly stage
- Seam allowances can be set as desired
- Sleeve Placket Creasing Machine features an Oil-free operation system

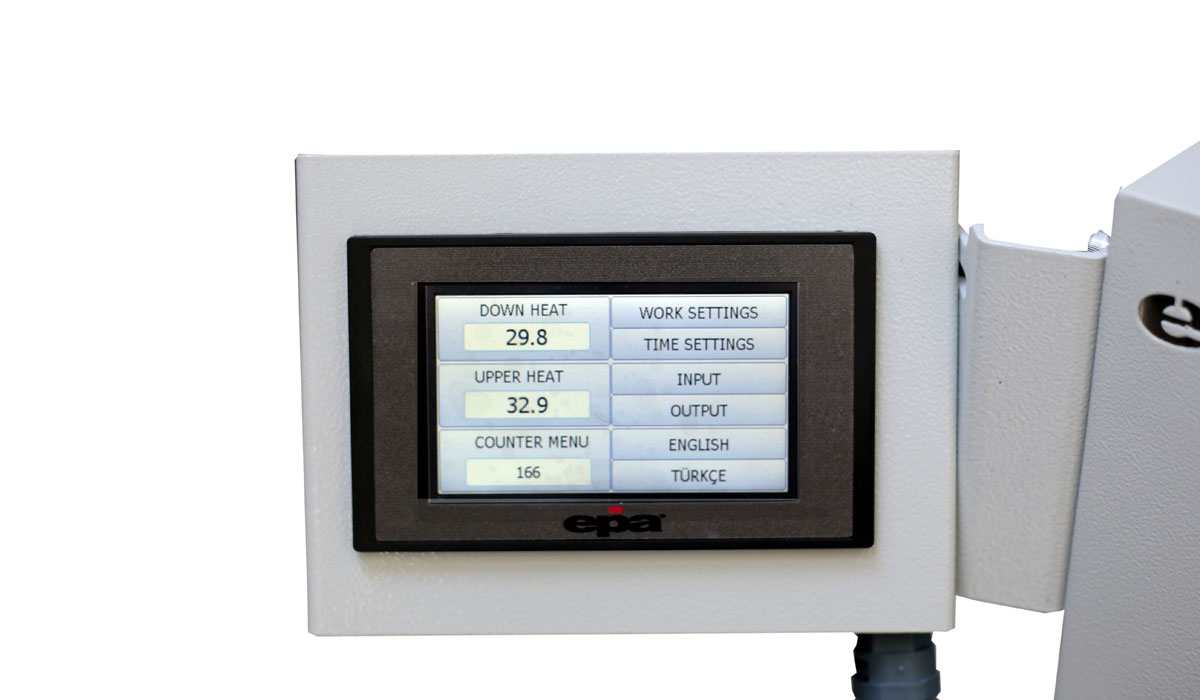

- Easy to use digital display
- Digital screen provides hourly and daily production reports
- Smart- fault notification system of Sleeve Placket Creasing Machine enables easy detection of machinery malfunctions, trackable using the screen
- Laser attachment provides easy stripe tracing, leading to excellent results during pressing of striped fabrics
- Automatic stacking system
- Unique resistances and computerized temperature control system of Sleeve Placket Creasing Machine provides precise heat adjustment and energy savings
- PLC (Programmable Logic Control) controlled machine
- A number of safety precautions protect the operator
- Sleeve Placket Creasing Machine has a CE certificate
Specifications
- Dimensions 1450 x 1580 x 1370 mm
- Weight 900 kg
- Electricity 380 V
- Power 6 kW
- Capacity 300 pcs/hr
- Compressed Air 6-8 bar
- Air Consumption 254 nl/min
