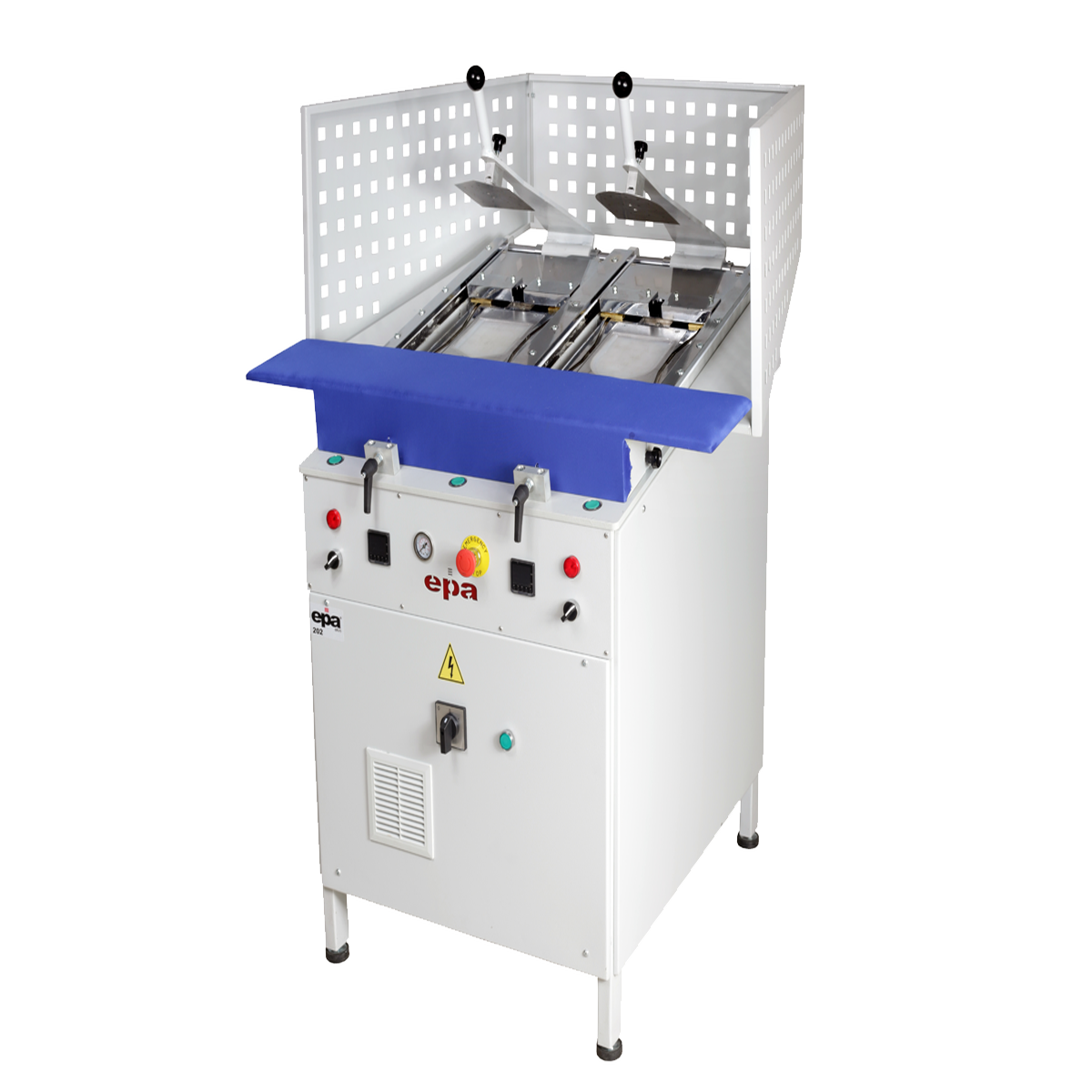

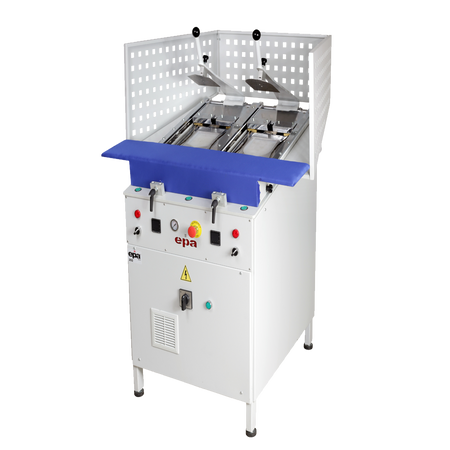

The EPA 202 creases shirt pockets and short plackets across two independent pressing stations.
Key Features
- Pocket Creasing Machine presses shirt pockets and prepares them for sewing

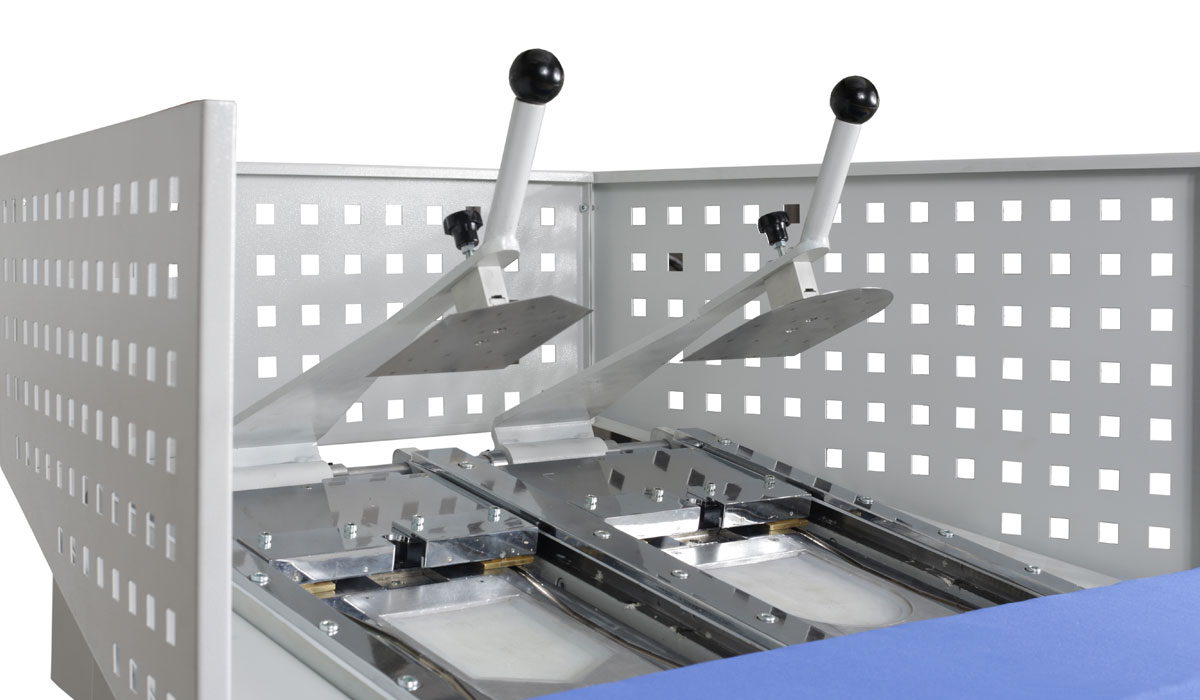

- Two pressing surfaces
- Pocket Creasing Machine is used for folding and pressing of short plackets of shirts and combed cotton garments
- Wide range of mould options provide fast and standard production
- Pocket Creasing Machine has an easy and fast mould changing system
- Pressing heads work independently from one another
- Heat settings and pressing times can be set independently

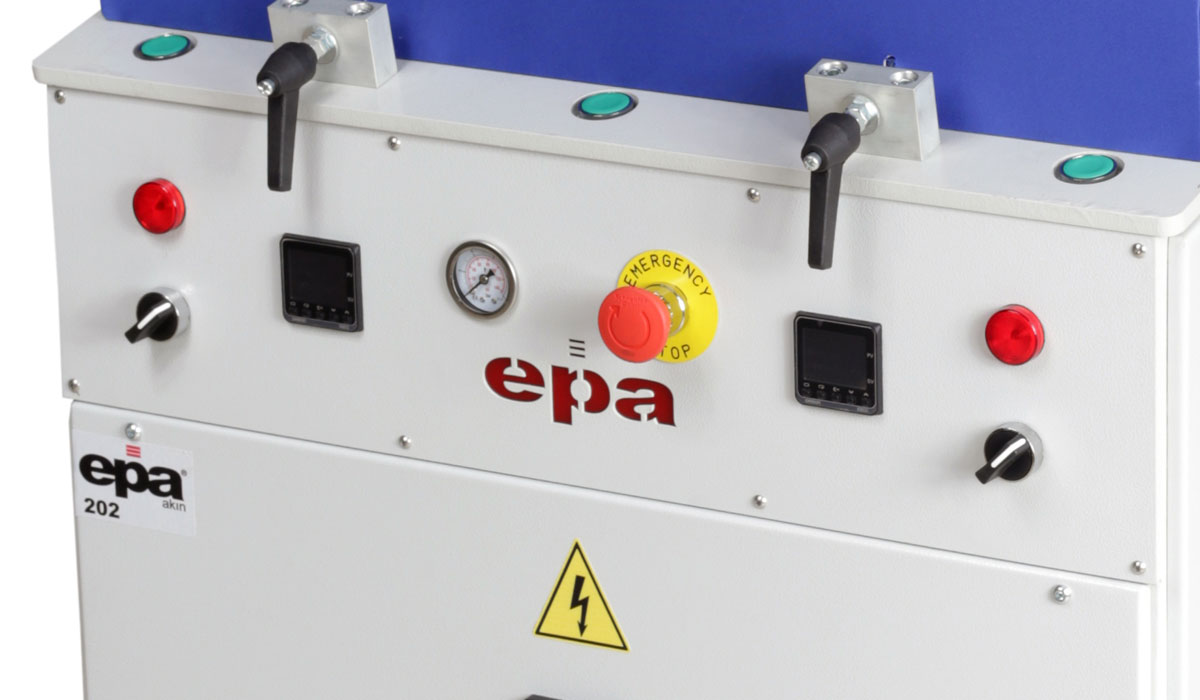

- Adjustable digital temperature control of Pocket Creasing Machine ensures perfect adaptation to all types of fabrics for excellent ironing quality
- PLC (Programmable Logic Control) controlled machine
- A number of safety precautions protect the operator
- Pocket Creasing Machine has certificate of CE
Specifications
- Dimensions 1015 x 1025 x 1390 mm
- Weight 200 kg
- Electricity 220 V
- Power 5 kW
- Capacity 400 pcs/hr
- Compressed Air 6 bar
- Air Consumption 145 nl/min
