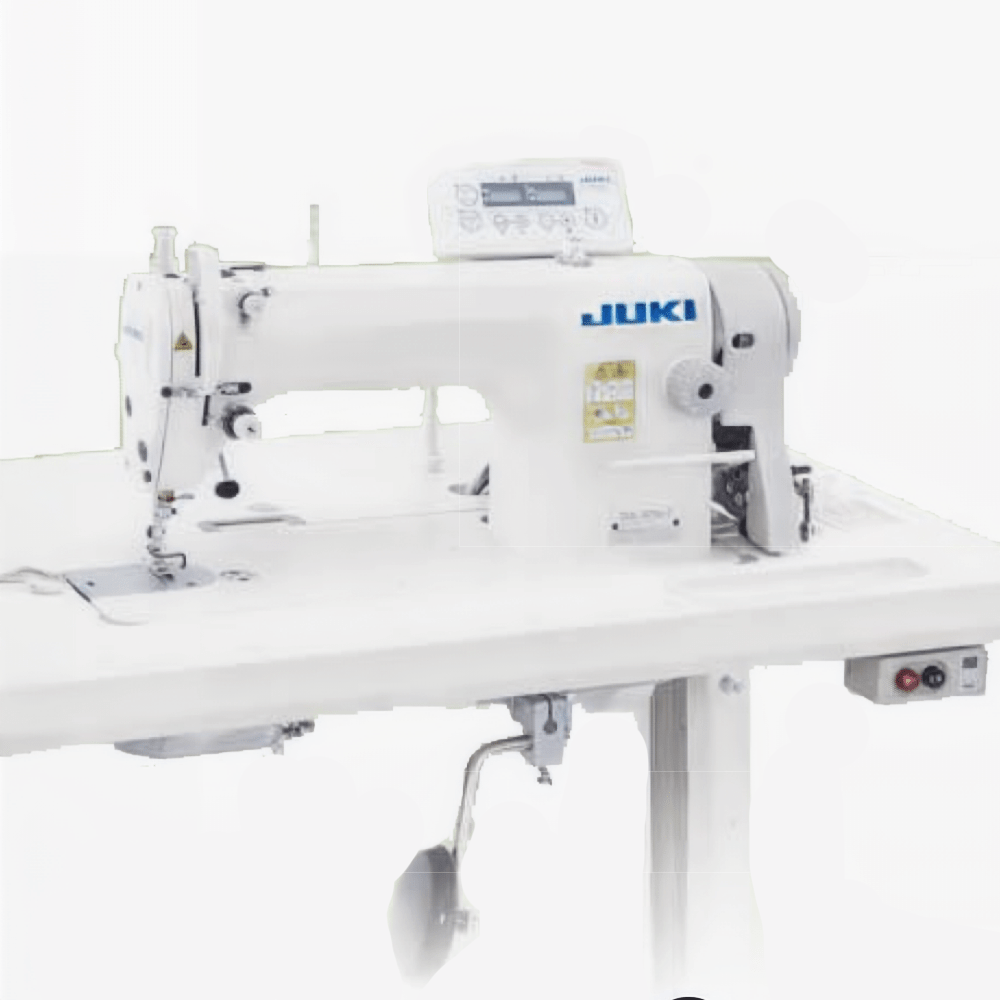

Juki DDL-8700-7/SC-920C/M92 – 1-needle, Lockstitch Machine with Automatic Thread Trimmer
Regular price
$2,353.20 USD
Freight charges will be determined and collected at the time of shipping.
To learn more about available configurations and optional accessories, contact our specialist Rob Patterson.
Rob Patterson
A reliable and efficient choice for professional sewing environments, the JUKI DDL-8700-7 is a 1-needle lockstitch machine equipped with an automatic thread trimmer and enhanced control system. Built for precision and operator comfort, it offers high-speed stitching, low vibration, and smooth handling across a variety of fabrics. Paired with the SC-920C control box and M92 compact servomotor, this model provides exceptional energy savings, quiet operation, and useful production support functions like stitch speed tracking, bobbin usage monitoring, and productivity targets. Ideal for medium-weight materials, it ensures clean seams, consistent performance, and long-term durability.
Key Features:
- Automatic thread trimming for efficient, uninterrupted sewing.
- Semi-dry lubrication system helps prevent oil stains on fabrics.
- Built-in energy-saving features reduce standby power consumption by up to 25%.
- Advanced control panel supports real-time productivity tracking and maintenance alerts.
- High presser foot lift and wide work area for operator comfort and better material handling.
Technical Specifications:
- Application: Medium-weight fabrics
- Stitch Type: Lockstitch
- Number of Needles: 1
- Max Sewing Speed: 5,000 stitches per minute
- Max Stitch Length: 0.2 in (5 mm)
- Needle Bar Stroke: 1.21 in (30.7 mm)
- Presser Foot Lift: By hand: 0.22 in (5.5 mm) / By knee: 0.51 in (13 mm)
- Needle System: DB×1 (#14), recommended range: #9–#18
- Feed Dog: 4-row
- Hook: Full-rotary, automatic-lubricating hook
- Lubrication: Automatic
- Lubricating Oil: JUKI Machine Oil 7 (ISO VG7 equivalent)
- Automatic Reverse Feed: Provided as standard
- Control Box: SC-920C
- Motor Type: Compact-size servomotor M92 (450W)
- Power Requirement: Single-phase 100–240V or 3-phase 200–240V
- Power Consumption: Approx. 320 VA
- Weight: Machine head: Approx. 66.1 lbs / With automatic lifter: 77.2 lbs
- Control Box: Approx. 6.6 lbs
- Motor: Approx. 7.7 lbs
Enhance you setup with these Optional Add-ons:
- T500000-525: Durable stand for stable operation.
- T003204-009: 20" x 48" Table top for spacious and efficient workspace.
Why Choose the DDL-8700-7?
Reliable, efficient, and easy to operate — the DDL-8700-7 delivers high-speed performance with automatic features that boost productivity and reduce operator fatigue. Built for medium-weight materials, it’s a smart, durable choice for any professional sewing setup.
