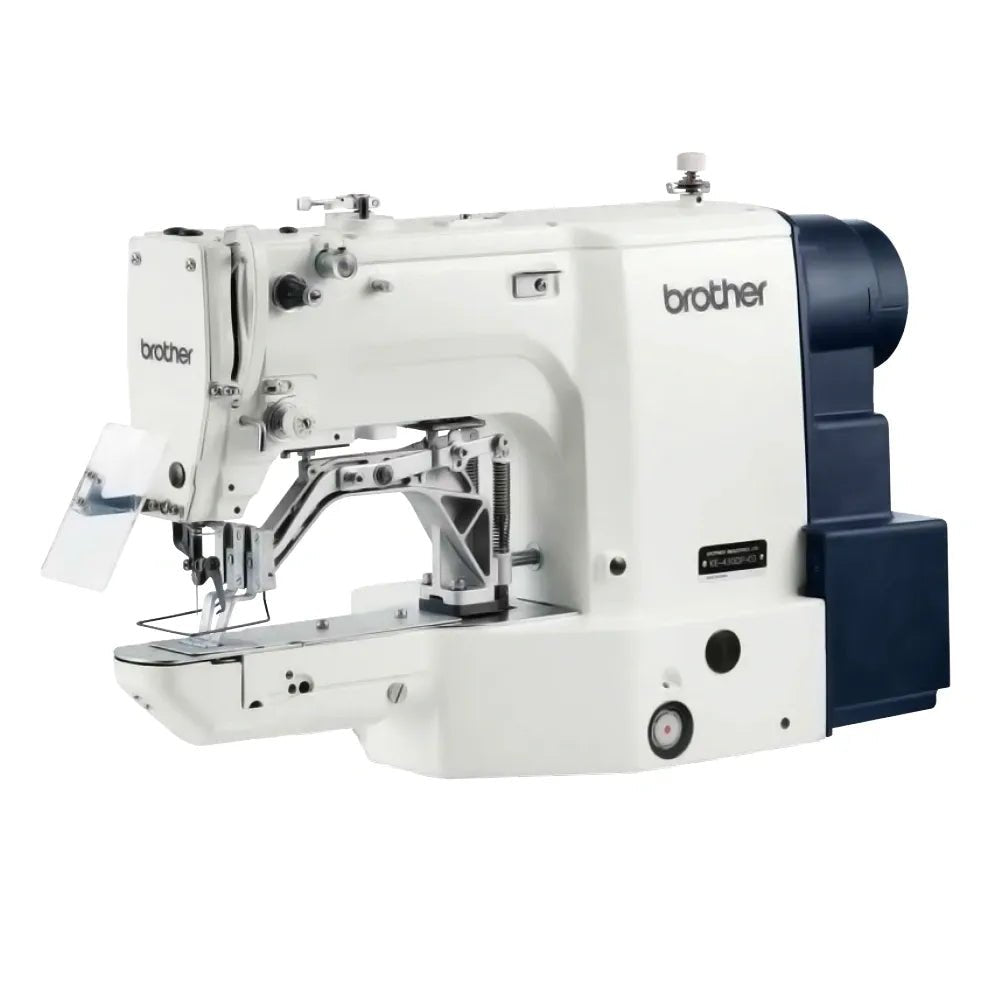

Brother KE-430DP03 side view on a white background

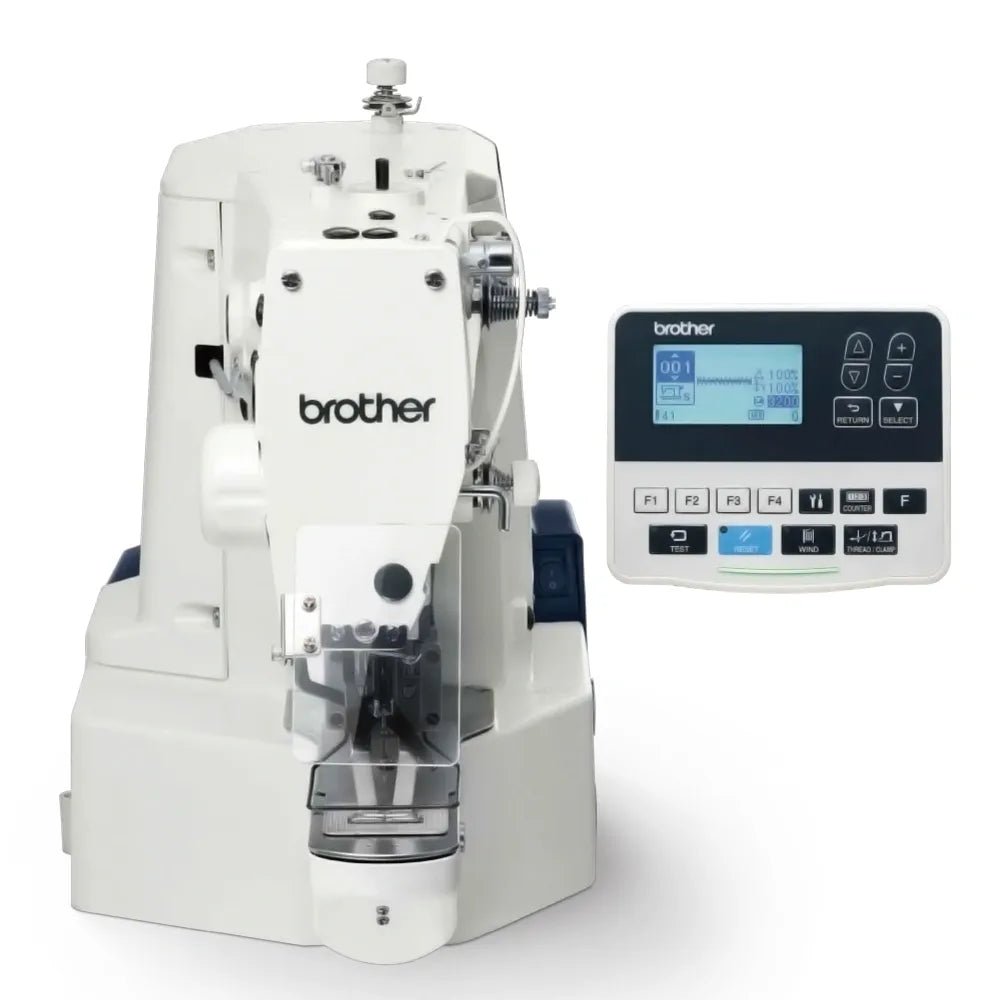

Front view of a Brother KE-430DP on a white background with a close up of the digital panel
Brother KE-430DP03 side view on a white background
Front view of a Brother KE-430DP on a white background with a close up of the digital panel
Brother

Brother KE430DP Electronic Direct Drive Lockstitch Bar Tacker

SKU: KE430DP-03
Application
$3,252.30 USD
Pricing Notice: Final pricing may vary based on configuration. To request a custom quote or explore available options and accessories, please contact our specialist, Rob Patterson.
Freight charges are calculated and collected at the time of shipment. Prices may exclude duty and applicable tariffs. Pricing shown applies to U.S. customers only; please contact customer service or request more information below for international or region-specific pricing.

* Please include your shipping location in the comment section.

Rob Patterson

Email +1 270-887-5066

The Brother KE430DP is a high-speed, programmable pattern sewing machine engineered for clean, precise stitching on medium to heavy-weight materials. Designed with a semi-dry head system, this model supplies clean oil only to the hook, eliminating oil stains around the needle bar and thread take-up, even at high sewing speeds of up to 3,200 stitches per minute.

Built for ease of operation and efficient production, the KE430DP features an all-in-one head design, with the control box mounted directly on the machine head. This compact configuration simplifies installation, reduces setup time, and enhances overall reliability. With advanced pulse-motor-driven feed mechanisms and programmable pattern control, this machine delivers exceptional accuracy, consistency, and productivity in industrial sewing applications.

Key Features Included:

  • High-Speed Clean Sewing: Operates at up to 3,200 stitches per minute with a semi-dry head system to prevent oil contamination.
  • Semi-Dry Head Design: Clean oil is supplied only to the hook, keeping the needle bar and thread take-up area oil-free.
  • Programmable Pattern Sewing: Supports multiple stitch patterns with precise control and repeatability.
  • Easy Handling & Setup: Control box is mounted on the machine head for quick installation and simplified operation.
  • Pulse Motor Feed Mechanism: Ensures accurate and stable fabric feeding for complex sewing patterns.
  • Work Clamp System: Pulse motor-driven clamp with a maximum lift of 17 mm for secure material positioning.
  • Automatic Functions: Includes standard thread trimmer and thread wiper for clean finishes and reduced manual handling.
  • Energy-Efficient Operation: Powered by a 750W AC servo motor for smooth, quiet, and reliable performance.

Specifications and Dimensions:

  • Model/Application: KE430DP-03 for Medium materials
  • Model/Application: KE430DP-05 for Heavy materials
  • Stitch Type: Single-needle lockstitch
  • Max. Sewing Speed: 3,200 stitches/min
  • Max. Sewing Area: 40 × 30 mm
  • Stitch Length: 0.1 – 12.7 mm
  • Feed Mechanism: Y-6 intermittent feed (pulse motor driven)
  • Work Clamp Drive: Pulse motor drive system
  • Work Clamp Lift: Max. 17 mm
  • Hook: Shuttle hook
  • Thread Wiper: Standard equipment
  • Thread Trimmer: Standard equipment
  • Data Storage: Internal flash memory (external memory supported)
  • Motor: AC Servo Motor, 750W (Direct Drive)
  • Machine Head Weight: Approx. 52 kg (115 lbs)
  • Power Supply: 1-phase 200–240V, 600VA

Ships Unassembled - FOB Japan
