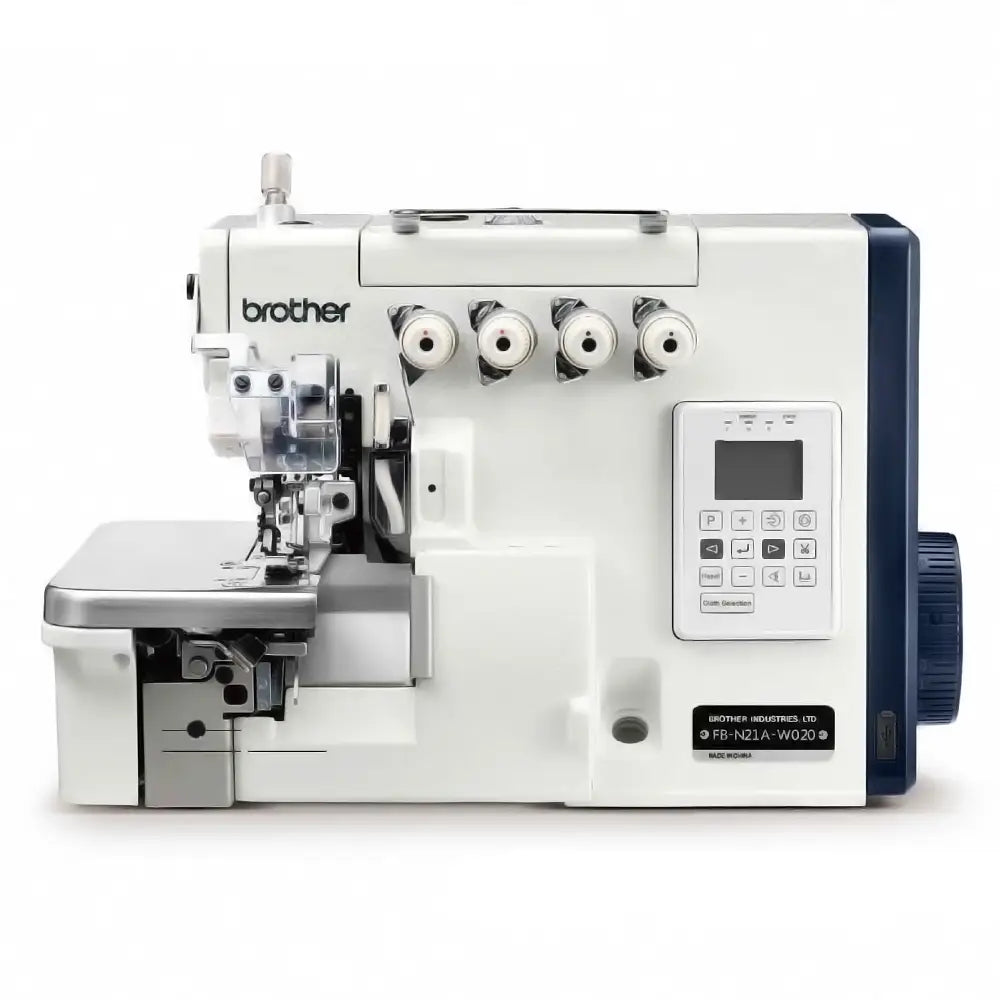

Brother FB-N21A on a white background
Brother FB-N21A on a white background
Brother

Brother FB-N21A High Speed Overlock Sewing Machine

$1,443.00 USD
Pricing Notice: Final pricing may vary based on configuration. To request a custom quote or explore available options and accessories, please contact our specialist, Rob Patterson.
Freight charges are calculated and collected at the time of shipment. Prices may exclude duty and applicable tariffs. Pricing shown applies to U.S. customers only; please contact customer service or request more information below for international or region-specific pricing.

* Please include your shipping location in the comment section.

Rob Patterson

Email +1 270-887-5066

The Brother FB-N21A is a high-productivity, easy-to-use chain stitch machine designed for efficient tape attaching and seaming operations on light to medium-weight fabrics. Engineered with automation and operator convenience in mind, this model delivers consistent stitch quality while maximizing production efficiency in industrial sewing environments.

This machine is an “all included in the head” sewing system, with the direct drive motor and control panel fully integrated into the sewing head, eliminating the need for external control boxes. This compact design saves space, simplifies installation, and improves overall reliability.

Equipped with a built-in direct drive motor, an electric presser foot lifter, and an automatic tape cutter, the FB-N21A reduces manual handling and cycle time. Advanced sensor detection automatically controls key functions, ensuring smooth material flow, precise stitching, and reliable performance. An optional lint collector system further enhances cleanliness and workflow efficiency.

Key Features Include:

  • All-In-One Head Design: Direct drive motor and control panel are integrated into the sewing head for compact installation and simplified setup.
  • High-Speed Chain Stitch Performance: Delivers up to 6,500 stitches per minute for increased productivity.
  • Electric Presser Foot Lifter: Automatically lifts and lowers the presser foot when material is detected, improving efficiency and ease of use.
  • Automatic Tape Cutter: Cuts tape automatically after material detection for consistent, clean finishes.
  • Built-In Direct Drive Motor: Energy-saving, quiet, and smooth operation with excellent stitch stability.
  • Sensor-Controlled Functions: Enhances automation and reduces operator fatigue.
  • User-Friendly Design: Ideal for both skilled and semi-skilled operators.
  • Optional Lint Collector: Removes thread chains and material waste via air suction, keeping the work area clean.

Specifications & Details:

  • Model: FB-N21A
  • Fabric Weight: Light to Medium
  • Max. Sewing Speed: 6,500 stitches/min
  • Number of Needles: 2
  • Number of Threads: 4
  • Needle Gauge: 2 mm
  • Overedge Width: 4 mm
  • Stitch Length: 0.7 – 4.0 mm
  • Differential Feed Ratio: 0.7 – 1.5
  • Presser Foot Lift: 5.5 mm
  • Needle Type: DCx27 #11
  • Electric Presser Foot Lifter: Standard
  • Tape Cutter: Standard
  • Lint Collector: Optional

*Ships unassembled FOB Japan
