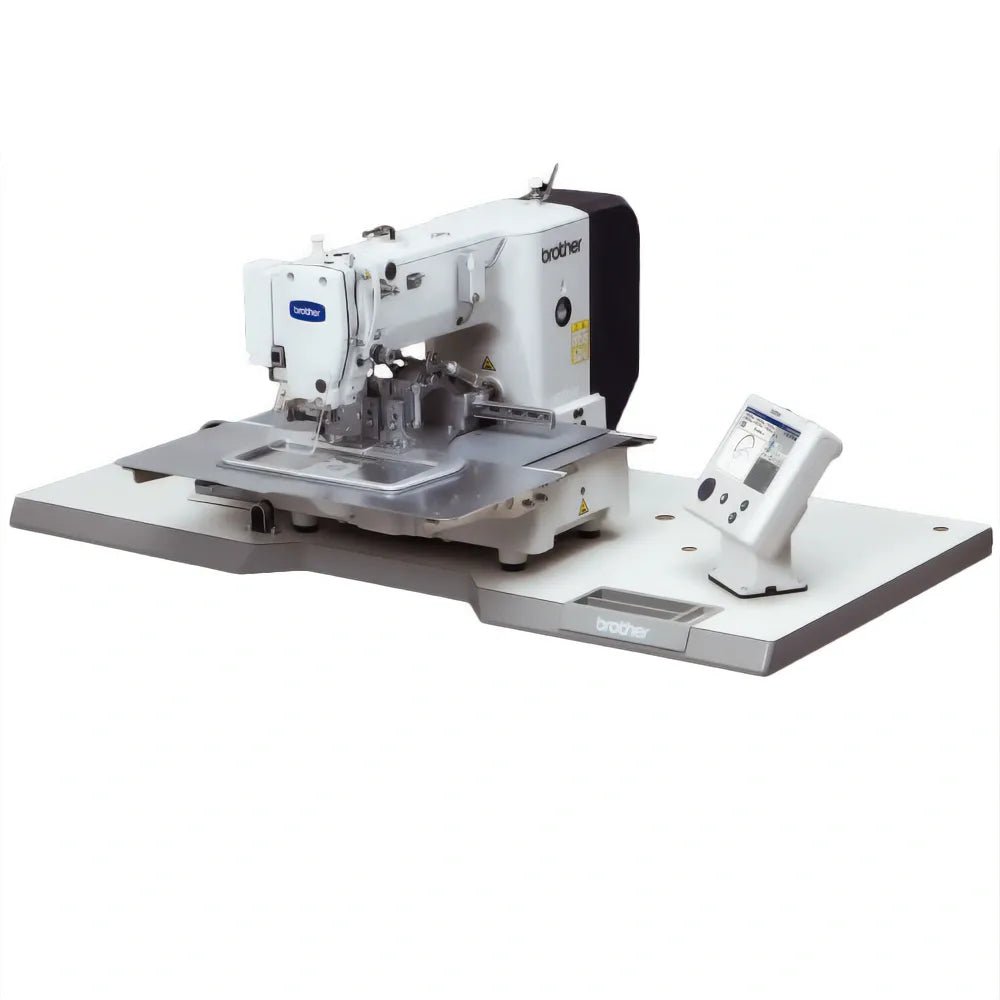

Brother BAS311H07A2C201302 Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

The Brother BAS-311H-07A is a high-precision, programmable pattern sewing machine engineered for consistent, professional-grade results in industrial and small-batch production environments. Built for durability and accuracy, it delivers reliable stitch quality on medium to heavy materials while reducing operator variability and production time.

Powered by Brother’s direct-drive motor, the BAS-311H-07A offers smooth, quiet operation with excellent needle penetration and stitch control. Its programmable pattern system allows users to store and repeat sewing patterns with precision—making it ideal for applications where repeatability, accuracy, and efficiency are critical.

This model is well-suited for manufacturers, repair shops, and advanced sewing operations producing items such as upholstery components, straps, bags, automotive interiors, technical textiles, and reinforced seams.

Key Features Include:

• Programmable Pattern Sewing: Stores up to 999 sewing programs with 20,000 stitches per program.

• High-Speed Performance: Maximum sewing speed of up to 2,800 stitches per minute.

• Precision Feed System: Intermittent feed driven by pulse motor for accurate material control.

• Sewing Area: Maximum sewing area of 150 × 100 mm.

• Work Clamp System: Pulse motor drive with up to 25 mm lift.

• Two-Step Integrated Work Clamp: Ensures stable fabric positioning.

• Automatic Functions: Includes thread wiper, automatic thread trimmer, digital tension, and thread breakage detection as standard.

• High-Efficiency Motor: 550W AC servo motor for powerful and energy-saving operation.

• Data Storage: Internal flash memory with optional external memory expansion.

• Heavy-Duty Construction: Machine head approx. 88 kg for stability and durability.

Specifications:

• Model: Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

• Sewing Speed: Up to 2,800 stitches/min (top-class high speed)

• Sewing Area (X × Y): 150 mm × 100 mm

• Stitch Length: 0.05–12.7 mm

• Maximum Stitches per Program: 20,000

• Internal Memory: 512 data items + SD card external memory support

• Cycle Programs: 30

• Motor: AC servo motor, 550 W

• Feed Mechanism: Pulse motor drive / intermittent feed

• Thread Control: Digital tension + thread breakage detector standard

• LCD Display: 7-inch touch panel for programming

• Power Source: Single-phase (100 V / 220 V), three-phase (220 V / 380 V / 400 V) (transformer may be required for some voltages)

• Air Pressure Requirement: 0.5 MPa, 1.8 L/min

• Machine Head Weight: ~88 kg (~194 lbs)

• Control Box Weight: ~9 kg (~20 lbs)

• Operation Panel Weight: ~0.4–0.8 kg (~.88–1.8 lbs) depending on region

Ideal For:

• Commercial sewing and small-batch manufacturing

• Upholstery, automotive interiors, and technical textiles

• Reinforced stitching, patterns, tacking, and specialty seams

• Shops and production lines requiring high throughput and repeatability

The Brother BAS311H07A2C201302 is a robust, dependable solution for businesses that demand professional performance and precision in pattern sewing. With its combination of speed, durability, and programmable flexibility, it will help streamline production and elevate stitch quality across a wide range of industrial sewing applications.

Includes: sewing head, programming panel, stand, table, and standard clamping Ships Unassembled - FOB Japan
