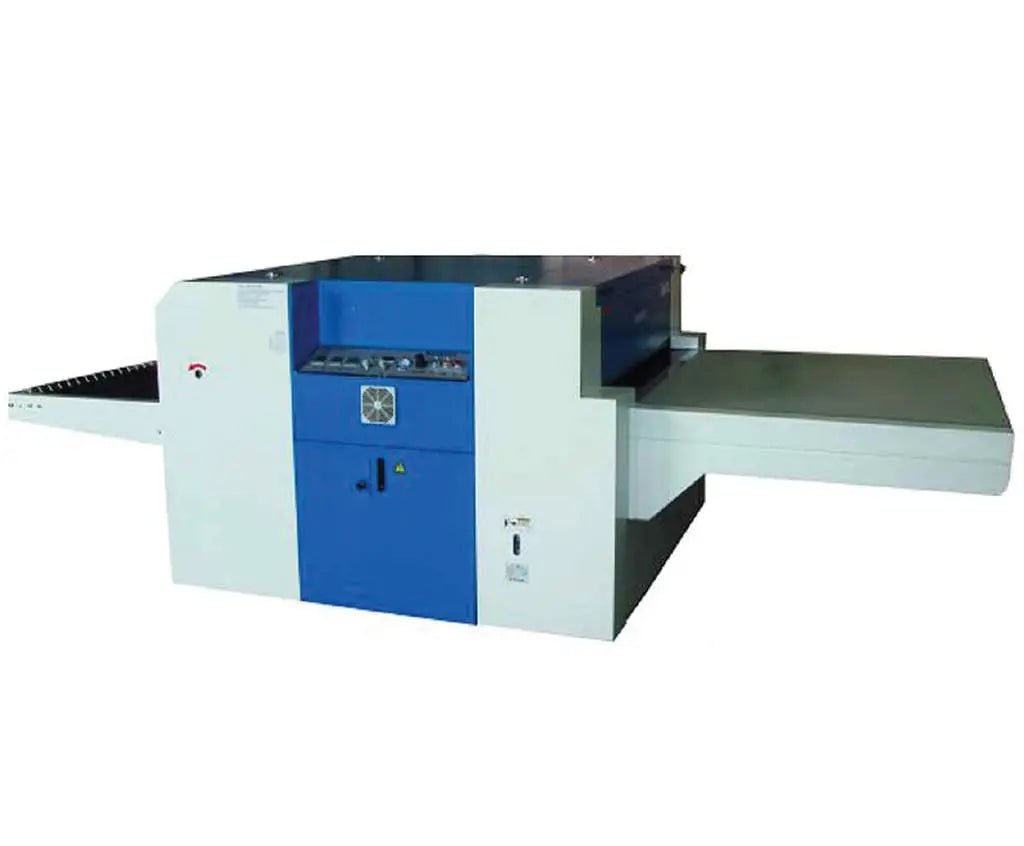

Hashima HP-1200LS Fusing Press Machine

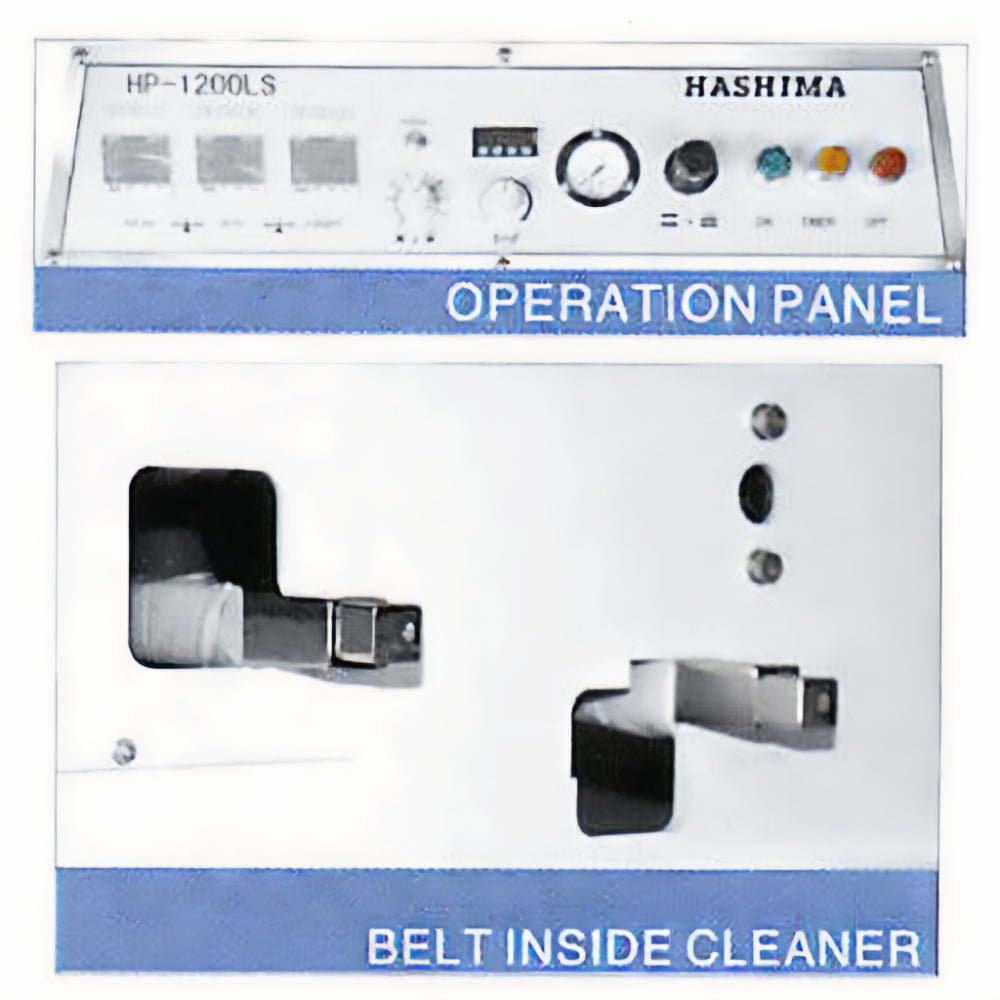

Hashima 1000LS and 1200LS operational panel

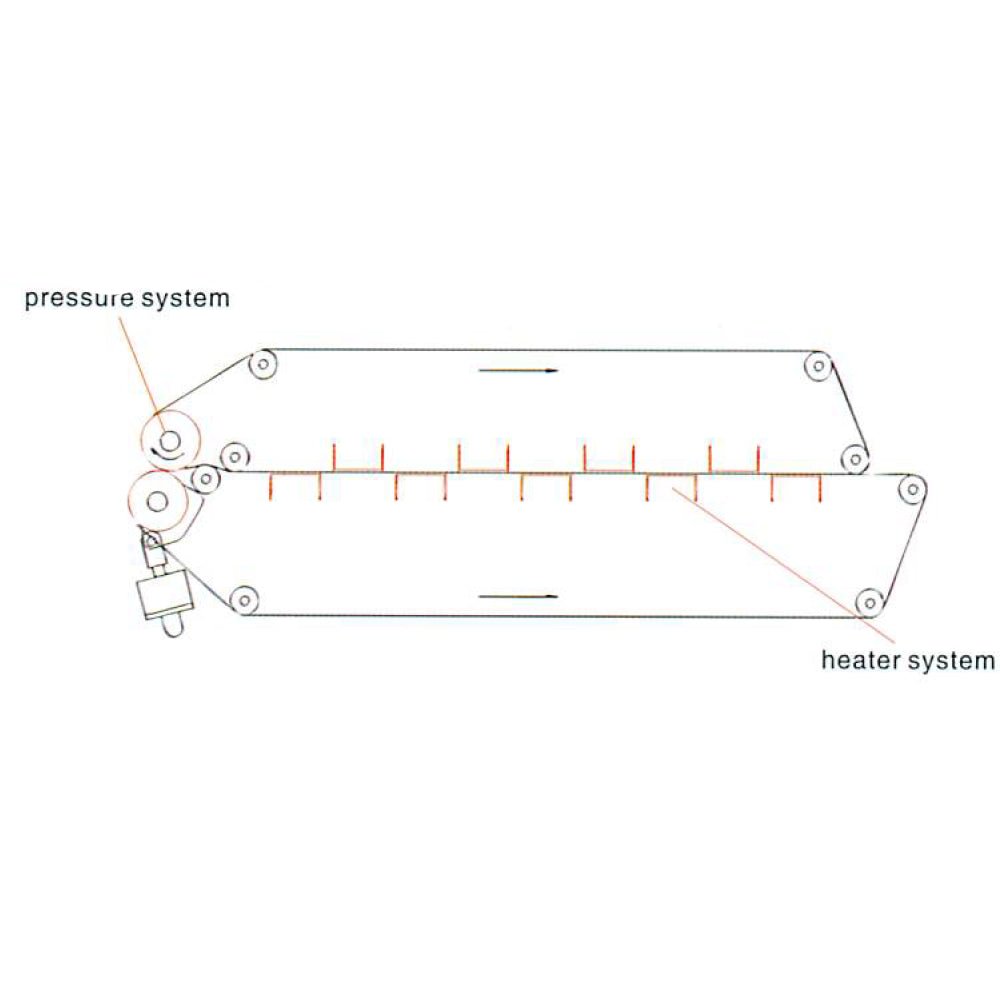

Hashima HP1000LS and 1200LS pressure and heater system diagram
Hashima HP-1200LS Fusing Press Machine
Hashima 1000LS and 1200LS operational panel
Hashima HP1000LS and 1200LS pressure and heater system diagram
Hashima

Hashima HP-1200LS - Straight Linear Fusing Press

$65,445.60 USD
Pricing Notice: Final pricing may vary based on configuration. To request a custom quote or explore available options and accessories, please contact our specialist, Rob Patterson.
Freight charges are calculated and collected at the time of shipment. Prices may exclude duty and applicable tariffs. Pricing shown applies to U.S. customers only; please contact customer service or request more information below for international or region-specific pricing.

* Please include your shipping location in the comment section.

Rob Patterson

Email +1 270-887-5066

Hashima HP-1200LS – Straight Linear Fusing Press
Industrial fusing press with a 1200 mm fusing width, seamless belt system, and high-pressure roller. Engineered for large-scale textile applications and reliable adhesion.

Key Features Include:

  • Seamless belt design provides durability and smooth operation.
  • High-pressure roller ensures even bonding and adhesion.
  • Cooling fan stabilizes fused materials immediately after processing.
  • Tension rollers placed at the back of the belts prevent fabric or interlining damage.
  • Belt wrapping prevention device offers extra control and reduces wear.
  • Dual belt cleaning system (surface cleaner + back belt cleaner) extends durability.
  • Wider 1200 mm fusing width for large-scale textile production.

Details and Specifications:

  • Power Supply: 3 Phase
  • Rated Output: 18.9 kW
  • Fusing Width: 1200 mm
  • Belt Speed: 12.7 m/min
  • Max Pressure: 54 N/cm² (5.5 kgf/cm²)
  • Max Temperature: 195 °C
  • Heating Time: 6.8–31 sec
  • Dimensions: 3838 (L) × 1684 (W) × 1027 (H) mm
  • Weight: 1400 kg

Additional Requirement: Air compressor

The Hashima HP-1200LS Straight Linear Fusing Press is a heavy-duty bonding solution for large-scale textile and garment production. Its seamless belt system ensures long-lasting performance, while the large pressurization roller delivers consistent, uniform pressure across the entire fabric width.

Equipped with a cooling fan system, the machine quickly stabilizes fused materials for a superior finish. The belt protection and dual cleaning system keep the belts in optimal condition, reducing downtime and extending service life.

With its 1200 mm fusing width, this model is ideal for handling bigger fabrics and bulk production, making it a reliable choice for manufacturers requiring efficiency, strength, and precision in their fusing operations.
