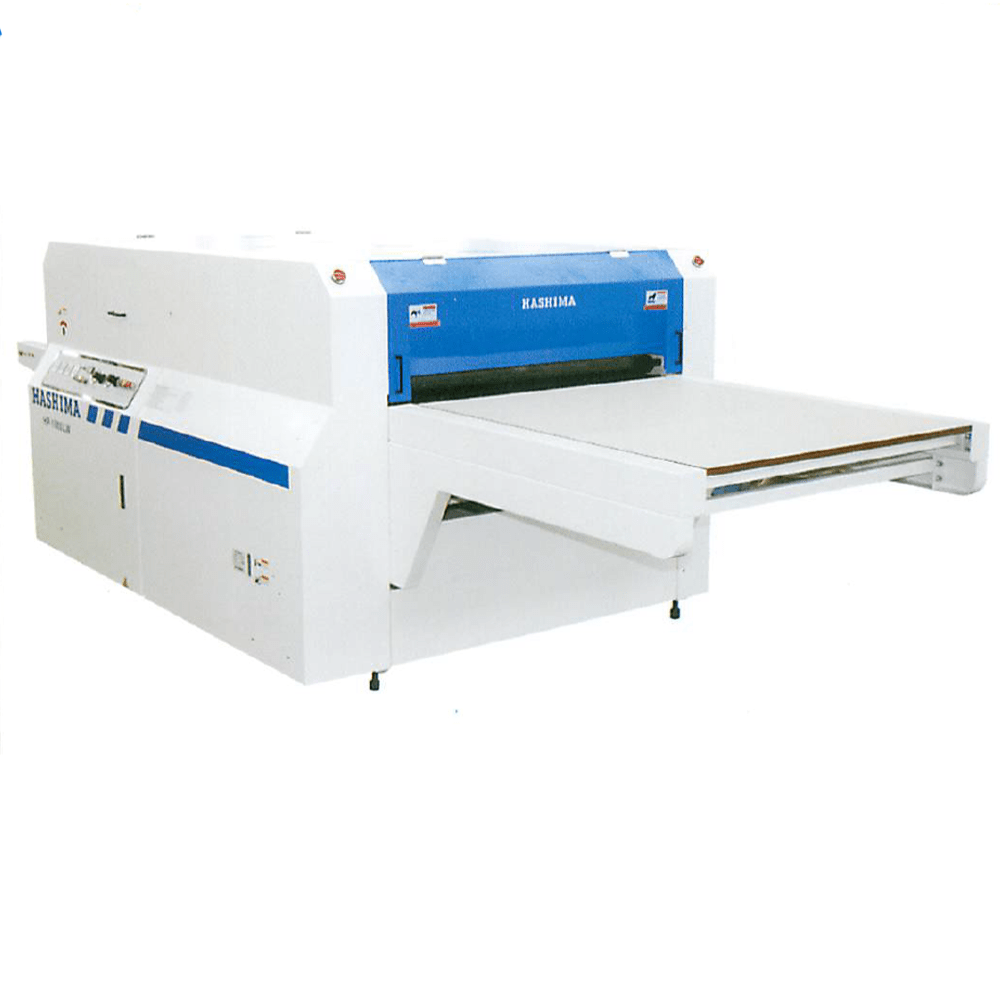

Large industrial HP-1000LW fusing press machine with 'HASHIMA' branding on a white background

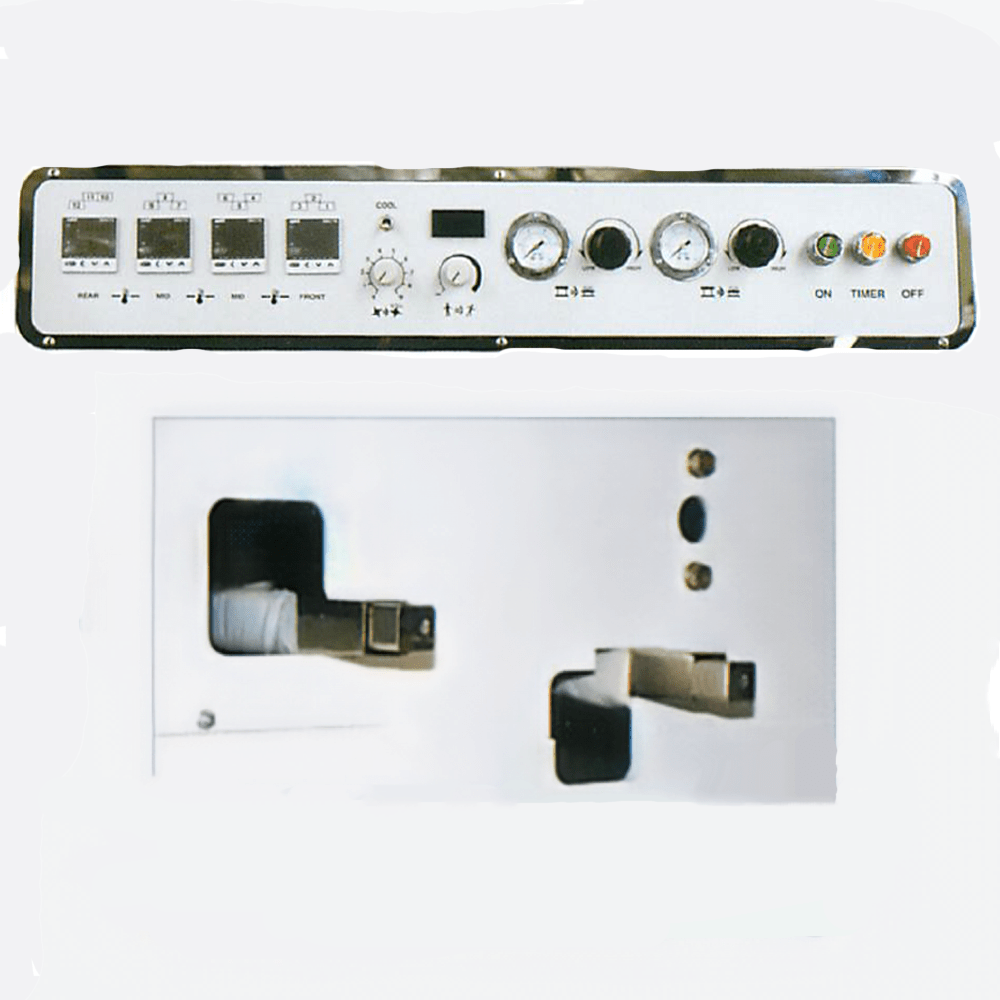

Control panel for a Hashima HP-1000LW fusing press with various buttons and displays on a white background

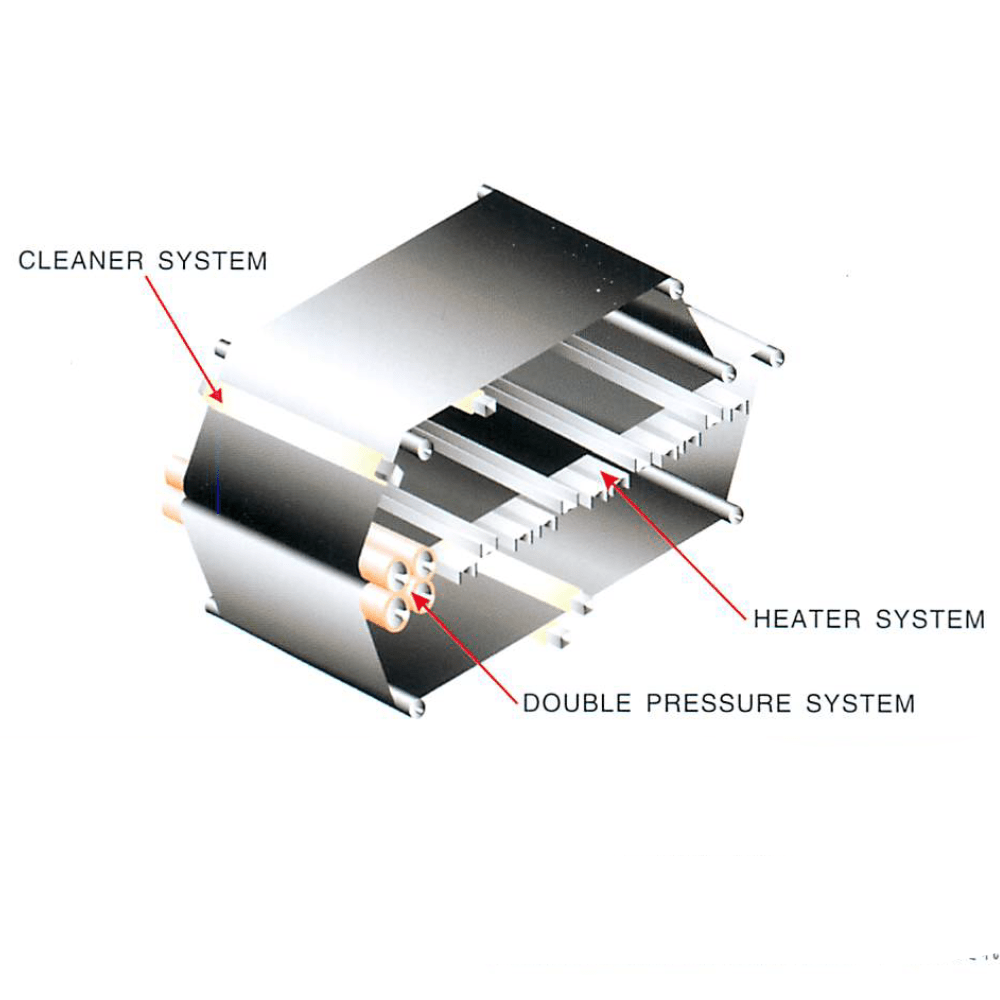

Diagram of a internal component of a Hashima HP-1000LW fusing press with labeled parts on a white background
Large industrial HP-1000LW fusing press machine with 'HASHIMA' branding on a white background
Control panel for a Hashima HP-1000LW fusing press with various buttons and displays on a white background
Diagram of a internal component of a Hashima HP-1000LW fusing press with labeled parts on a white background
Hashima

Hashima HP-1000LW - Double Pressure Straight Linear Fusing Press

$89,910.00 USD
Pricing Notice: Final pricing may vary based on configuration. To request a custom quote or explore available options and accessories, please contact our specialist, Rob Patterson.
Freight charges are calculated and collected at the time of shipment. Prices may exclude duty and applicable tariffs. Pricing shown applies to U.S. customers only; please contact customer service or request more information below for international or region-specific pricing.

* Please include your shipping location in the comment section.

Rob Patterson

Email +1 270-887-5066

Hashima HP-1000LW - Double Pressure Straight Linear Fusing Press
High-performance fusing press with a double pressure system, designed for strong adhesion, uniform bonding, and enhanced fabric protection. Ideal for thick materials, car seats, and heavy textiles.

Key features include:

  • Double Pressure System: Ensures higher pressure efficiency with two sets of rollers. The first roller spreads resin between fabric and interlining, while the second roller reinforces adhesion.
  • Customizable Pressure: Two independent pressure sets allow precise control based on fabric type.
  • Advanced Heating: Heater divided into four zones, each individually adjustable for optimal thermal efficiency.
  • Durable Belts: Tension rollers prevent belt damage from twisted fabrics or interlining.
  • Seamless Belt Design: Long-lasting, with improved wear resistance and belt cleaners on both sides for easy maintenance.
  • Cooling System: Rapid cooling of fused material improves finish and stability.
  • Flexible Applications: Adjustable heater positions and roller spacing for thick fabrics, car seat materials, or bolts of cloth.

Details and Specifications:

  • Power Supply: 3 Phase
  • Heater Output (Heater): 21.6 kW
  • Heater Output (Motor): 705 W
  • Max Temperature: 195 °C
  • Max Pressure: 5 kgf/cm²
  • Max Belt Speed: 12.7 m/min
  • Pressing Time: 6.5–31 sec
  • Fusing Width: 1000 mm
  • Dimensions: 4327 × 1666 × 1255 mm
  • Weight: 1500 kg (3307 lbs)
  • Additional Requirement: Air compressor

The Hashima HP-1000LW Double Pressure Straight Linear Fusing Press is engineered for professional garment production where strong, consistent adhesion is required. Its innovative double pressure system applies precise force in two stages: the first roller evenly spreads resin between the fabric and interlining, while the second roller enhances adhesion, ensuring a superior bond without excessive compression.

Equipped with a four-zone heating system, each zone can be adjusted independently, providing exceptional thermal efficiency and adaptability to different fabrics. The tension roller system protects belts from damage caused by twisted fabrics or interlining, while dual belt cleaners maintain durability and consistent performance.

With a fusing width of 1000 mm, adjustable heating positions, and customizable roller spacing, the HP-1000LW is ideal for thick materials, car seat upholstery, and bulk textile bonding. A built-in cooling system ensures immediate stabilization of fused fabrics, guaranteeing a professional finish every time.

This model combines high productivity, long-lasting belt performance, and flexibility, making it a reliable solution for modern garment and textile manufacturing operations.
