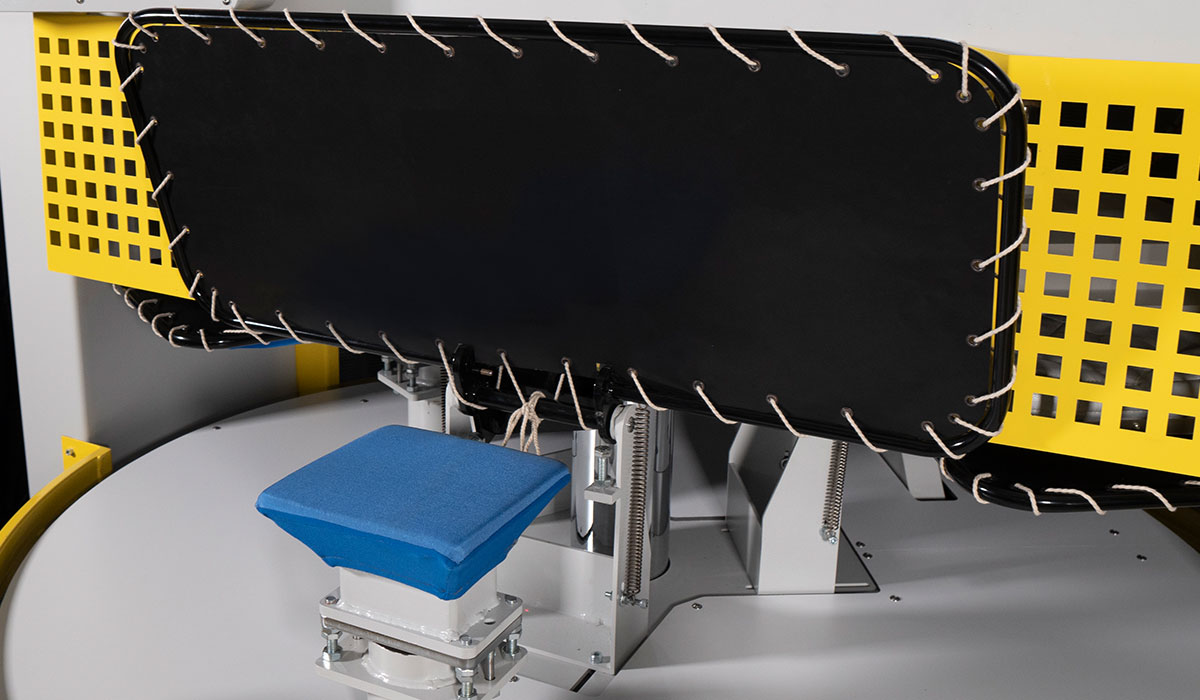

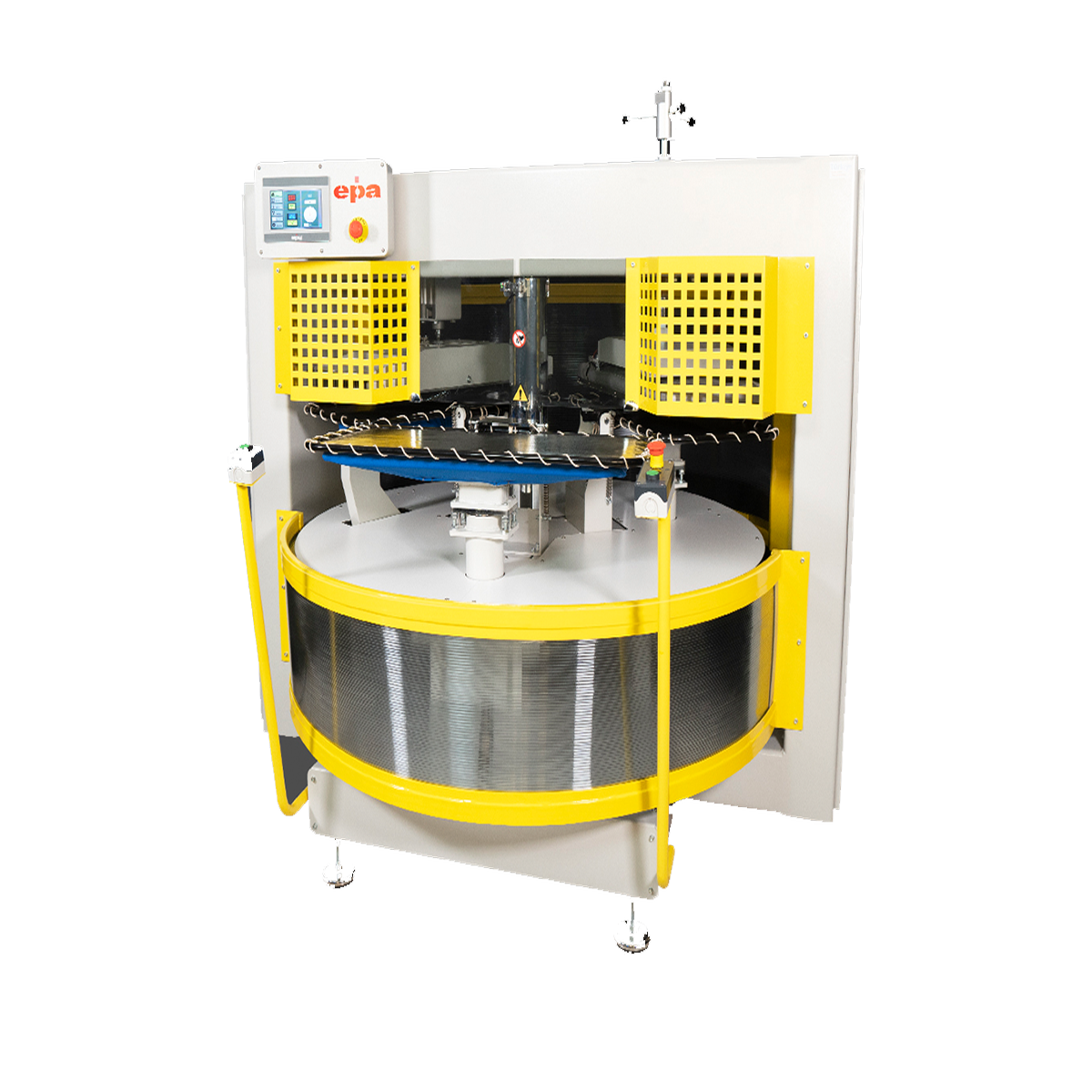

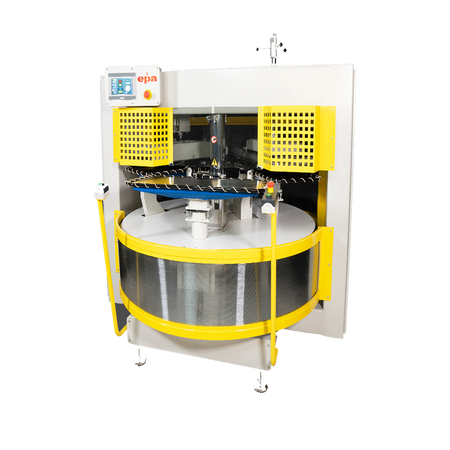

The EPA 744 features three modular vacuum ironing stations (800x300mm max area) paired with an air cooling unit to lock bonded materials instantly.
Key Features
- Designed for use in all bonding applications
- Has 3 easy to change ironing units with vacuum
- Vacuum on-off system in loading and unloading
- Max 800 x 300mm working area
- Homogeneous heat distribution thanks to the sensitive heating system
- Excellent adhesion thanks to the air cooling unit

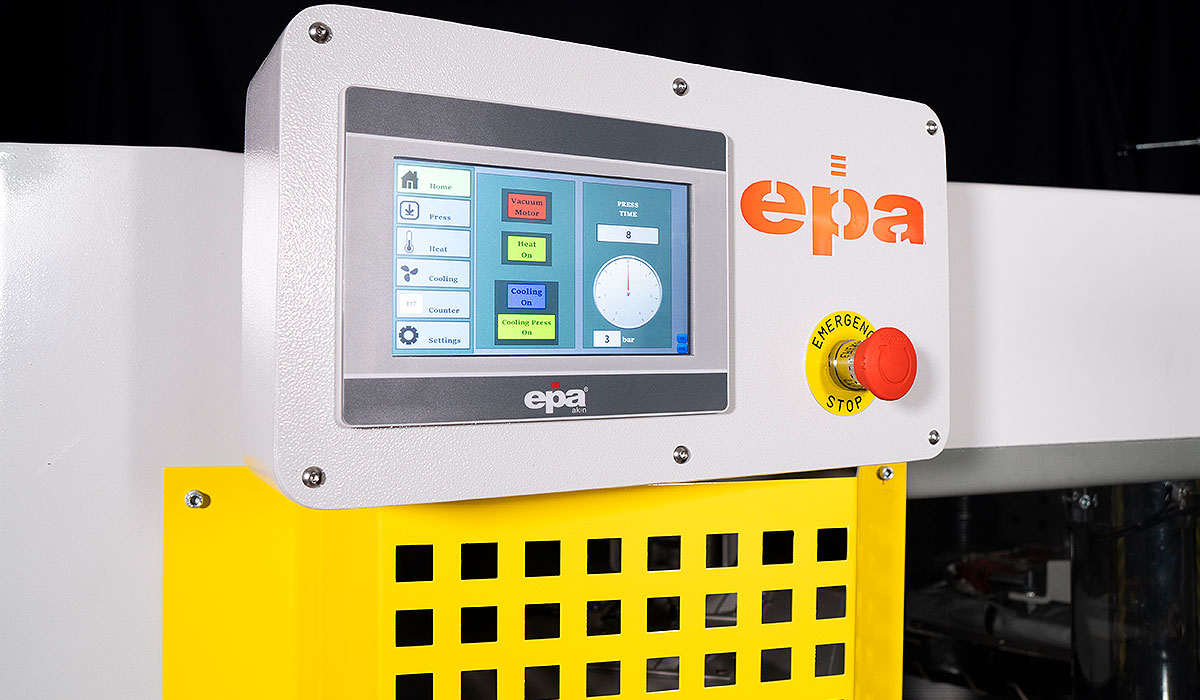

- Automatic pressure and time setting via digital display
- Precisely adjustable PLC controlled thermostats and environmentally friendly heat insulation
- Self vacuum motor system and ability to be connected to central vacuum
- Adjustable pressure stroke setting
- Wide selection of molds
- High strength long lasting ironing zone coatings
- All kinds of safety precautions have been taken for the operator
- The machine has CE certificate
Specifications
- Dimensions 2060 x 1800 x 1850 mm
- Weight 820 kg
- Electricity 380-400 V
- Power 4.800 kW
- Capacity - pcs/hr
- Compressed Air 6-8 bar
- Air Consumption 70 nl/min
