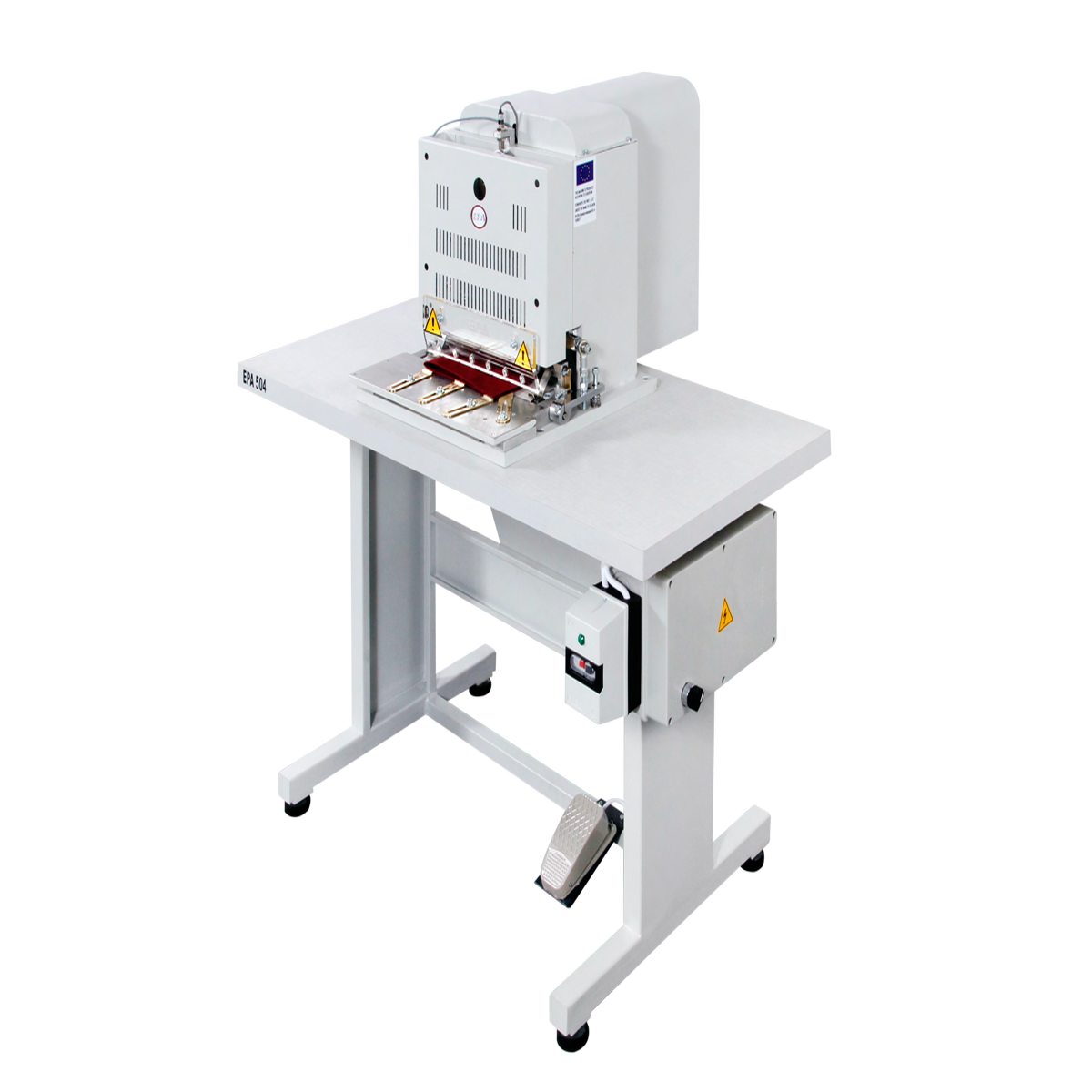

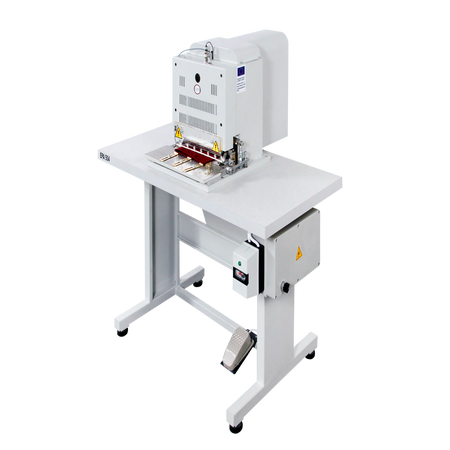

The EPA 504 Collar Cutter provides rapid, standardized cutting of shirt collars prior to attachment. Featuring an adjustable knife system capable of navigating various collar curves, this machine increases assembly efficiency while delivering uniform cuts across all production runs. It includes an energy-saving motor, integrated brake mechanism, automatic air cleaning, and advanced safety systems.
Key Features
- Provides fast and standard collar cut

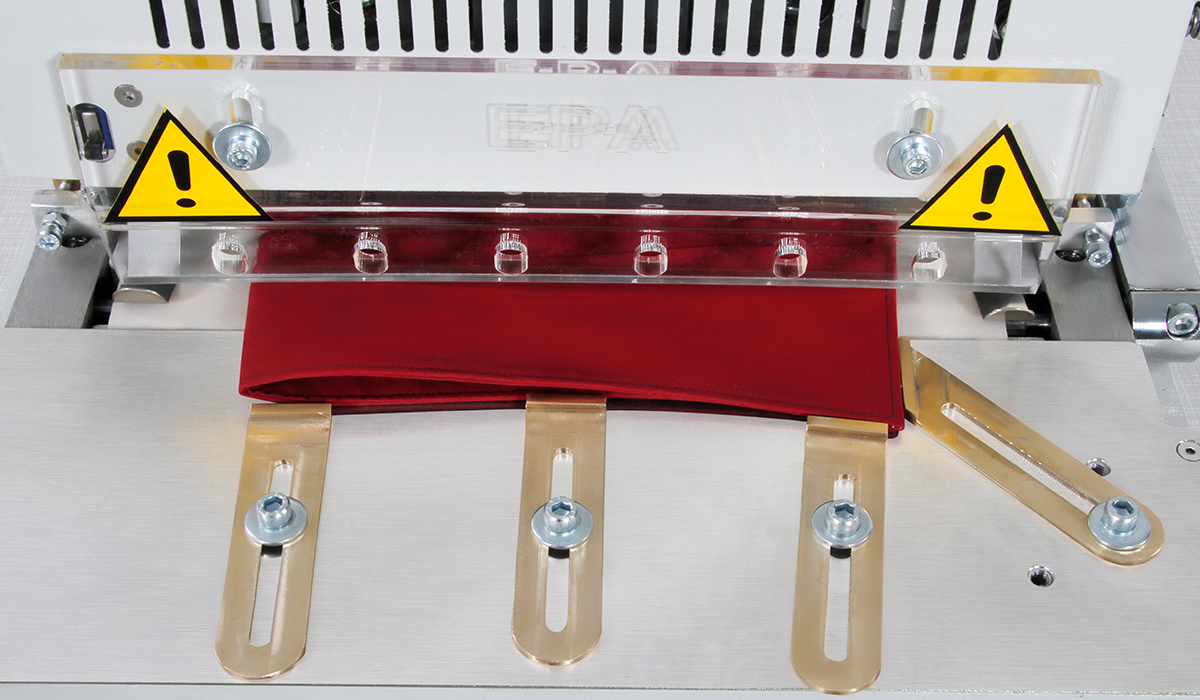

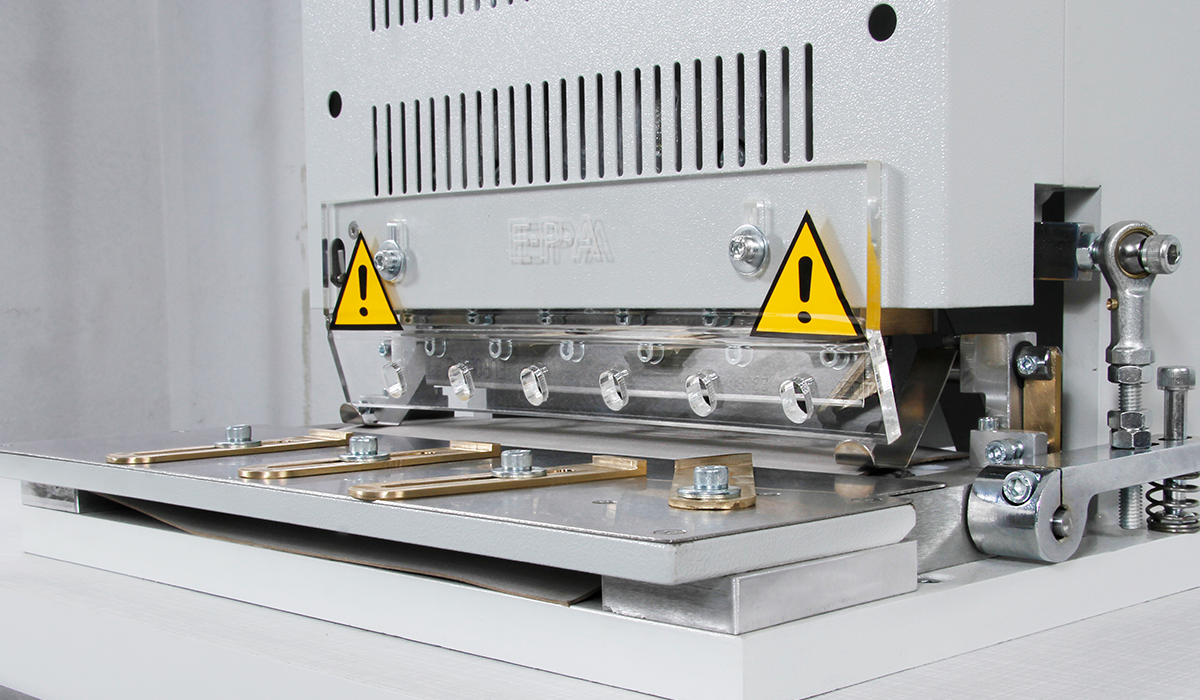

- Perfectly adjustable knife system for all kinds of collar curves
- Collar Cutter accelerates process before attaching to the cummerbund
- Provides standard manufacture of shirt collars
- High-strength, long-lasting, special alloy blade
- Collar Cutter has brake system for easy operation
- Energy-saving engine operating system
- Automatic air cleaning system
- Advanced security mechanism
- A number of safety precautions protect the operator
- Collar Cutter has a CE certificate
Specifications
- Dimensions 725 x 1075 x 1155 mm
- Weight 135 kg
- Electricity 380 V
- Power 0.7 kW
- Capacity 360 pcs/hr
- Compressed Air - bar
- Air Consumption - nl/min
