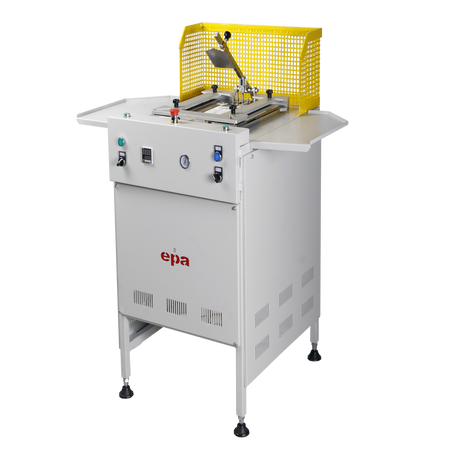

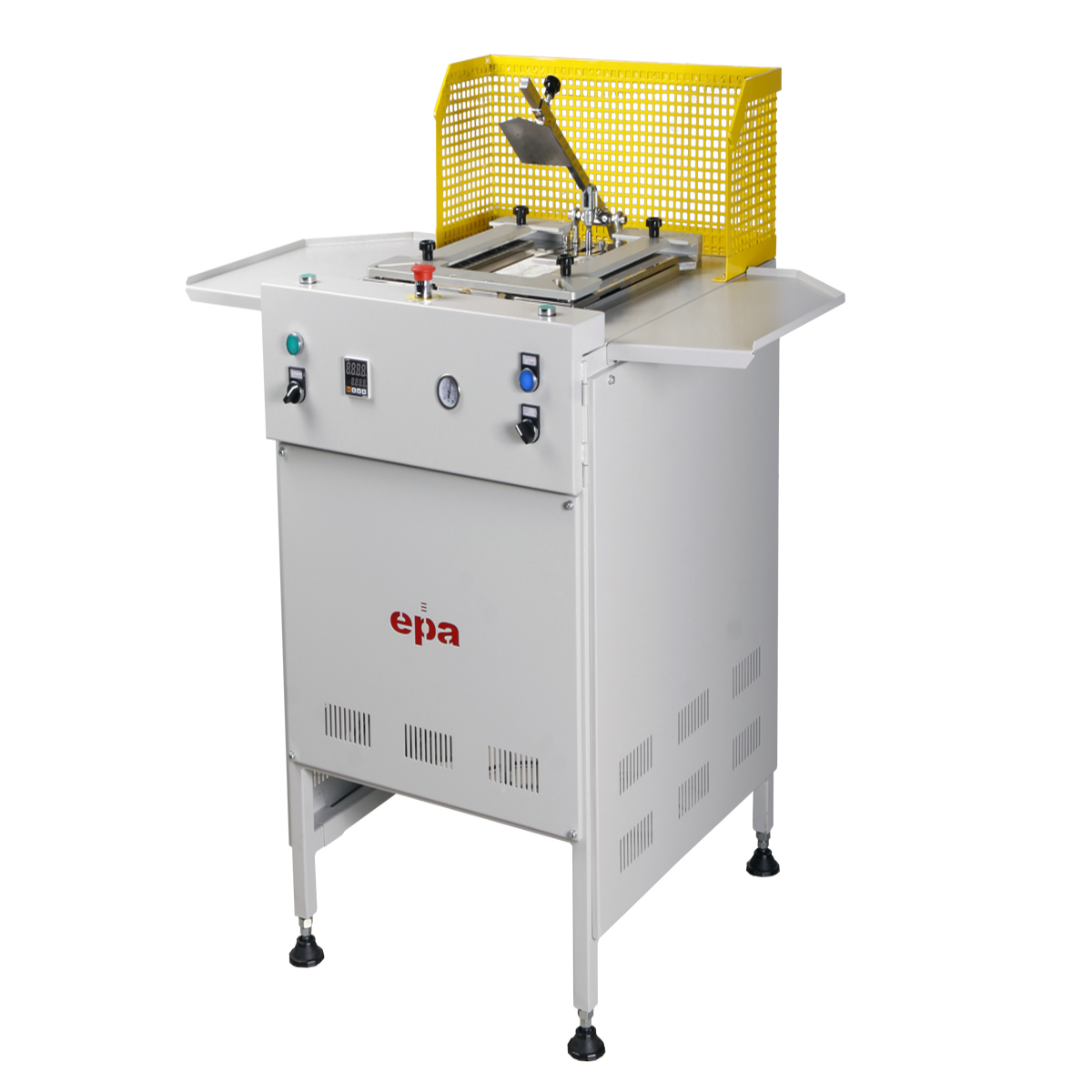

The EPA 207B Steam Pocket Creasing Machine prepares pockets on both knitted and woven fabrics for sewing through precise steam pressing. Its versatile mould system allows for quick size transitions, maintaining high output quality without deforming delicate textiles. Equipped with a PLC-controlled digital interface, smart fault diagnostics, and hourly production reporting, it can operate via an external steam supply or an optional integrated boiler.
Key Features
- Prepares the pockets made of knitted and woven fabrics for sewing by ironing..
- Optional: irons woven and knitted veils and prepares them for sewing.
- It allows you to get fast and standard products in production with its wide mold options Easy and fast mold changing system It can be connected to the external steam system.
- Optional: Integrated steam boiler
- Easy to use thanks to the digital display
- Adjustable steam and ironing time
- Hourly and daily production report can be obtained from the screen.
- Thanks to the smart fault finding system, the faults in the machine are detected on the screen.
- Thanks to the PLC controlled adjustable temperature control, perfect ironing quality is achieved by providing perfect adaptation to all kinds of fabrics.
- The machine is PLC controlled.
- All kinds of safety precautions for the operator have been taken on the machine.
- The machine has CE certificate.
Specifications
- Dimensions 800 x 1105 x 1110 mm
- Weight 140 kg
- Electricity 220 V
- Power 1 kW
- Capacity 200 pcs/hr
- Compressed Air 6 bar
- Air Consumption 35 nl/min
