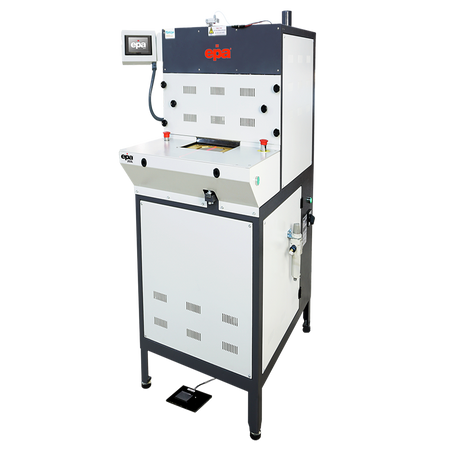

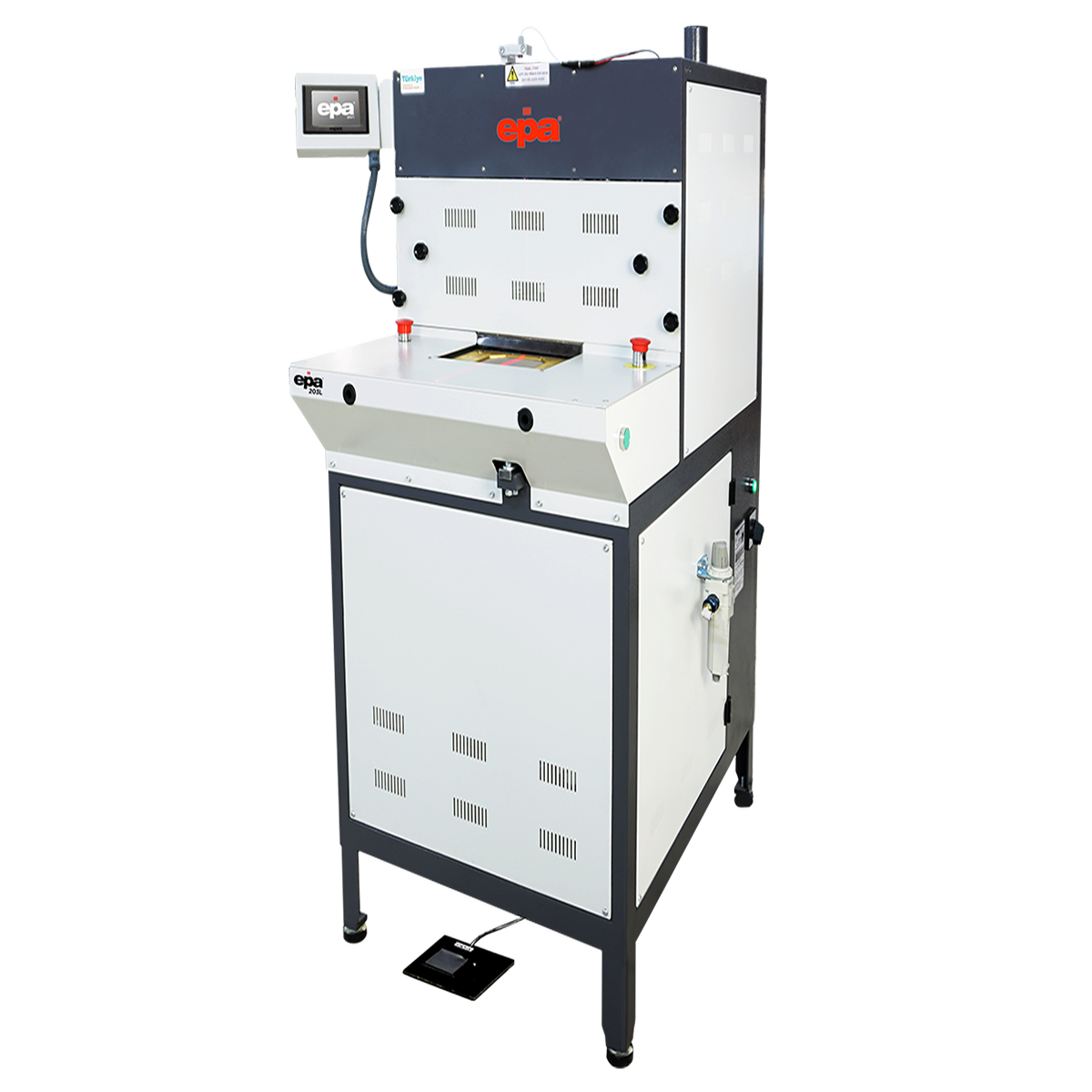

The EPA 203PL Pocket Creasing Machine irons and creases pockets made of both woven and knitted fabrics to custom sizes. Engineered to produce sharp, uniform edges on angular pocket designs, it easily processes triangle, square, and yoke label folds through quickly interchangeable molds. Equipped with a laser attachment for line tracking on striped fabrics, an oil-free operational system, and an automatic stacking mechanism, the EPA 203PL ensures standardized, high-speed production. Controlled via a user-friendly digital PLC screen, it features computerized heat management for precise thermal control and energy savings, smart fault diagnostics, and comprehensive operator safety safeguards.
Key Features
- Woven & Knitted Fabric Compatibility: Irons and creases pockets made from both woven and knitted fabrics to exact desired dimensions.
- Angular Pocket Precision: Delivers excellent results on angular pocket styles, as well as triangle, square, and yoke label folds via interchangeable molds.

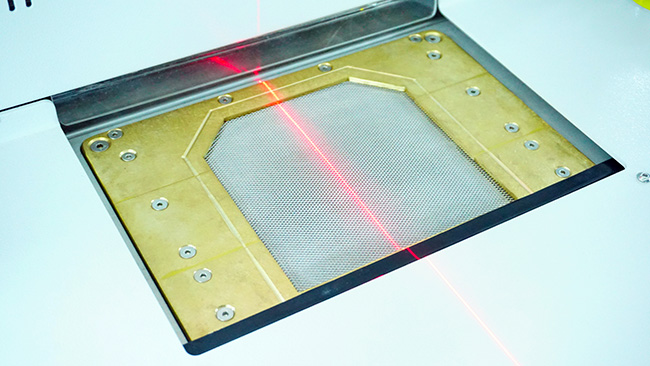

- Laser Line Guidance: Integrated laser attachment allows precise pattern tracing for accurate alignment on striped fabrics.
- Oil-Free System & Automatic Stacker: Features an oil-free working mechanism and an automated stacking system for efficient post-process handling.

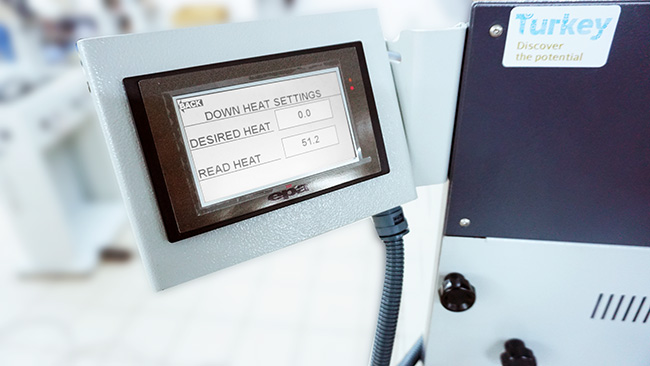

- Smart PLC Digital Control: Digital screen provides real-time hourly and daily production reports along with automated fault diagnostic alerts.
- Energy-Efficient Heat Management: Computerized temperature control and specialized resistors deliver exact heat adjustments while saving energy.
- Operator Safety Standards: Equipped with full operator safety protection mechanisms and PLC system control.
Specifications
- Dimensions: 950 x 1030 x 1450
- Weight: 265 kg
- Electricity: 380 V
- Power: 7 kW
- Capacity: 300 pcs/hr
- Compressed Air: 6 bar
