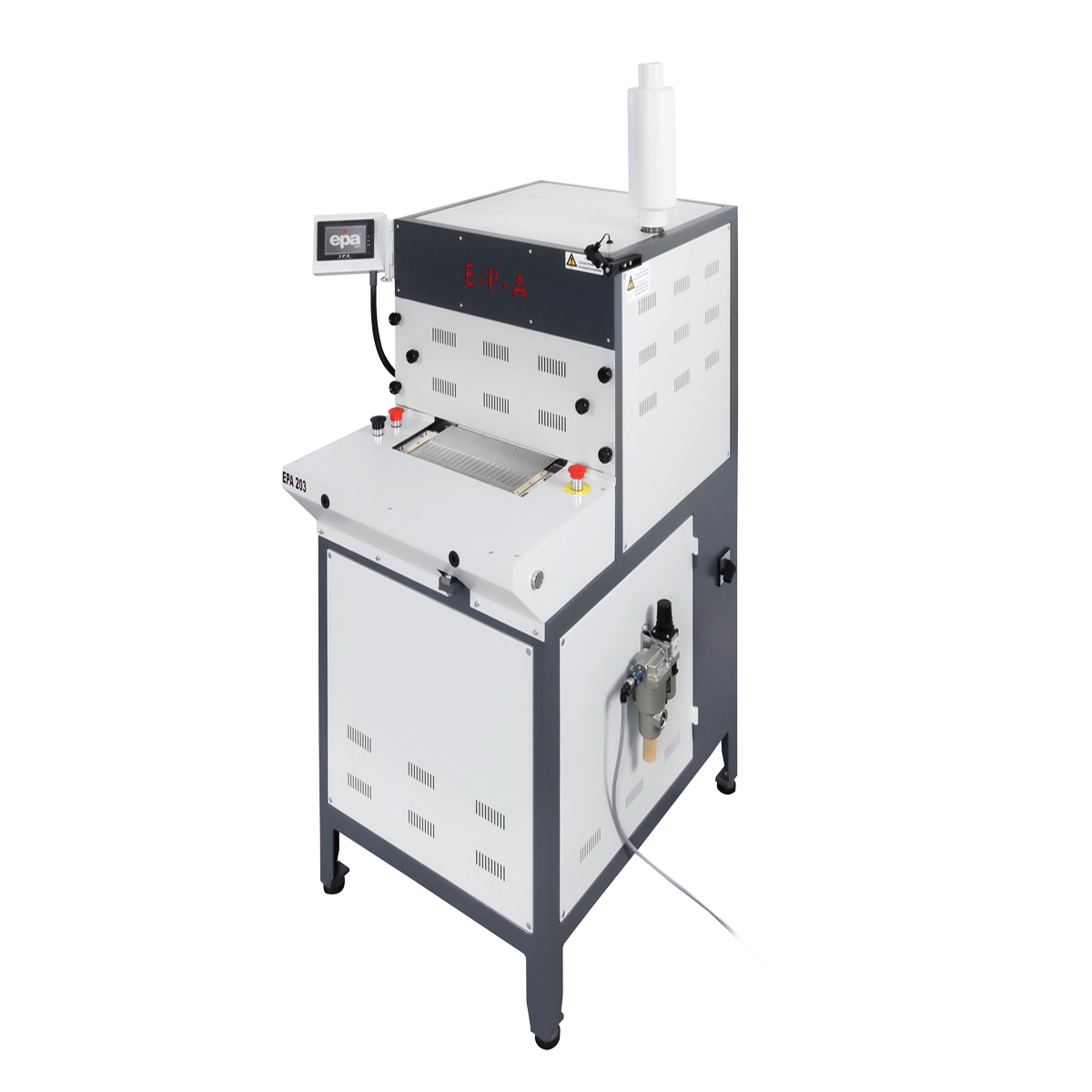

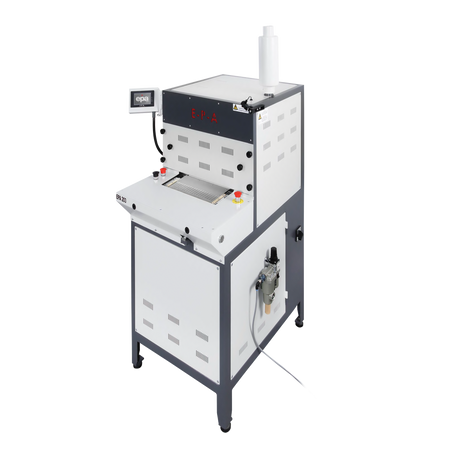

The EPA 203M irons cuffs using a universal mould system that accommodates all cuff styles without needing tool changes.
Key Features
- Cuff Shaping Machine perfectly irons shirt cuffs and prepares the cuffs to be worn on the shirt sleeves
- Adapts to all cuff styles and reduces the mould cost to zero by using a universal mould
- High vacuum motor installed inside the Cuff Shaping Machine
- Oil-free operation system

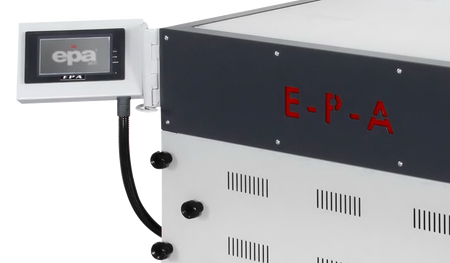

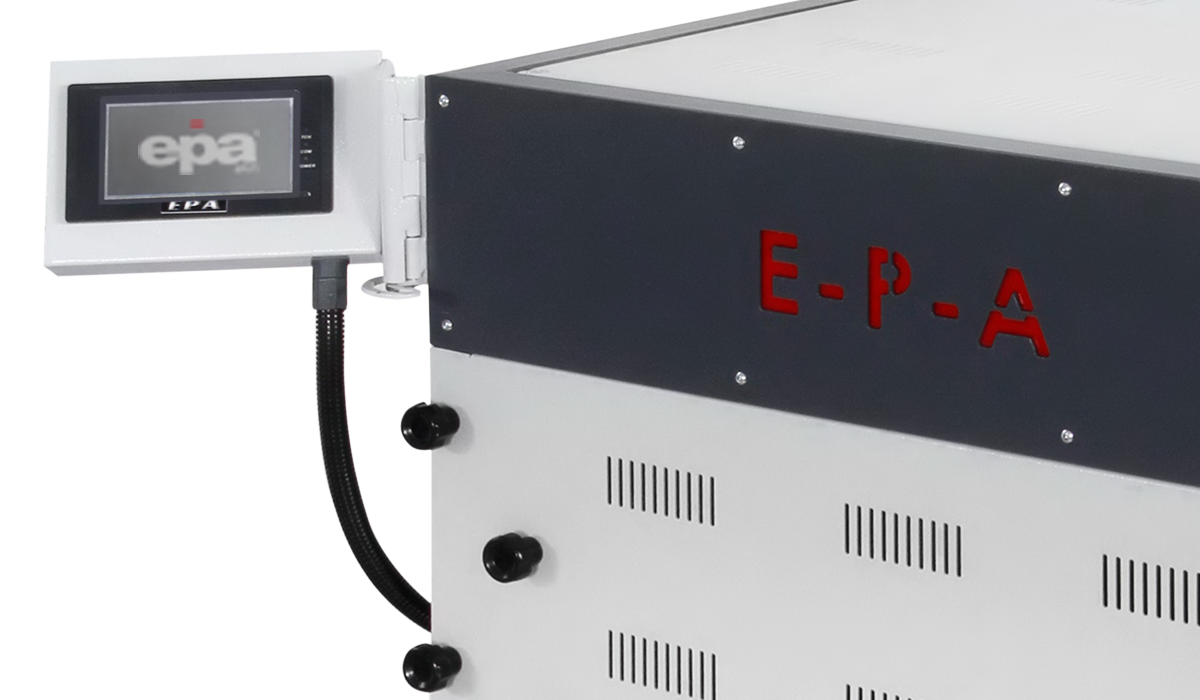

- Cuff Shaping Machine features an easy to use digital display
- Digital screen provides hourly and daily production repo
- Smart-fault notification system of Cuff Shaping Machine enables easy detection of machinery malfunctions, trackable using the screen
- Automatic stacking system
- Unique resistances and computerized temperature control system provides precise heat adjustment and energy savings
- Optional control unit of Cuff Shaping Machine adjusts the vacuum power for sensitive fabrics
- PLC (Programmable Logic Control) controlled machine
- A number of safety precautions protect the operator
- Cuff Shaping Machine has a CE certificate
Specifications
- Dimensions 950 x 1030 x 1450 mm
- Weight 270 kg
- Electricity 380 V
- Power 7 kW
- Capacity 360 pcs/hr
- Compressed Air 6 bar
- Air Consumption 45 nl/min
