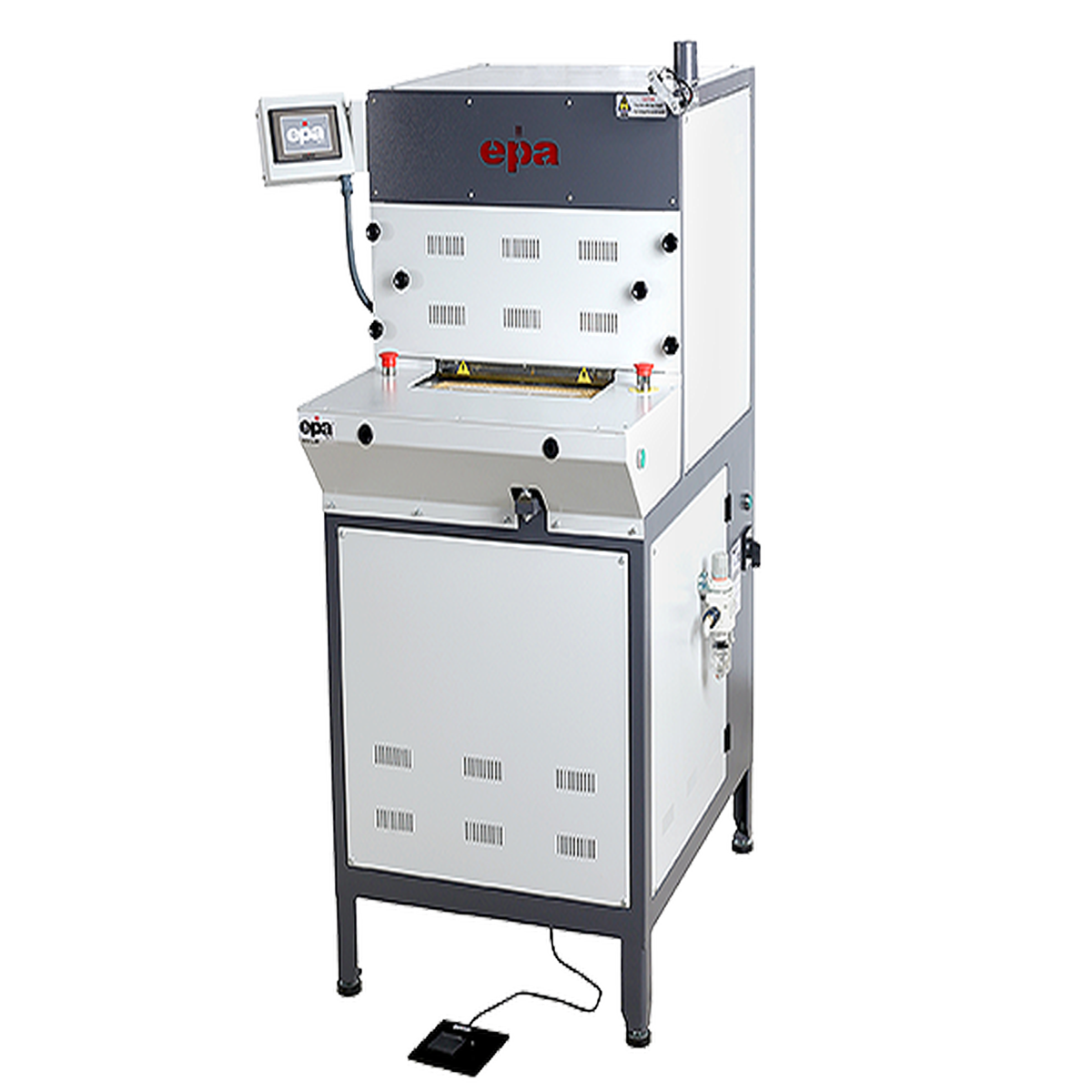

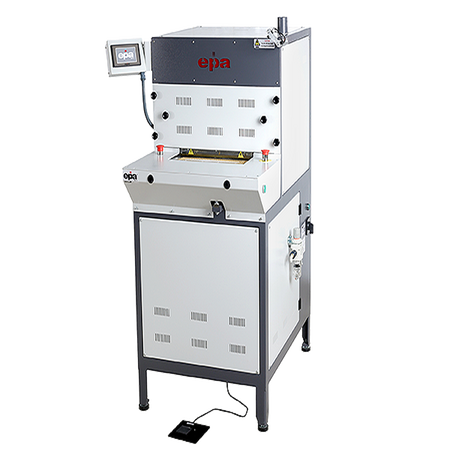

The EPA 203AP irons epaulettes and straps directly without requiring fabric reversal, speeding up shoulder strap production.
Key Features
- Epaulette/Strap Creasing Machine irons epaulettes and prepares them ready for sewing without the need of reversing.
- If needed also can iron reversed and sewed epaulettes/straps and makes them ready to be worn on shirts.
- Speeds up manufacturing and standardizes the production.

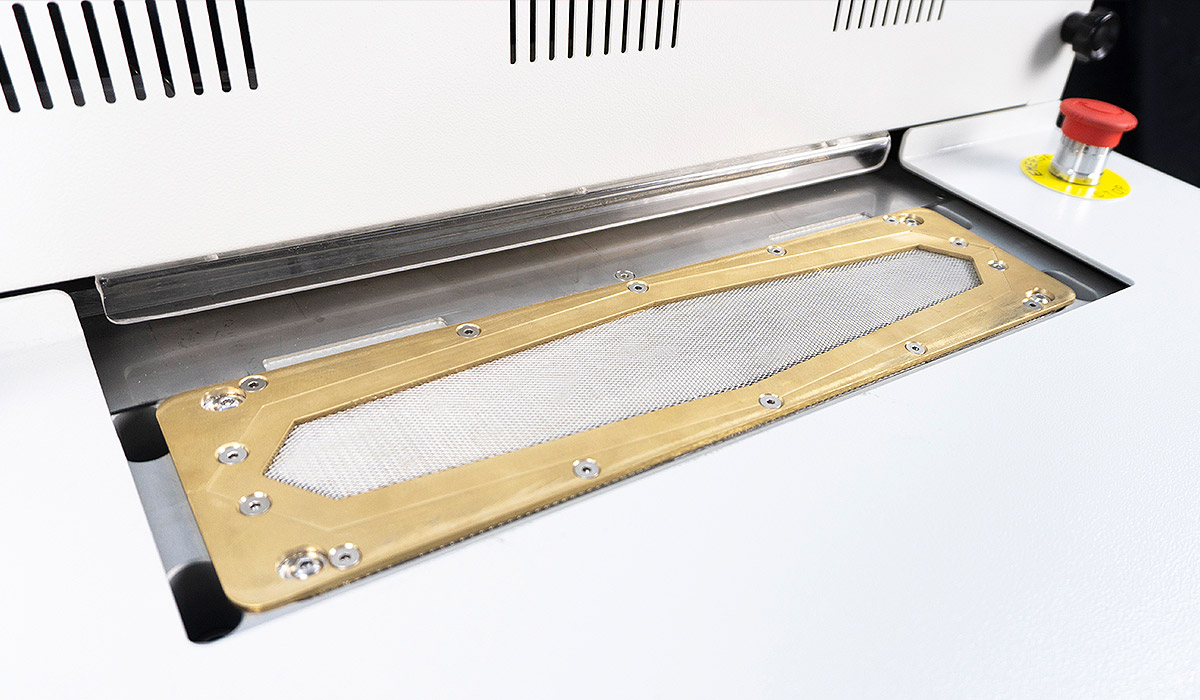

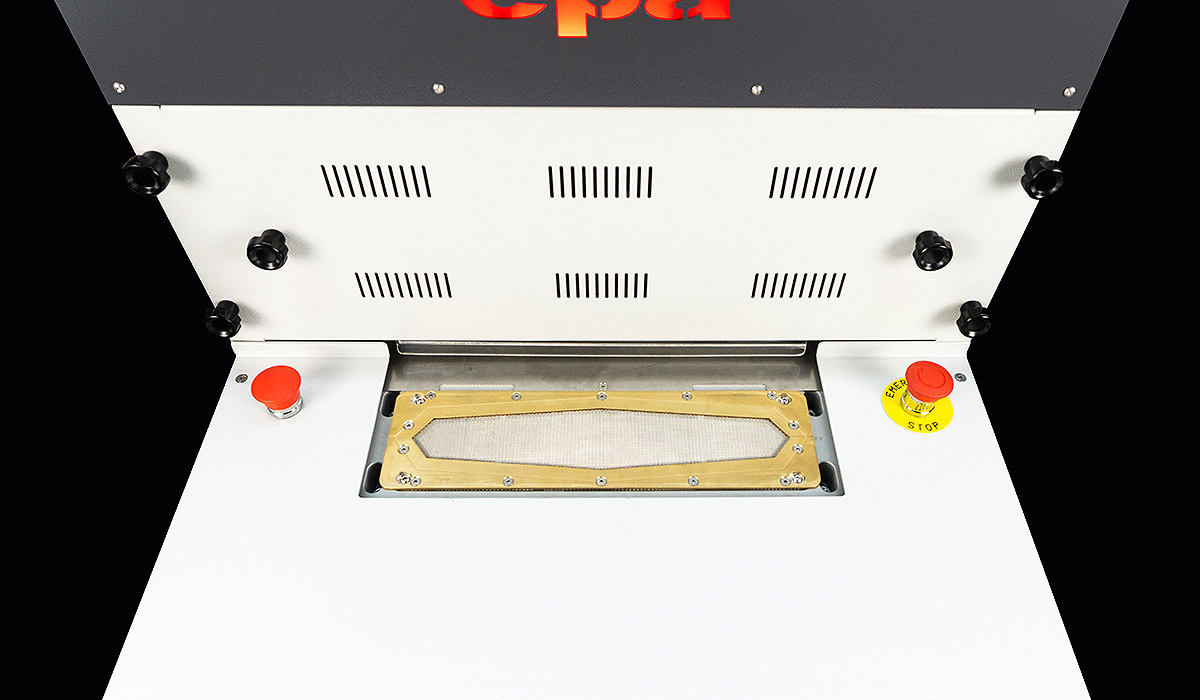

- By changing the moulds easily, can be used with all types of epaulettes other then curved types.
- Sleeve Placket Creasing Machine features an Oil-free operation system.
- Easy to use digital display.
- Digital screen provides hourly and daily production reports.
- Smart- fault notification system of Epaulette/Strap Creasing Machine enables easy detection of machinery malfunctions, trackable using the screen.
- Automatic stacking system.
- Unique resistances and computerized temperature control system of Epaulette/Strap Creasing Machine provides precise heat adjustment and energy savings.
- PLC (Programmable Logic Control) controlled machine.
- A number of safety precautions protect the operator.
- Machine has a CE certificate.
Specifications
- Dimensions 950 x 1030 x 1450 mm
- Weight 265 kg
- Electricity 380 V
- Power 7 kW
- Capacity 360 pcs/hr
- Compressed Air 6 bar
- Air Consumption 47 nl/min
